商品介紹
IES-C1080-L is an unmanaged Ethernet switch with 8x 10/100Base-TX ports. In addition, the operating temperature range from -40°C to 75°C can satisfy most operating environments. Therefore, the switch is one of the most reliable choices for Ethernet applications.
產品特色
- Supports 8x 10/100Base-TX
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- Broadcast storm protection for enhanced network stability
- IP40 protection
- -40 to 75°C operating temperature range
- DIN-Rail mounting enabled

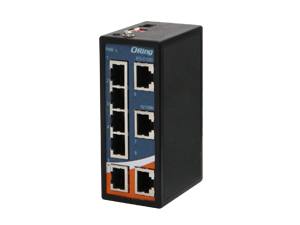

Industrial 8-port unmanaged Ethernet switch
實體連接埠 |
|---|
| 10/100Base-T(X) RJ45連接埠 | 8 |
LED 指示燈 |
|---|
| 電源指示燈（Power） | PWR |
| 10/100Base-T(X) RJ45連接埠指示燈 | LNK/ACT |
電源 |
|---|
| 耗電量（一般） | 3W |
| 電源輸入 | 9.6~60VDC/24VAC (18~30 VAC) on 2-pin terminal block |
物理特性 |
|---|
| 外殼 | IP-40 |
| Dimensions (mm) | 43.5 × 103 × 64 mm |
| 重量（克） | 186 g |
技術 |
|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control |
| MAC 表格 | 2K |
| 封包緩衝區大小 | 768 Kbits |
環境條件 |
|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -40 to 75°C (14 to 167°F) |
| 作業濕度 | 5% to 95% Non-condensing |
安規 |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| 震動 | IEC 60068-2-27 |
| 自由落體 | IEC 60068-2-31 |
| 振動 | IEC 60068-2-6 |
| 安全性 | EN 62368-1，UL 61010-1, UL 61010-2-201 |

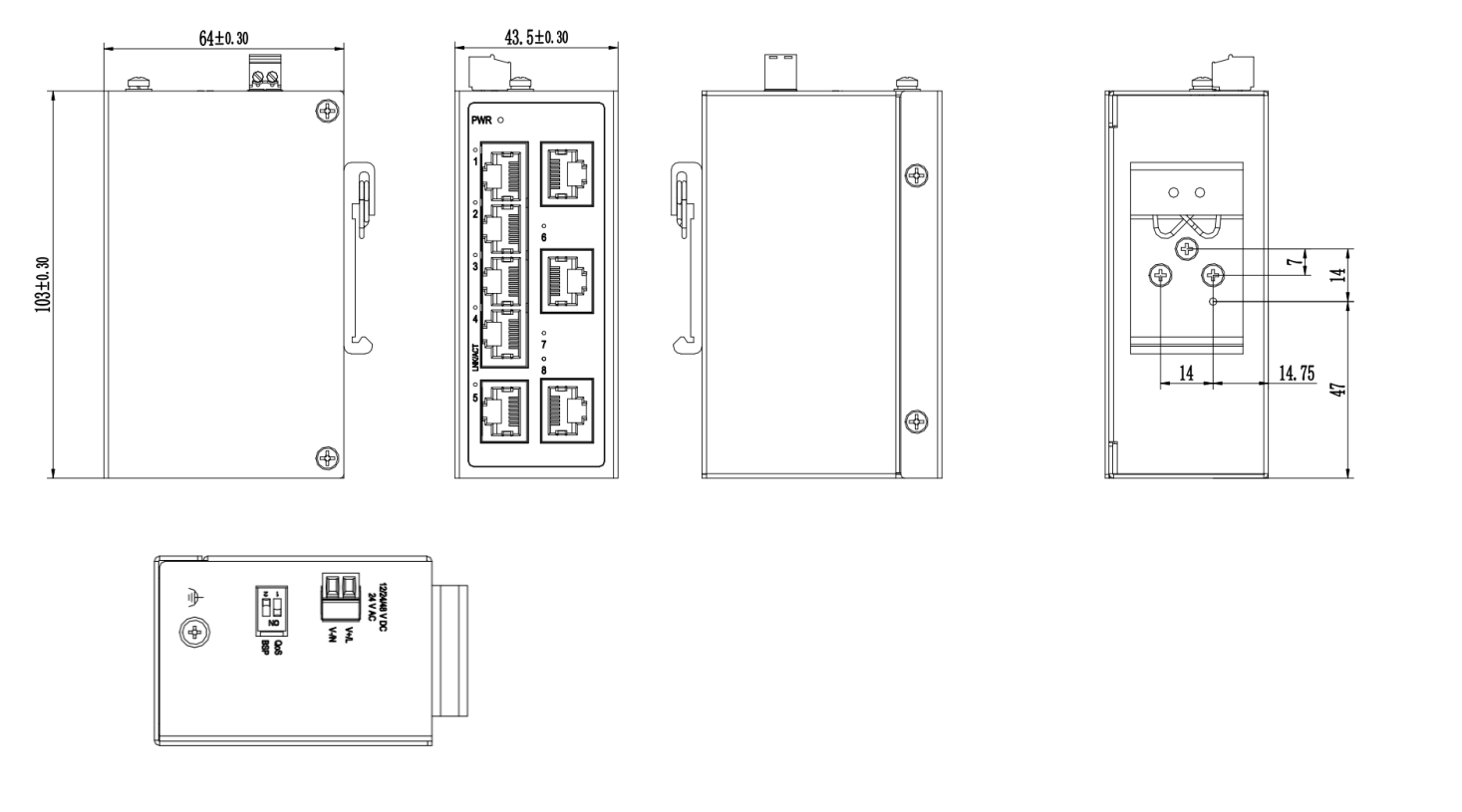

三視圖 |
|---|
 |
