商品介紹

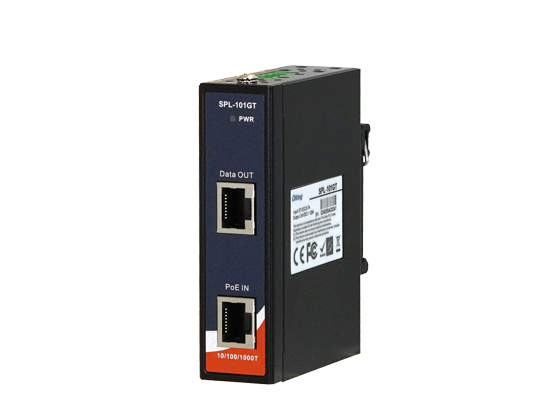

SPL-101GT is a high power PoE+ splitter for use in PoE systems. With Ethernet input (data + power) port and output (data only) port, SPL-101GT may split power from existing LAN cable and convert up to 24VDC/0.9A for power hungry applications such as wireless APs, security cameras and IP phones. The internal current limit, short-circuit and overload protection are implemented for use as a DC power supply.
產品特色
- Fully compliant with IEEE 802.3at standard
- Supports 10/100/1000Base-T(X) for PoE in and data out
- Power isolation and short circuit protection for power output
- Auto protection for over voltage power input
- Power outputs up to 21Watts
- IP30 protection
- DIN-rail and Wallmount design
Industrial 1-port Gigabit PoE Splitter
