Built to withstand harsh environments, ORing's VPN routers enable secure connection of distributed industrial infrastructure. With robust DIN-rail and EN50155 compliant 4G LTE cellular models, we enable encrypted remote access, provide industrial-grade firewalls, securely segment networks, and facilitate telemetry data aggregation.
IAR-142-4G
IEEE 802.11 b/g/n 4G LTE Cellular Router with 2x10/100Base-T(X)
商品介紹
IAR-142(+)-4G is a reliable IEEE 802.11 b/g/n WLAN VPN router with 2 ports 10/100Base-T(X) router where ETH1 for LAN and ETH2 for WAN. It supports 802.1X and MAC filter for security control. It could be configured to operate in 3 modes of routing function:Dynamic/Static IP route,PPPoE authentication,and Modem dialup. In the mode of Modem dialup, it support GPRS/3G/3.5G/LTE modem by internal 4G LTE module. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modems. Inaddition, IAR-142+-4G also provides P.D. feature on ETH1 which is fully compliant with IEEE802.3af PoE P.D. specification. This feature extends the layout up to 100 meters. Therefore, IAR-142+-4G is one of the best solution for applications of wireless communication.
產品特色
- High Speed Air Connectivity: WLAN interface support up to 150Mbps link speed
- Provide 2 port 10/100Base-T(X) port and 1 sim card slot
- 4G LTE Modem dial up included
- Provide HNAT enhance LAN to WAN routing performance
- Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
- Secured Management by HTTPs
- Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem/Dial Up
- IP table to prevent access from unauthorized IP address
- Support NAT Setting (Virtual Server , Port Trigger , DMZ , UPnP)
- Versatile modes & event alarm by e-mail
- 1KV isolation for PoE P.D. port of IAR-142+-4G
- Event Warning by Syslog, Email, SNMP Trap
- Rigid IP-30 housing design
- DIN-Rail and Wall-mount enabled
實體連接埠 | |
|---|---|
| 10/100Base-T(X) RJ45連接埠 | 2 |
行動網路介面 | |
|---|---|
| SIM卡插槽 | 1 |
| 行動網路標準 | GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA /LTE |
| 頻段選擇 | America(US grade) LTE: 1900(B2)/1700(B4)/850(B5)/700(B13)/700(B17)/1900(B25) MHz CDMA/EVDO rev. a/b: 800/1900 UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+: 850/900/1700/1900/2100 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz Europe(EU grade) LTE: 2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+: 800/850/900/1900/2100 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
| 天線接頭 | 2 x SMA Female |
LED 指示燈 | |
|---|---|
| WIFI（WLAN）指示燈 | 1 x LED, Green: WLAN Link /ACT |
| Power indicator | 3 x LEDs, PWR1(2)(PoE) Green On: Power is on and functioning Normally. |
| 10/100Base-T(X) RJ45連接埠指示燈 | 2 x LEDs, Green for port Link/Act at 100Mbps. |
電源 | |
|---|---|
| 耗電量（一般） | 3W |
| 備用輸入電源 | Dual DC inputs. 12-48VDC on 4-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present |
WLAN 介面 | |
|---|---|
| 天線接頭 | 1 x Reverse SMA Female |
| 調變 | IEEE802.11b: CCK/DQPSK/DBPSK IEEE802.11g: OFDM IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| 頻段 | America / FCC: 2.412~2.462 GHz (11 channels ) Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) |
| 傳輸率 | 802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n(40MHz): UP to 150 Mbps |
| 發射功率 | 802.11b: 19dBm ±1.5dBm 802.11g: 17dBm ±1.5dBm 802.11n(2.4G@20MHz): 16dBm ±1.5dBm 802.11n(2.4G@40MHz): 14dBm ±1.5dBm |
| 接收器靈敏度 | 802.11b: -90dBm ±2dBm@1Mbps 802.11g: -72dBm ±2dBm@54Mbps 802.11n(2.4G@40MHz,MCS7): -68dBm ±2dBm |
| 加密安全性 | WEP: (64-bit ,128-bit key supported) WPA/WPA2 :802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption |
物理特性 | |
|---|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 45(W)x80.6(D)x95(H) mm |
| 重量（克） | 360 |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85°C(-40 to 185°F) |
| 作業溫度 | -10 to 60°C(14 to 140°F) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 3 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| EMI | FCC Part 15, CISPR (EN55022) class A | |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | |
| 震動 | IEC60068-2-27 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6 | |
| 安全性 | EN60950-1 | |

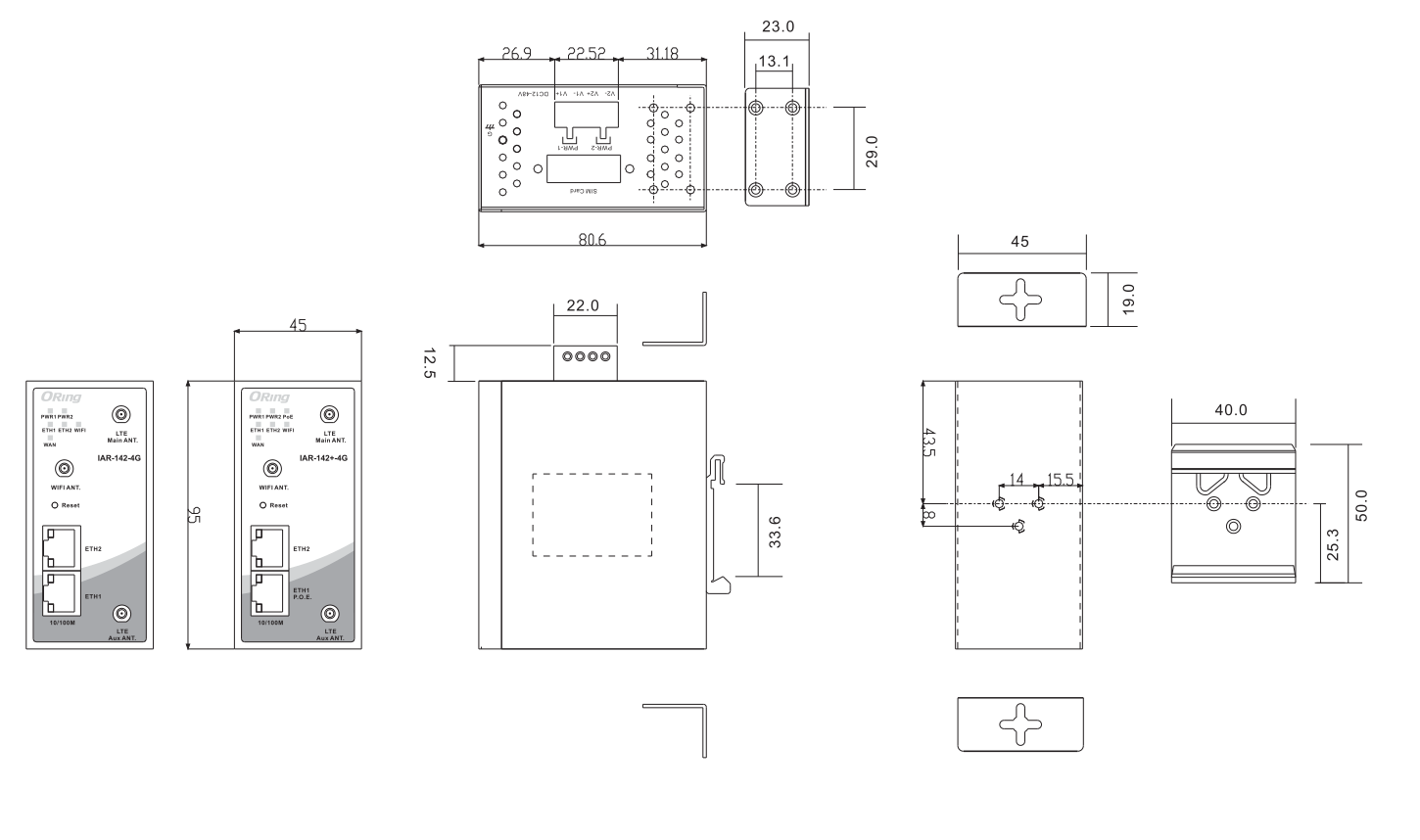

三視圖 |  |
|---|
