IGAP-840D
Industrial WIFI 5 Wireless AP with 4GE
商品介紹
The IGAP-840D is a reliable industrial WLAN Access Point featuring four Gigabit Ethernet ports and dual-band Wi-Fi 5 connectivity with speeds up to 867 Mbps. It supports AP, Client, and Repeater modes, configurable via LAN or WLAN through a secure HTTPS interface. With strong security features like WPA/WPA2, 802.1X, MAC filtering, and up to four SSIDs with VLAN, it ensures safe and flexible wireless communication. Additional features include X-Roaming (<100 ms), 2x2 MIMO, digital I/O, dual 12–48VDC power input, and rugged IP-30 housing, making it ideal for industrial wireless applications.
產品特色
- Provide 4 port 10/100/1000Base-T(X) port with RJ45 connector
- High Speed Air Connectivity: Dual Band concurrently in WIFI5
- WLAN interface and support up to 867Mbps link speed
- Support X-Roaming < 100 ms
- Support Multiple-SSID to 4 SSID with VLAN
- Support MAC Filter
- Secured Management by HTTPS
- High data throughput with HT40 2x2 MIMO
- Support AP/Client/Repeater
- Versatile modes & event alarm by e-mail
- 12 ~ 48Vdc dual power input
- Wireless connecting status monitoring
- Provide 2 DI and 2 DO
- IP-30 housing design
- DIN-Rail and Wall-mount enabled
實體連接埠 | |
|---|---|
| 10/100/1000Base-T(X) RJ45連接埠 | 4 LAN |
LED 指示燈 | |
|---|---|
| 狀態指示燈 | Green On: System Ready |
| Power indicator | 2 x LEDs, PWR1(2) / Ready: Green On : Power is on and functioning Normal |
| 故障指示燈（Fault） | Green On : When fault event occurs |
電源 | |
|---|---|
| 耗電量（一般） | 13w |
| 備用輸入電源 | Dual DC inputs. 12-48VDC on 4-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present |
WLAN 介面 | |
|---|---|
| 天線接頭 | 2 x Reverse SMA Female |
| 調變 | 802.11a: OFDM 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 頻段 | America / FCC: 2.412~2.462 GHz (11 channels ) 5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels ) Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) 5.180~5.240 GHz ( 4 channels ) |
| 傳輸率 | 802.11b: 1/2/5.5/11 Mbps 802.11a/g: 6/9/12/18/24/36/48/54 Mbps 802.11n: UP to 300 Mbps 802.11ac: up to 867Mbps |
| 發射功率 | IEEE 802.11a: 21dBm ± 2dBm@54Mbps IEEE 802.11b: 23dBm ± 2dBm@11Mbps IEEE 802.11g: 20dBm ± 2dBm@54Mbps IEEE 802.11gn HT20: 18dBm ± 2dBm @MCS7 IEEE 802.11gn HT40: 18dBm ± 2dBm @MCS7 IEEE 802.11an HT20: 20dBm ± 2dBm @MCS7 IEEE 802.11an HT40: 20dBm ± 2dBm @MCS7 IEEE 802.11ac VHT80: 20dBm ± 2dBm @MCS9 |
| 接收器靈敏度 | IEEE 802.11a : -75dBm ± 2dBm@54Mbps IEEE 802.11b : -90dBm ± 2dBm@11Mbps IEEE 802.11g : -75dBm ± 2dBm@54Mbps IEEE 802.11gn HT20:-72dBm ± 2dBm@MCS7 IEEE 802.11gn HT40:-70dBm ± 2dBm@MCS7 IEEE 802.11an HT20:-72dBm ± 2dBm@MCS7 IEEE 802.11an HT40:-69dBm ± 2dBm@MCS7 IEEE 802.11ac VHT80:-60dBm ± 2dBm@MCS9 |
| 加密安全性 | WEP: (64-bit ,128-bit key supported) WPA/WPA2 :802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption |
物理特性 | |
|---|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 60(W) x 125(D) x 158(H) |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -10 to 70°C (14 to 158°F) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| EMI | FCC Part 15, CISPR (EN55022) class A | |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | |
| 震動 | IEC60068-2-27 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6 | |
| 安全性 | EN60950-1 | |

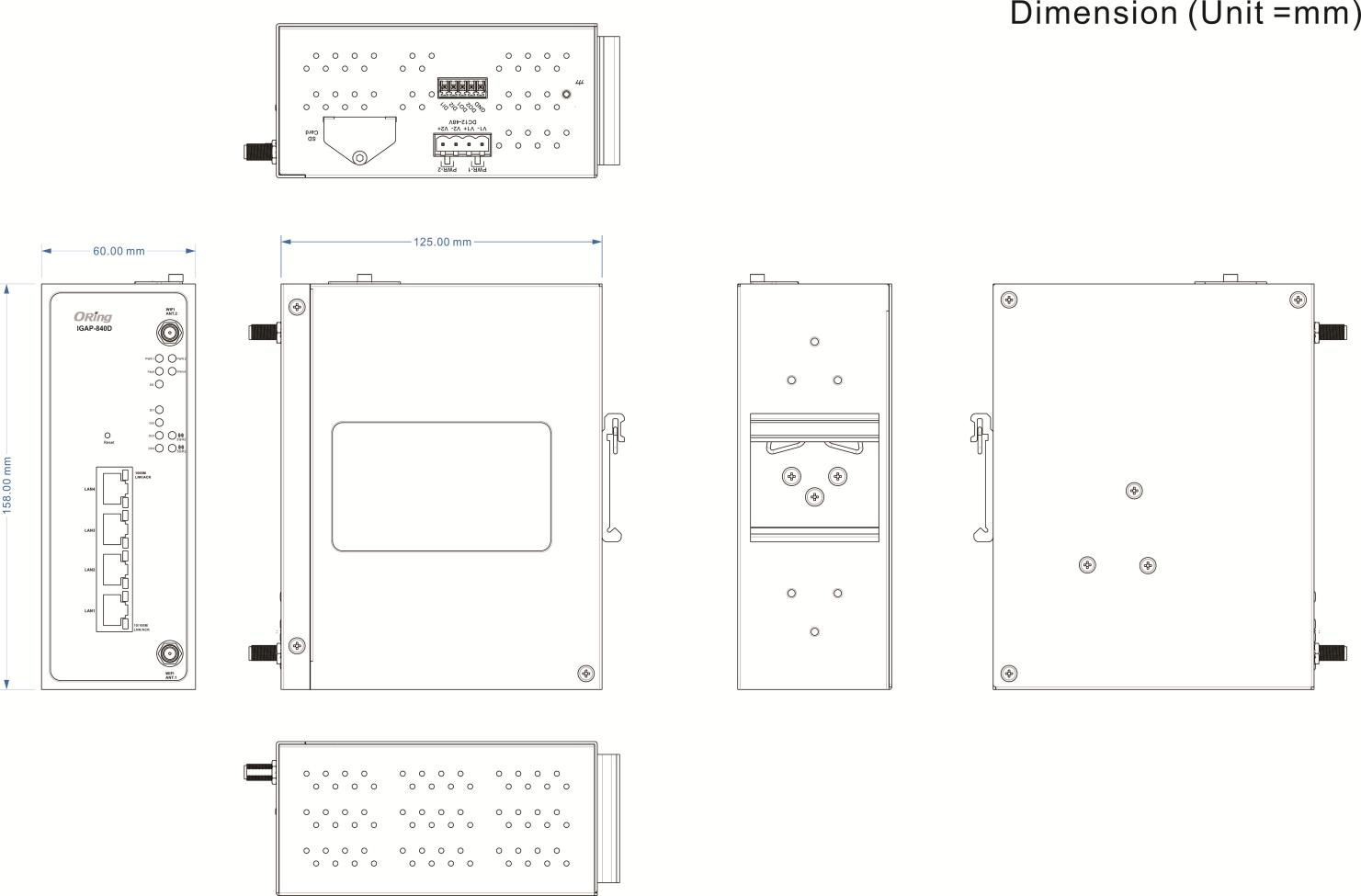

三視圖 |  |
|---|
