TDGAP-830D+-M12X-WV
Industrial EN50155 WIFI5 Access Point with 3x10/100/1000Base-T(X), M12 Connector
商品介紹
ORing’s TransporterTM series access point is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TDGAP-820D+-M12X-WV is a reliable WIFI5 WLAN Access Point with 3 Ethernet 10/100/1000 ports. It can be configured to operate in AP/Client Mode. TDGAP-820D+-M12X-WV provide a dust-tight connection and reverses SMA-type connectors that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TDGAP-820D+-M12X-WV by WEB interface via LAN port or WLAN interface. TDGAP-820D+-M12X-WV can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. In addition, TDGAP-820D+-M12X-WV also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3at PoE P.D. specification. Therefore, TDGAP-820D+-M12X-WV is one of the best communication solutions for wireless applications.
產品特色
- Leading EN50155-compliant wireless access point for rolling stock application
- High Speed Air Connectivity: WIFI5 interface support up to 867
- Mbps link speed and WIFI6 up to 1733Mbps link speed
- Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
- Support external SMA antenna installation
- Support AP/Client Mode
- Support Multiple-SSID to 4 SSID
- Support MAC Filter
- Wireless connecting status monitoring
- Secured Management by HTTPS
- 1KV isolation for PoE P.D. port
- Event Warning by Syslog, Email, SNMP Trap, and Relay output
- Rigid IP-40 housing design
- Wall mounting enabled
實體連接埠 | |
|---|---|
| 10/100/1000Base-T(X) M12連接埠 | 3(LAN) |
LED 指示燈 | |
|---|---|
| 乙太網路埠指示燈 | 6 x LEDs, LNK: Green for port Link/AcT. SPD: Green On for 1000/100Base-T(X) link; Green Off for 10Base link |
| WIFI（WLAN）指示燈 | 3 x LEDs, 1 x LED, Green On: RF on, Blink: data transmitting 1 x LED, Green for WLAN work on 2.4GHz 1 x LED, Green for WLAN work on 5GHz |
| SIM 卡指示燈 | 1 x LED, Green slow blink for normal, off for system halt |
| Power indicator | 1 x LED, Green for DC Power in |
| PoE 指示燈 | 1 x LED, Green for POE Power in |
電源 | |
|---|---|
| 隔離 | DC 2KV/ AC 1.5KV |
| 耗電量（一般） | 25 watts Max. |
| 電源輸入 | 24 ~ 110Vdc |
| 過載保護 | Present |
| 反極性保護 | Present |
天線接頭 | |
|---|---|
| WIFI | 2 x RP-SMA female |
WLAN 介面 | |
|---|---|
| 調變 | IEEE 802.11a: OFDM IEEE 802.11b: CCK, DQPSK, DBPSK IEEE 802.11g: OFDM IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 頻段 | America / FCC: 2.412~2.462 GHz 5.180~5.240 GHz & 5.745~5.825 GHz Europe CE / ETSI: 2.412~2.472 GHz 5.180~5.240 GHz |
| 傳輸率 | IEEE 802.11b: 1/2/5.5/11 Mbps IEEE 802.11a/g: 6/9/12/18/24/36/48/54 Mbps IEEE 802.11n: UP to 300 Mbps IEEE 802.11ac: up to 867Mbps |
| 發射功率 | IEEE 802.11a: 12dBm ± 2dBm@54Mbps IEEE 802.11b: 18dBm ± 2dBm@11Mbps IEEE 802.11g: 15dBm ± 2dBm@54Mbps IEEE 802.11gn HT20: 14dBm ± 2dBm @MCS7 IEEE 802.11gn HT40: 14dBm ± 2dBm @MCS7 IEEE 802.11an HT20: 11dBm ± 2dBm @MCS7 IEEE 802.11an HT40: 10dBm ± 2dBm @MCS7 IEEE 802.11ac VHT80: 7dBm ± 2dBm @MCS9 |
| 接收器靈敏度 | IEEE 802.11a : -71dBm ± 2dBm@54Mbps IEEE 802.11b : -86dBm ± 2dBm@11Mbps IEEE 802.11g : -72dBm ± 2dBm@54Mbps IEEE 802.11gn HT20:-68dBm ± 2dBm@MCS7 IEEE 802.11gn HT40:-66dBm ± 2dBm@MCS7 IEEE 802.11an HT20:-68dBm ± 2dBm@MCS7 IEEE 802.11an HT40:-67dBm ± 2dBm@MCS7 IEEE 802.11ac VHT80:-57dBm ± 2dBm@MCS9 |
| 加密安全性 | WEP: (64-bit ,128-bit key supported) WPA/WPA2 :802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption |
通訊協定支援 | |
|---|---|
| 通訊協定 | ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP |
物理特性 | |
|---|---|
| 外殼 | IP-30. (IP-40 for front face) |
| Dimensions (mm) | 200(W) x 100(D) x 89(H) |
| 重量（克） | 1170 |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -25 to 70°C (-13 to 158°F) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| 軌道交通 | EN50155 | |
| EMI | FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) | |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | |
| 震動 | IEC60068-2-27, EN61373 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6, EN61373 | |
| 安全性 | EN60950-1 | |

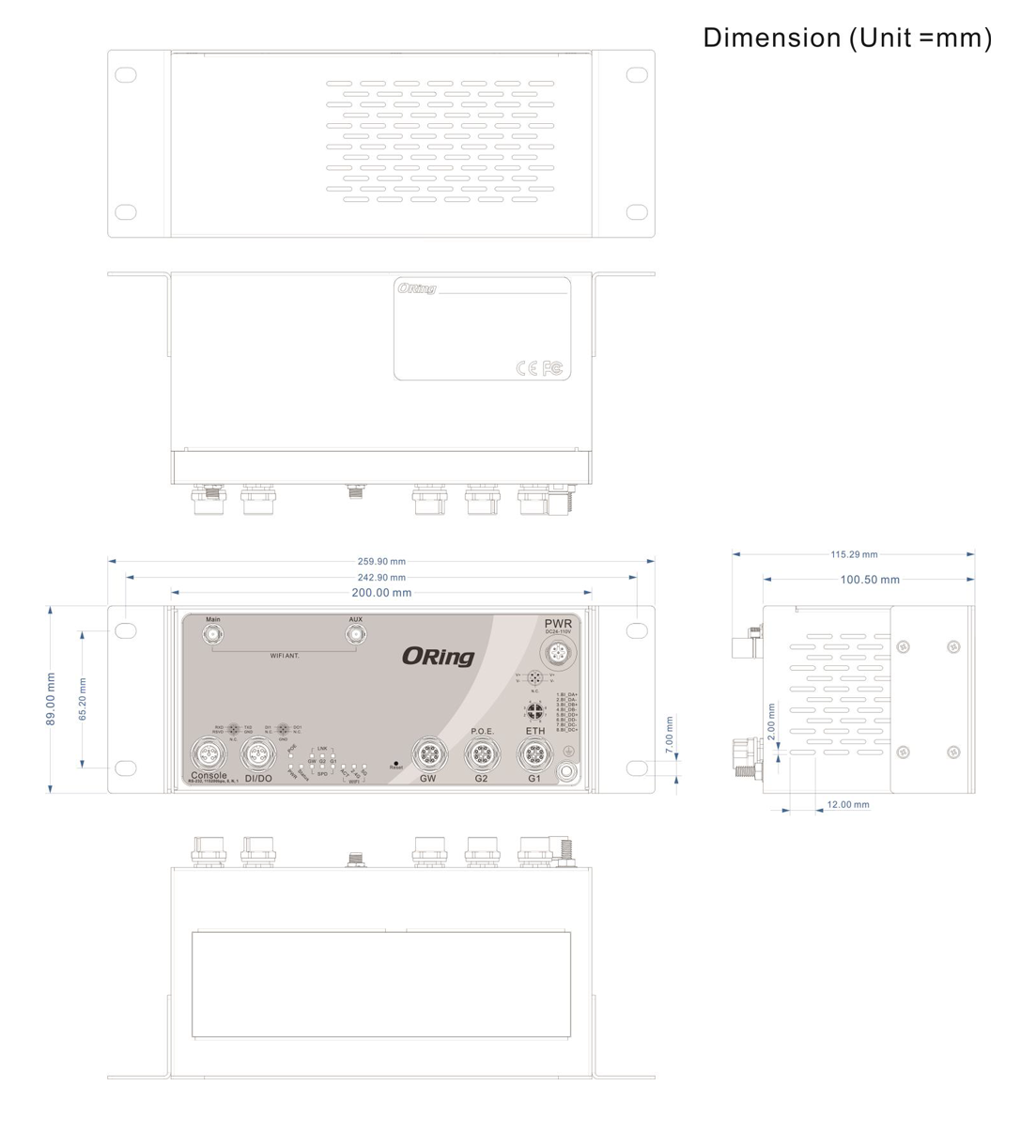

三視圖 |  |
|---|
