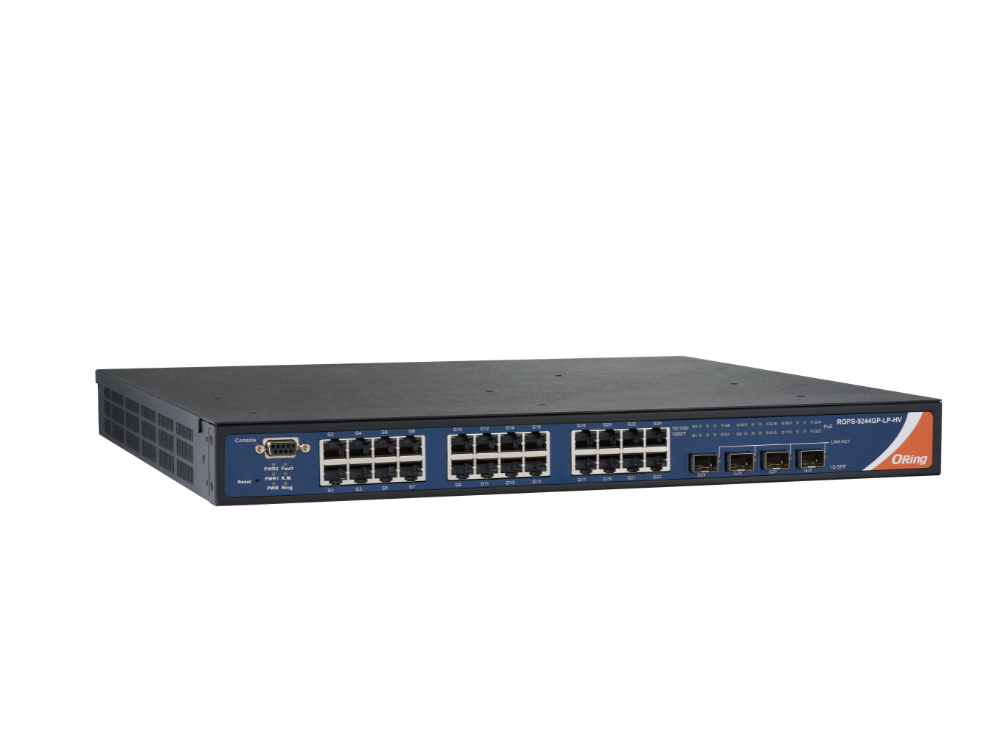

RGPS-9244GP-LP-HV

商品介紹

RGPS-9244GP-LP-HV is Layer 2 Gigabit managed redundant ring PoE Ethernet switch with 24x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 4x1GX SFP+ ports.  The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  RGPS-9244GP-LP-HV series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.  Each RGPS-9244GP-LP-HV series switch has 24x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.  P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection.  And RGPS-9244GP-LP-HV series support wide operating temperature from -40℃ to 60℃.  Besides the Web-based interface, Telnet and console (CLI) configuration, RGPS-9244GP-LP-HV series can also be managed centralized and convenient by Open-Vision. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber PoE Ethernet application.

產品特色

• Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allow multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
• Support PoE on/off scheduled configuration
• Support PoE alive check and auto reboot fuction
• Support IPv6 new internet protocol version
• Support Modbus TCP protocol
• Support IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Support SMTP client and SNTP server protocol
• Support application-based QoS management
• Support Device Binding security function
• Support DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Support ACL and 1x User Authentication for security
• Support 10K Bytes Jumbo Frame
• SFP socket support DDM function
• Multiple notification for warning of unexpected event
• Support DBU-01 backup unit device to quickly backup/restore configuration
• Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Support LLDP Protocol
• 19 inches rack mountable design
