IGPS-P9084GP-LA
Industrial IEC 61850-3 12-port Managed Gigabit PoE Ethernet Switch with 8G/PSE and 4G SFP socket,
商品介紹

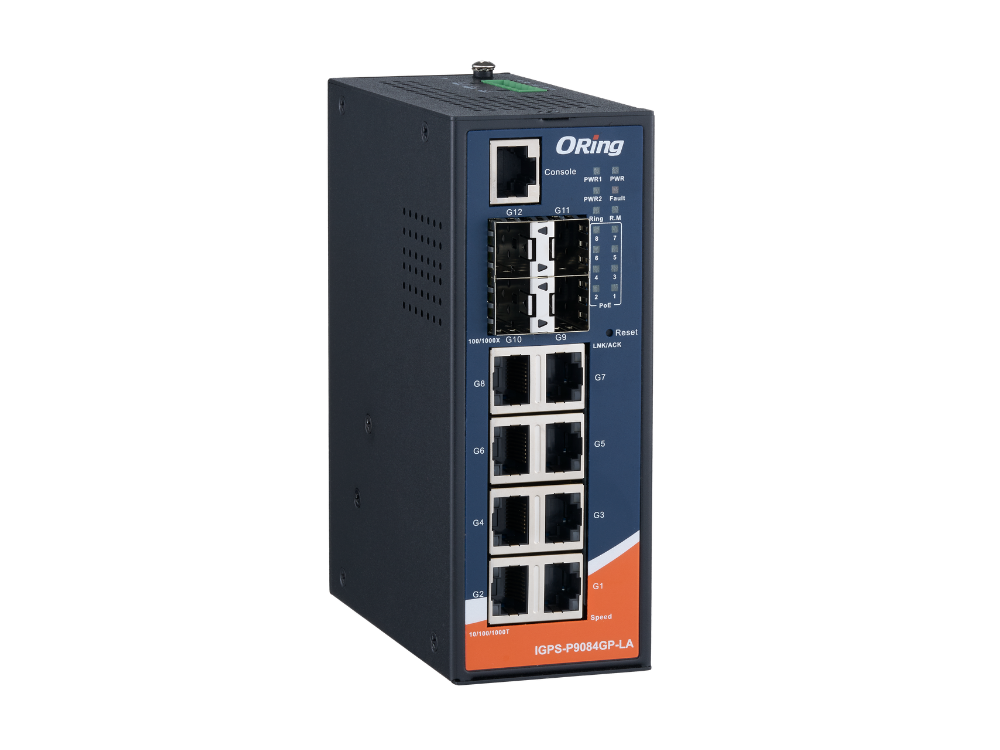

IGPS-P9084GP-LA is a rugged IEC 61850-3-compliant managed PoE Ethernet switch featuring 8×10/100/1000Base-T(X) P.S.E. ports and 4×100/1000Base-X SFP fiber ports. Designed specifically for power substations and rolling stock applications, it meets the stringent standards of IEC 61850-3 and IEEE 1613 for electromagnetic immunity and reliability.
To ensure network stability, the switch supports multiple industrial Ethernet redundancy protocols including O-Ring (recovery time < 20 ms over 250 nodes), MRP, G.8032 ERPS, and MSTP (compatible with RSTP/STP). These fast recovery technologies help protect mission-critical systems from network disruptions and minimize downtime.
With a maximum total PoE power budget of 240W, each PoE port delivers up to 30 watts, providing both data and power over standard Ethernet cables to remote PD devices.
IGPS-P9084GP-LA is an ideal solution for high-reliability, fiber-integrated, and power-efficient Ethernet networks in demanding industrial environments.
產品特色
- Designed for Power substation application and fully compliant with the requirement of IEC61850-3/IEEE 1613
- Supprot IEEE 1588v2 clock syncronization
- Support O-Ring, O-Chain, IEC 62439-2 MRP, ERPS, RSTP/MSTP for Ethernet Redundancy
- 8 port P.S.E. fully compliant with IEEE 802.3at standard
- Support PoE on/off scheduled configuration
- Support PoE alive check and auto reboot fuction
- Support IPV6 new internet protocol version
- Support EtherNet/IP and Modbus TCP
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client and NTP server protocol
- Support IP-based bandwidth management
- Support application-based QoS management
- Support Device Binding security function
- Support DoS/DDoS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL, TACACS+ and 1x User Authentication for security
- Support 9.6K Bytes Jumbo Frame
- Syslog/SNMP Trap notification for warning of unexpected event
- Support DBU-01 backup unit device to quickly backup/restore configuration
- Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Open-Vision configuration
- Support LLDP Protocol
- Rigid IP-30 housing with Fanless design
- DIN-Rail and wall mounting enabled
實體連接埠 | |
|---|---|
| 主控埠 | 1 |
| 重設 | 1 |
| 10/100/1000Base-T(X) RJ45連接埠，具P.S.E.功能 | 8 |
| 100/1000Base-X SFP連接埠 | 4 |
| RS-232主控台連接埠 | RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 |
LED 指示燈 | |
|---|---|
| Power indicator | Green : Power LED x 3 |
| 環狀主控指示燈 (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring 指示燈 (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken. |
| 故障指示燈（Fault） | Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45連接埠指示燈 | Green for Port LINK/ACT indicator Dual color LED for speed indicator: Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps |
| 100/1000Base-X SFP連接埠指示燈 | Green for port Link/Act. |
| PoE 指示燈 | Green : PoE enabled LED x 8 |
電源 | |
|---|---|
| 耗電量（一般） | 13.2 Watts for system only |
| PoE 輸出功率 | Per port 56V DC, 350mA. Max. 15.4 watts (IEEE 802.3af) Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at) |
| 接頭 | 6-pin terminal block |
| 備用輸入電源 | 50/57VDC |
| 總 PoE 輸出功率 | 240W max, 30W/per port |
| 過載保護 | Present |
物理特性 | |
|---|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches) |
| 重量（克） | 779g |
技術 | |
|---|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) |
| MAC 表格 | 8k |
| 封包緩衝區大小 | 4Mbit |
| 優先順序佇列 | 8 |
| 處理 | Store-and-Forward |
| 交換機屬性 | Switching latency: 7 us Switching bandwidth: 24Gbps Throughput (packet per second) : 17.856Mpps@64Bytes packet Max. Number of Available VLANs: 4096 VLAN ID Range : VID 0 to 4095 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| 巨型訊框 | Up to 9.6K Bytes |
| 安全功能 | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| 軟體功能 | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP EtherNet/IPTM |
| 網路備援 | O-Ring Open-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
故障接觸 | |
|---|---|
| 繼電器 | Relay output to carry capacity of 1A at 24VDC |
重置功能 | |
|---|---|
| 重置按鈕 | less than 5 sec: System reboot, greater than 5 sec: Factory default |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85 degrees C (-40 to 185 degrees F) |
| 作業溫度 | -40 to 75 degrees C (-40 to 167 degrees F ) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032) FCC Part 15 B | |
| EMI | EN 55032 CISPR32 EN 61000-3-2 EN 61000-3-3 FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2, IEC/EN 61000-4-3 (RS) IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8(PFMF) | |
| 震動 | IEC60068-2-27 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6 | |
| 安全性 | EN62368-1 | |
| 其他 | IEC 61850-3 IEEE 1613 | |
| MTBF | 602,954hrs | |
三視圖 |  |
|---|
