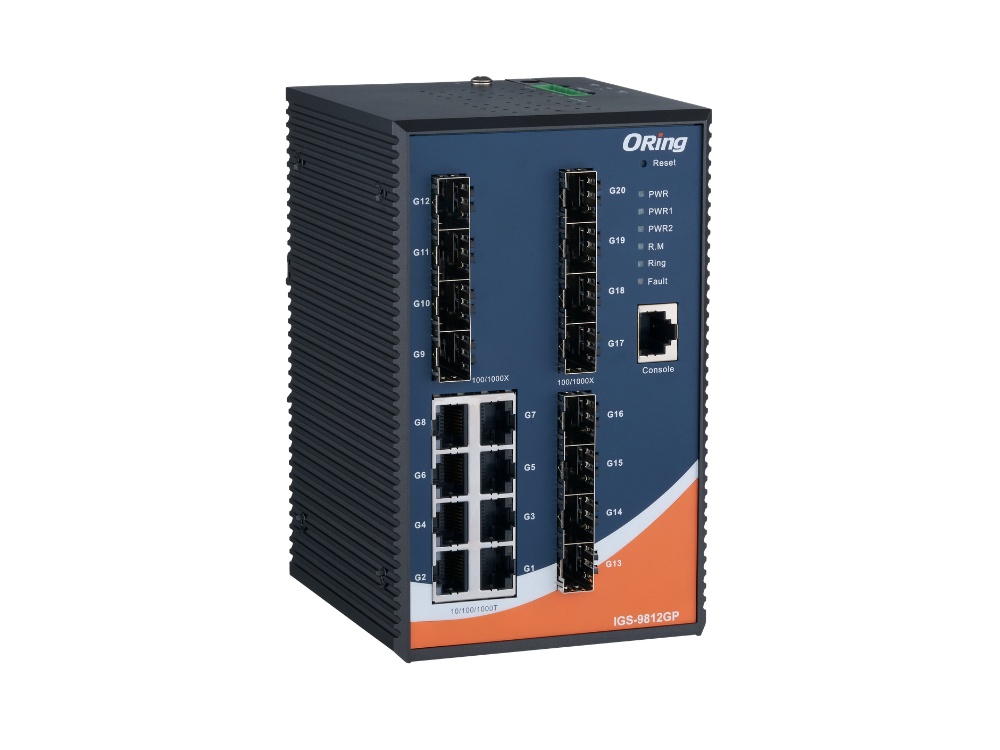

IGS-9812GP
8GE + 12G SFP Managed Ethernet Switch
商品介紹
IGS-9812GP is managed redundant ring Ethernet switch with 8x 10/100/1000Base-T(X) ports and 12x 100/1000Base-X SFP ports. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 to 75°C. IGS-9812GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and fiber Ethernet power substation and rolling stock application.
產品特色
- Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- Open-Ring support the other vendor’s ring technology in open architecture
- O-Chain allow multiple redundant network rings
- Support IEEE 1588v2 clock Synchronization
- Supports IPV6 new internet protocol version
- Support Modbus TCP protocol
- Provided HTTPS/SSH protocol to enhance network security
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Supports SMTP client
- Supports IP-based bandwidth management
- Supports Jumbo Frame up to 9.6 K Bytes
- Supports backup unit device DBU-01 to quickly c onfiguration backup/restore
IGS-9812GP
Industrial 20-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X, SFP socket
實體連接埠 | |
|---|---|
| 10/100/1000Base-T(X) RJ45連接埠 | 12 |
| 100/1000Base-X SFP連接埠 | 2 |
LED 指示燈 | |
|---|---|
| 電源指示燈（Power） | Green : Power LED x 3 |
| 環狀主控指示燈 (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring 指示燈 (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken |
| 故障指示燈（Fault） | Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45連接埠指示燈 | Green for port Link/Act. Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps |
| 100/1000Base-X SFP連接埠指示燈 | Green for port Link/Act |
電源 | |
|---|---|
| 耗電量（一般） | 12.67 Watts (Full loading) |
| 備用輸入電源 | Dual DC inputs. 12~48VDC on 6-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present |
物理特性 | |
|---|---|
| Dimensions (mm) | 74.3 (W) x 109.2 (D) x 153.6 (H)mm (2.93 x 4.3 x 6.05 inch) |
| 重量（克） | 1160 g |
技術 | |
|---|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC 表格 | 8k |
| 封包緩衝區大小 | 4Mbits |
| 優先順序佇列 | 8 |
| 處理 | Store-and-Forward |
| 交換機屬性 | Switching latency: 7 us Switching bandwidth: 28Gbps Throughput (packet per second) : 20.83Mpps@64Bytes packet Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| 巨型訊框 | 9.6K |
| 安全功能 | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| 軟體功能 | MSTP (RSTP/STP compatible) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP NTP server |
| 網路備援 | O-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
故障接觸 | |
|---|---|
| 繼電器 | Relay output to carry capacity of 1A at 24VDC |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85℃ (-40 to 185℉) |
| 作業溫度 | -40 to 75℃ (-40 to 167℉ ) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||
|---|---|---|---|
安規 | ||
|---|---|---|
| EMC | CE EMC (EN 55035 EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55035 IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP) | |
| 震動 | IEC60068-2-27 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6 | |
| 安全性 | EN60950-1 | |
| MTBF | 713,154 hrs | |
三視圖 |  |
|---|
