IES-2042FX-MM-SC
4FE + 2 SC Multi-mode Lite-Managed Ethernet Switch
商品介紹
IES-2060/2042FX series are lite-Managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100Base-FX ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), O-Chain and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IES-2060/2042FX series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. Therefore, these switches are one of the most reliable choice for easy managed Fiber Ethernet application.
產品特色
- Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
- O-Chain support the multiple redundant ring technology
- Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
- Provides Fast recovery technology for Ethernet multi-redundancy
- SNMP v1/v2c/v3 ,http server, telnet server support
- Supports LLDP protocol
- Configurable by Web-based and Windows utility (Open-Vision)
- Event notification through Syslog, Email, and SNMP trap
- Two 100Base-FX fiber ports support for long distance connection
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
IES-2042FX-MM-SC
Industrial 6-port lite-managed Ethernet switch with 4x10/100Base-T(X) and 2x100Base-FX, multi-mode, 2Km/1310nm, SC connector
IES-2042FX-SS-SC
Industrial 6-port lite-managed Ethernet switch with 4x10/100Base-T(X) and 2x100Base-FX, single-mode, 30Km/1310nm, SC connector
實體連接埠 | |
|---|---|
| 100Base-FX Fiber Ports | 2 |
| 10/100Base-T(X) RJ45連接埠 | 4 |
| 重設 | 1 |
LED 指示燈 | |
|---|---|
| 100Base-FX光纖埠指示燈 | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. Amber for Link indicator: On for link-up, Off for link-down. |
| 電源指示燈（Power） | Green: Power LED x 3 |
| 環狀主控指示燈 (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring 指示燈 (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| 故障指示燈（Fault） | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) RJ45連接埠指示燈 | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. Amber for Link indicator: On for link-up, Off for link-down. |
電源 | |
|---|---|
| 耗電量（一般） | 7 Watts |
| 接頭 | Terminal Block |
| 備用輸入電源 | Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack |
| 過載保護 | Present |
| 反極性保護 | Present on terminal block |
保護 / 認證 | |
|---|---|
| 安全性 | IEC/EN 62368-1 (LVD), UL 61010-1, UL 61010-2-201 |
物理特性 | |
|---|---|
| 外殼 | IP-30 Aluminum |
| Dimensions (mm) | 54.2 (W) x 107.1 (D) x 145.4 (H)mm 2.13 (W) x 4.22 (D) x 5.72 (H) inch |
| 重量（克） | 670 g |
技術 | |
|---|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC 表格 | 1K |
| 封包緩衝區大小 | 1Mb |
| 優先順序佇列 | 4 |
| 處理 | Store-and-Forward |
| 交換機屬性 | Switching latency: 5.05 µs Switching bandwidth: 1.2Gbps Throughput (packet per second): 892.8Kpps@64Bytes packet VLAN: Port based |
| 安全功能 | Enable/disable ports VLAN to segregate and secure network traffic |
| 軟體功能 | STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units DHCP Client Port Base VLAN LLDP (Link Layer Discovery Protocol) Port configuration, status, statistics, monitoring, security SNMP v1/v2c/v3 and private MIB support |
| 網路備援 | O-Ring O-Chain Fast recovery RSTP/STP |
| 警示 / 監控系統 | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
固定式光纖連接埠數量 | |
|---|---|
| 光纖埠標準 | 100Base-FX |
| 光纖模式 | Multi-mode |
| 光纖直徑 (μm) | 62.5/125 µm, 50/125 µm |
| 光纖接頭 | SC |
| 一般距離 (km) | 2 Km |
| 波長 (nm) | 1310 nm |
| 最大輸出光功率 (dBm) | -14 dBm |
| 最小輸出光功率 (dBm) | -23.5 dBm |
| 最大輸入光功率 (飽和)(dbm) | 0 dBm |
| 最小輸入光功率 (飽和)(dbm) | -31 dBm |
| 鏈路預算 (dB) | 7.5 dB |
故障接觸 | |
|---|---|
| 繼電器 | Relay output to carry capacity of 1A at 24VDC |
重置功能 | |
|---|---|
| 重置按鈕 | Less than 5 sec: System reboot More than the 5 sec: Factory default |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85℃ (-40 to 185℉) |
| 作業溫度 | -40 to 75℃ (-40 to 167℉) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||
|---|---|---|---|
安規 | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| 震動 | IEC60068-2-27 | |
| 自由落體 | IEC60068-2-31 | |
| 振動 | IEC60068-2-6 | |
| 安全性 | IEC/EN 62368-1 (LVD), UL 61010-1, UL 61010-2-201 | |
| MTBF | 595597.3384 hrs. | |

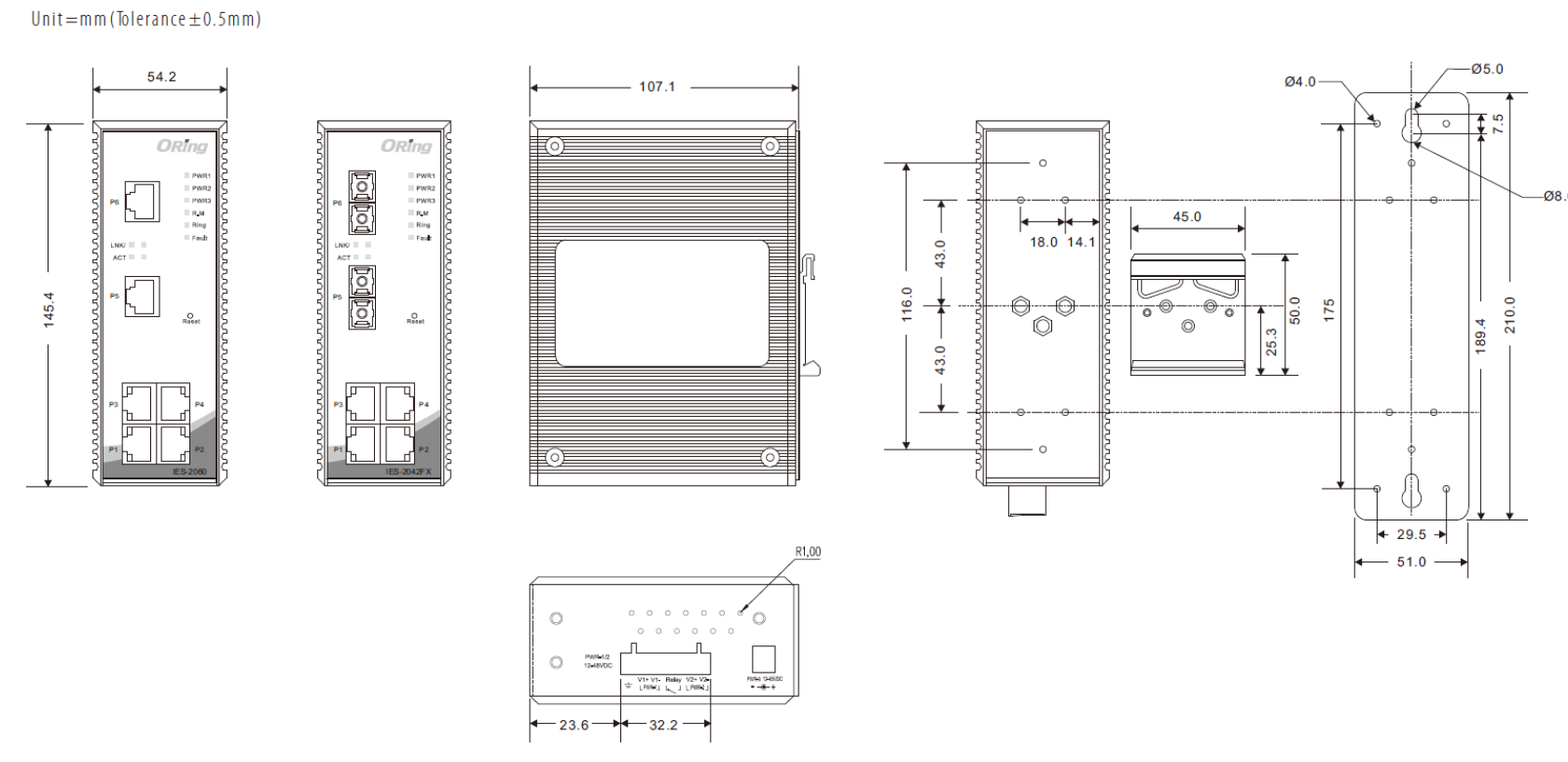

三視圖 |  |
|---|
