商品介紹

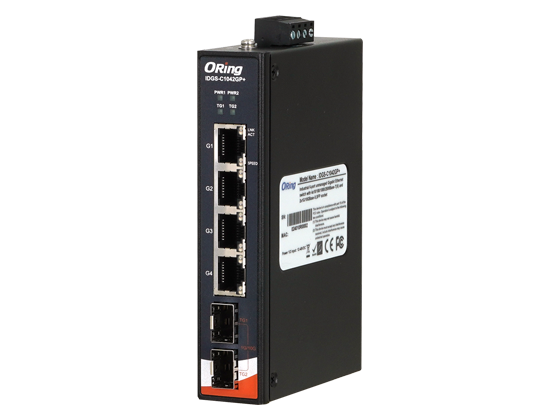

IDGS-C1042GP+ is unmanaged 2.5 gigabit Ethernet switch with 10G uplinks. The Ethernet switch equips with 4x 10/100/1000/25000Base-T(X) ports with 2x 1G/10GBase-X SFP ports. The four 2.5 Gigabit Ethernet ports are available for connecting high-speed interface devices, such as WIFI 6 APs, 2.5G PCIe adapters, and 2.5G servers. With 10 Gigabit capability, you can experience faster data transfer rates, reduced latency, and improved overall efficiency in handling bandwidth-intensive tasks! With an extensive operating temperature range spanning from -40°C to 75°C, they effortlessly adapt to various operational environments. Renowned for their robustness, they stand as a dependable choice for Ethernet applications.
產品特色
- Support 4 ports 10/100/1000/2500Base-T(X) ports
- Support 2 ports 1G/10GBase-X SFP socket
- Support auto-negotiation and auto-MDI/MID-X
- Support Store and forward transmission
- Support flow control
- Rigid IP-40 housing design
- DIN-rail mounting enable
實體連接埠 |
|---|
| 10/100/1000/2500Base-T(X) RJ45連接埠 | 4 |
| 1000/10G Base-X SFP/SFP+連接埠 | 2 |
LED 指示燈 |
|---|
| Power indicator | Green: Power LED x2 |
物理特性 |
|---|
| 外殼 | IP-40 Metal |
| Dimensions (mm) | 28(W) x 88(D) x 130(H)mm |
| 重量（克） | 465 g |
技術 |
|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3bz for 2.5GBaseT
IEEE 802.3ae for 10G SFP+
IEEE 802.3x for Flow contro |
| MAC 表格 | 8K |
| 處理 | Store-and-Forward |
| 交換機屬性 | Switching latency: 10 µs
Switching bandwidth: 60Gbps |
| 巨型訊框 | 16K Bytes |
環境條件 |
|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -40 to 75°C (-40 to 167°F) |
| 作業濕度 | 5% to 95% Non-condensing |
安規 |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| 震動 | IEC60068-2-27 |
| 自由落體 | IEC60068-2-31 |
| 振動 | IEC60068-2-6 |
| 安全性 | EN 62368-1 (LVD) |

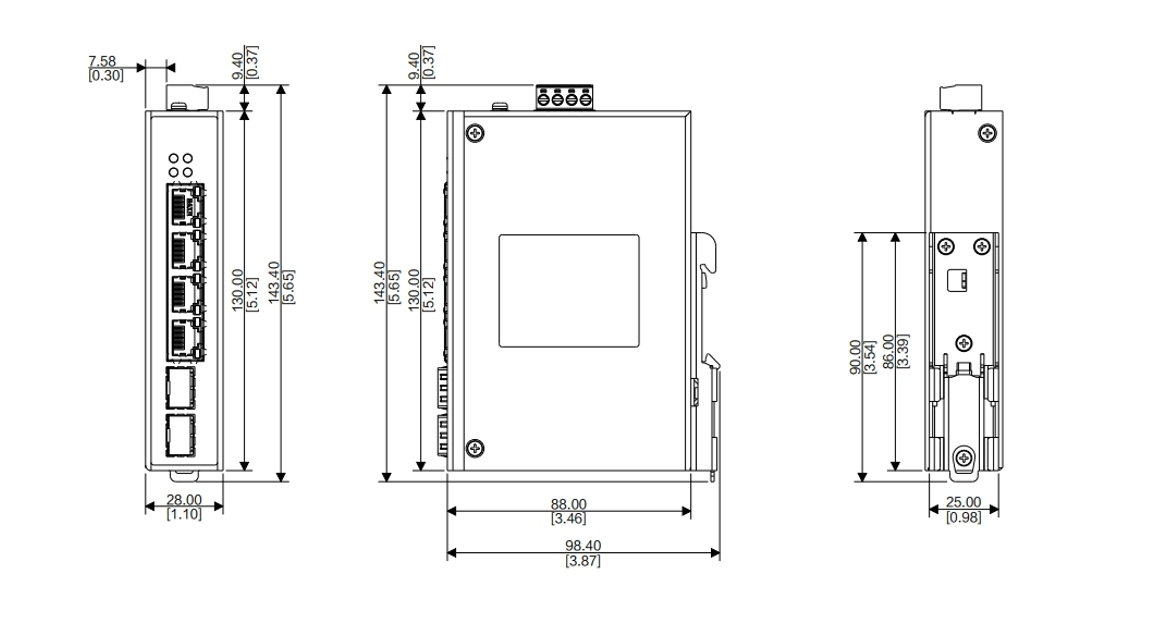

三視圖 |
|---|
 |
