Description

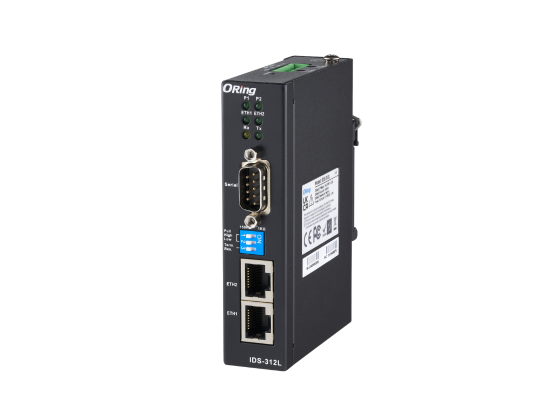

IDS-312L is an innovative secure 1 port RS-232/422/485 to 2 port LAN device server with standard features of device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com. On the other hand, IDS-312L can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails.
IDS-312L supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to guarantee a non-stop operation. With wide operating temperature, -40~70oC, and rugged IP-30 housing design, IDS-312L series could operate in the harsh industrial environment. Therefore, IDS-312L is the best solution to the high demand of secure serial to Ethernet critical data communication.
Features
- Operating Modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP and Modbus Gateway
- Support Modbus Gateway: Modbus TCP, Modbus RTU and Modbus ASCII
- Support 1xRS-232/422/485 in DB9 connector
- Redundant multiple host devices:
5 host devices: Virtual COM, TCP Server, TCP Client mode; 4 IP ranges: UDP
- Event Warning by Syslog, Email, SNMP trap
- Configurable by Web-based and Windows utility (DS-Tool)
Physical ports |
|---|
| 10/100Base-T(X) ports in RJ45 | 2 |
LED Indicators |
|---|
| Power indicator | 2 x LEDs, PWR 1(2) / Ready:
Green On: Power is on |
| Serial TX/RX Indicator | Amber: Serial port is receiving data
Green: Serial port is transmitting data |
| 10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act at 100Mbps. |
Power |
|---|
| Power consumption (Typ.) | 4.8w Max. (0.05A-0.1A) |
| Redundant Input power | Dual DC inputs. 12-48VDC on 4-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Protocol Support |
|---|
| Protocol | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP |
Serial Interface |
|---|
| Connector | DB9 x 1 |
| Operation Mode | RS-232/422/485 |
| Serial Baud Rate | 1200 bps to 460800bps (Max. 921.6 Kbps) |
| Data Bits | 7, 8 |
| Parity | odd, even, none, mark, space |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | XON/XOFF, RTS/CTS, DTR/DSR |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Physical Characteristic |
|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 26 (W) x 75 (D) x 110 (H) mm (1.02 x 2.95 x 4.33 inch) |
| Weight (g) | 227g |
Environmental |
|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5% to 95% Non-condensing |
Downloads |
|---|
| Datasheet | Version | Checksum | Release Date | Release Note | Size |
|---|
| IDS-312L Datasheet | | | July 06, 2023 | | 278.29 kB |
|
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15B |
| EMI | EN 55032 CISPR 32, EN 61000-3-2, EN 61000-3-3 FCC Part 15B Class A |
| EMS | EN 55024 (IEC/EN61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP)) |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1, UL61010-1, UL61010-2-201 |
| MTBF | 1479078 hrs |
