IGAP-W99110GP+

IGAP-W99110GP+

Outdoor Industrial Dual WIFI6 Wireless AP with 1GE and 1 SFP socket, IP68, PoE P.D

Description

ORing IGAP-W99110GP+ is a high-performance Wi-Fi 6 (IEEE802.11ax) industrial outdoor AP. The IGAP-W99110GP+ provide concurrent dual-band dual-radio with up to 2.4Gbps access rate, it offers 4 spatial streams. The interface includes one SFP port and one Gigabit Ethernet port with PoE/ local power supply. Taking the wireless network security, RF control, mobile access, QoS, seamless roaming and other important factors into account. By the technologies implemented in IEEE802.11ax, such as OFDMA, BSS Color and MU-MIMO, it can reduce the network latency, spatial reuse and improve the network efficiency.
IGAP-W99110GP+ adopts the IP68 protection design for the enclosure, which is suitable for application in indoor and outdoor environments. It can withstand extreme weather and other environmental conditions. Equipped with built-in directional antenna, IGAP-W99110GP+ can achieve the Wi-Fi coverage in vast majority of the scenarios and greatly reduce the difficulty of installation and maintenance. Multi-hop and point-to-multipoint bridge features are supported to further enhance the deployment flexibility.

Features

  •  High Speed Air Connectivity:WLAN interface support up to 2400Mbps link speed
  •  Dual-Band Dual-Radio IEEE802.11ax with 4 spatial streams
  •  Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
  •  Support wireless load balance
  •  Max 1024 client connections
  •  Supports a wide variety of QoS policies
  •  ARP Spoofing Protection
  •  Support IPv4/IPv6 address
  •  Support AP/Client Mode
  •  SSID capacity up to 32
  •  Wireless connecting status monitoring
  •  Secured Management by Telnet, SSH, TFTP, HTTP
  •  Event Warning by Syslog
  •  Wall/Pole-mount installation

IGAP-W99110GP+
Industrial Dual Wi-Fi 6 wireless access point with 1x10/100/1000Base-T(X) and 1xSFP slot, PoE P.D., IP68 grade

Physical ports

10/100/1000Base-T(X) ports in RJ451
Console1
ResetReset AP/Factory default by press time

LED Indicators

RSSI IndicatorGreen 1 Solid : -50dBm

Power

Power consumption (Typ.)12.95W
Surge ProtectionCommon mode +/-9kV
Power InputPoE (802.3af / 802.3at) or 44~57VDC power supply

WLAN Interface

Operating ModeAP/Client
Frequency Band2.412~2.472 GHz
5.180~5.240 GHz, 5.745~5.825 GHz
Transmission RateUp to 0.575Gbps@2.4G
Up to 1.2Gbps@5G
Up to 2.4Gbps per AP
2.4G+5G is recommended with 1.775Gbps access rate
Transmit Power28dBm
(Note: The actual transmit power varies according to different countries and regions)
Receiver SensitivityIEEE802.11a : -71dBm ± 2dBm@54Mbps
IEEE802.11b : -85dBm ± 2dBm@11Mbps
IEEE802.11g : -71dBm ± 2dBm@54Mbps
IEEE802.11n : -83dBm ± 2dBm@MCS0
IEEE802.11ac HT20 :-83dBm ± 2dBm@MCS0
IEEE802.11ac HT40 :-79dBm ± 2dBm@MCS0
IEEE802.11ac HT80 :-76dBm ± 2dBm@MCS0
IEEE802.11ax HT80 :-76dBm ± 2dBm@MCS0
Encryption SecurityWEP: (64-bit ,128-bit key)
WPA/WPA2 PSK :TKIP and AES encryption (802.11i)
802.1X/RADIUS Authentication supported

Logic Signal Input (LSI)

TypeReset AP/Factory default by press time

Protection / Certification

SafetyEN60950-1, GB4943

Physical Characteristic

EnclosureIP-68
Weight (g)1.5kg

I/O Interface

TypeReset AP/Factory default by press time

Environmental

Storage Temperature-40 to 85℃ (-40 to 185℉)
Operating Temperature-40 to 65℃ (-40 to 149℉)
Operating Humidity0% to 100% Non-condensing

Warranty

Warranty3 years

Downloads

DatasheetVersionRelease DateSize
IGAP-W99110GP+ DatasheetJuly 06, 2023616.86 kB

UserManualVersionRelease DateSize
IGAP-W99110GP+ User ManualJuly 06, 20234.54 MB

hardwareVersionRelease DateSize
hardware_installation_guide_igap-w99110gp+July 06, 20231.10 MB



Regulatory Approvals

EMCEN55032, EN55035, EN301 489, GB9254
SafetyEN60950-1, GB4943

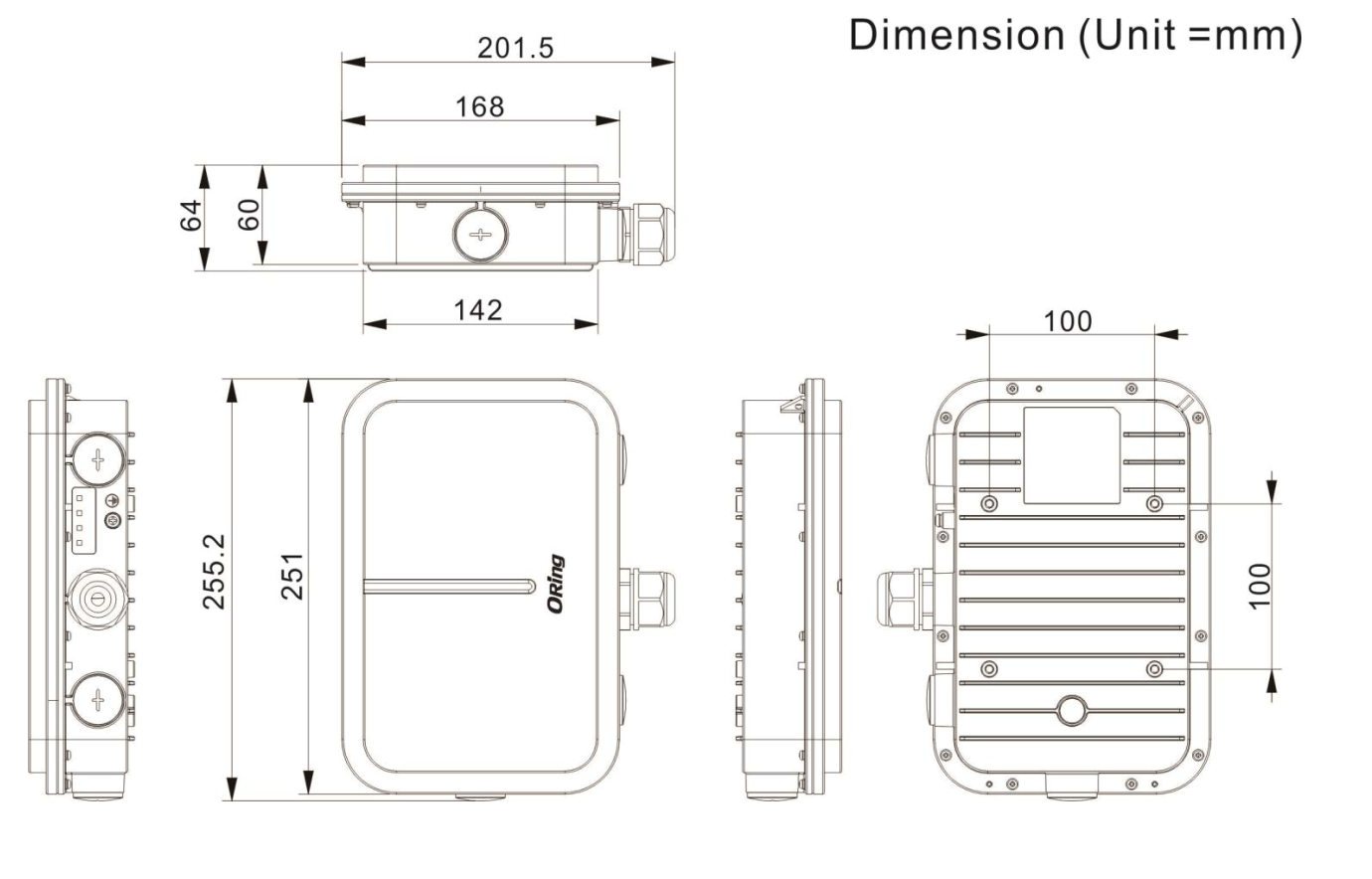

Dimensions
