IGS-9812GP
8GE + 12G SFP Managed Ethernet Switch
Description
IGS-9812GP is a managed redundant ring Ethernet switch with 8x 10/100/1000Base-T(X) ports and 12x 100/1000Base-X SFP ports. It fully supports Ethernet redundancy protocols including O-Ring (recovery time < 30ms over 250 units of connection), MSTP (RSTP/STP compatible), G.8032 ERPS, and IEC 62439-2 MRP, ensuring fast recovery technology to protect mission-critical applications from network interruptions or temporary malfunctions. The switch operates over a wide temperature range from -40°C to 75°C.
IGS-9812GP can be centrally managed conveniently via Open-Vision, excluding the Web-based interface, Telnet, and console (CLI) configuration. Therefore, the switch is one of the most reliable choices for industrial networking applications.
Features
- Support O-Ring, O-Chain, ERPS and IEC 62439-2 MRP for Ethernet redundancy
- Support IEEE 1588v2 clock Synchronization
- Support IPV6 new internet protocol version
- Support Modbus TCP and Ethernet/IP protocol
- Provided HTTPS/SSH protocol to enhance network security
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Support SMTP client
- Support IP-based bandwidth management
- Support Jumbo Frame up to 9.6 KBytes
- Support backup unit device DBU-01 to quickly c onfiguration backup/restore
IGS-9812GP
Industrial 20-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X, SFP socket
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports in RJ45 | 12 |
| 100/1000Base-X with SFP port | 2 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green : Power LED x 3 |
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken |
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 port indicator | Green for port Link/Act. Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps |
| 100/1000Base-X SFP Port Indicator | Green for port Link/Act |
Power | |
|---|---|
| Power consumption (Typ.) | 12.67 Watts (Full loading) |
| Redundant Input power | Dual DC inputs. 12~48VDC on 6-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Physical Characteristic | |
|---|---|
| Dimensions (mm) | 74.3 (W) x 109.2 (D) x 153.6 (H)mm (2.93 x 4.3 x 6.05 inch) |
| Weight (g) | 1160 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8k |
| Packet buffer Size | 4Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 28Gbps Throughput (packet per second) : 20.83Mpps@64Bytes packet Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| Jumbo frame | 9.6K |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| Software Features | MSTP (RSTP/STP compatible) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP NTP server |
| Network Redundancy | O-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉ ) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035 EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55035 IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN60950-1 | |
| MTBF | 713,154 hrs | |

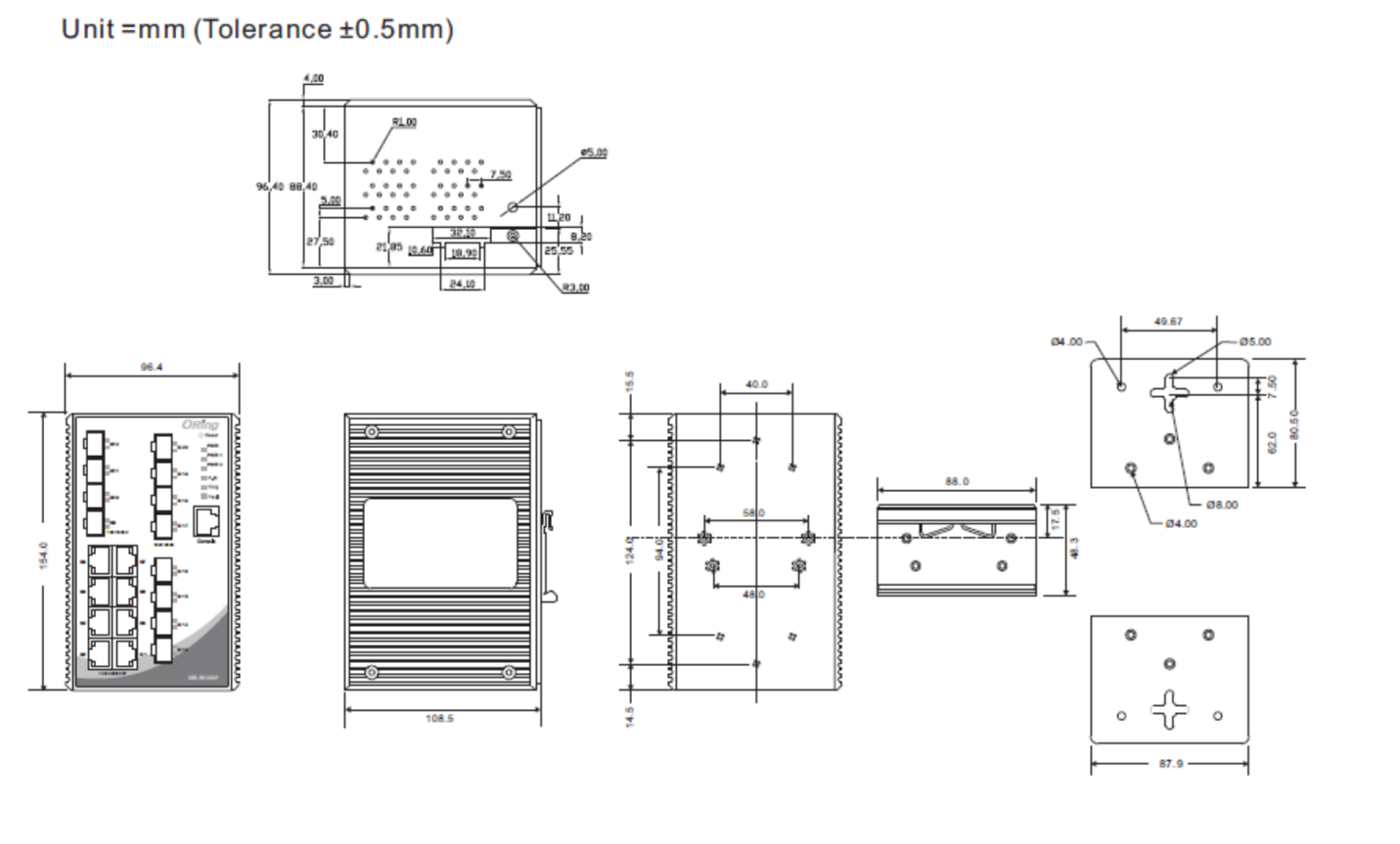

Dimensions | |
|---|---|
 |
