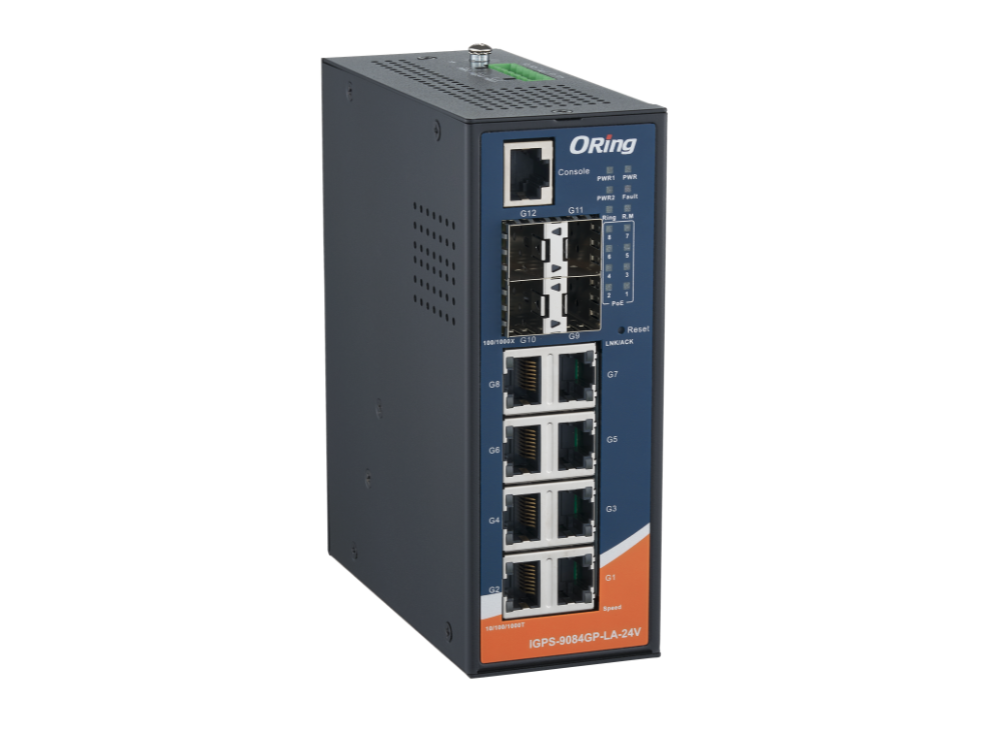

IGPS-9084GP-LA-24V
8GE PoE + 4G SFP Cyber-hardened Managed L2 Ethernet Switch, IEEE 802.3af/at, 24VDC
Description
The IGPS-9084GP-LA-24V is a layer 2 managed PoE Ethernet switch equipped with 8x 10/100/1000Base-T(X) P.S.E. ports and 4x 100/1000Base-X SFP ports. Certified to IEC 62443-4-2 standards, it incorporates robust cybersecurity measures to safeguard against potential threats and vulnerabilities.
It supports Ethernet Redundancy protocols such as O-Ring (with a recovery time of < 20ms over 250 units) and MSTP (compatible with RSTP/STP), ensuring reliable protection for mission-critical applications from network interruptions or temporary malfunctions. The switch also features Power over Ethernet (PoE) capabilities, delivering up to 30 watts per port, with a maximum total PoE power budget of 240W. Operating reliably in a wide temperature range from -40°C to 75°C, the IGPS-9084GP-LA-24V supports dual 12~57 VDC power input, offering versatility for various power supply configurations. It offers centralized management through Open-Vision, accessible via web-based interface, Telnet, and console (CLI) configuration, making it an excellent choice for environments requiring high reliability and PoE applications.
Features
- Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
- Support O-Ring, O-Chain, RSTP/MSTP, MRP and G.8032 for Ethernet Redundancy
- 8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
- Support PoE on/off scheduled configuration
- Support PoE alive check and auto reboot fuction
- Support Modbus TCP and Modbus/TCP
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client and NTP server protocol
- Support IP-based bandwidth management
- Support application-based QoS management
- Support Device Binding security function
- Support DoS/DDoS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL, TACACS+ and 802.1x User Authentication for security
- Syslog/SNMP Trap notification for warning of unexpected event
- Support DBU-01 backup unit device to quickly backup/restore configuration
- Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Support LLDP Protocol
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports with P.S.E. in RJ45 | 8 |
| 100/1000Base-X with SFP port | 4 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green : Power LED x 3 |
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred |
Power | |
|---|---|
| Power consumption (Typ.) | 13.2 Watts |
| PoE Output Power | 60W at 12~24VDC, 120W at 24~57VDC |
| Redundant Input power | Dual 12~57 VDC on 6-pin terminal block |
| Overload current protection | Present |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 54.3 (W) x 120 (D) x 145.1 (H) mm (2.13 x 4.72 x 5.71 inches) |
| Weight (g) | 924g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) |
| MAC Table | 8k |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 24Gbps Throughput (packet per second) : 17.856Mpps@64Bytes packet Max. Number of Available VLANs: 4096 VLAN ID Range : VID 0 to 4095 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 9.6K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security IEC 62443 Certified |
| Software Features | O-Ring Open-Ring O-Chain MRP*NOTE MSTP (RSTP/STP compatible) |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F ) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5-year |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55025, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS) IEC/EN 61000-4-4 (EFT) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | UL61010-1 | |
| MTBF | 487,579hr | |
Dimensions |  |
|---|
