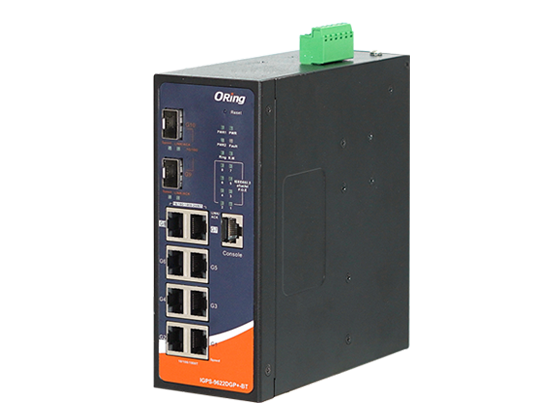

IGPS-9622DGP+-BT
Industrial 10-port Layer 2 Managed PoE++ Switch with 6x10/100/1GBase-T(X) P.S.E ports and 2x10/100/1G/2.5GBase-T(X) P.S.E ports plus 2x1G/10GBase-X, SFP+ socket
Description
IGPS-9622DGP+-BT is Layer-2 managed Gigabit Ethernet switch with 6x10/100/1000Base-T(X) P.S.E ports and 2x100/1G/2.5G Base-T(X) P.S.E ports plus 2x1G/10GBase-X SFP+ slots. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9622DGP+-BT also support Power over Ethernet, a system to transmit electrical power up to 90 watts with total 240 watts PoE budget, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-9622DGP+-BT switch has 6x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. and 2x100/1G/2.5G Base-T(X) P.S.E ports are a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 degrees C to 75 degrees C. IGPS-9622DGP+-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Features
- Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
- Support 2-ports multi-G RJ45 up to 2.5Gbps uplink
- Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings
- Support Modbus TCP protocol
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client and NTP server protocol
- Support IP-based bandwidth management
- Support application-based QoS management
- Support Device Binding security function
- Support DOS/DDOS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL, TACACS+, RADIUS and 802.1X User Authentication for security
- Support 10K Bytes Jumbo Frame
- Syslog/SNMP Trap notification for warning of unexpected event
- Support DBU-01 backup unit device to quickly backup/restore configuration
- Web-based, SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Physical ports | |
|---|---|
| Console | RS232 to RJ45 console port |
| 10/100/1000/2500Base-T(X) ports with P.S.E. in RJ45 | 2 |
| 10/100/1000Base-T(X) ports with P.S.E. in RJ45 | 6 |
| 1000/10G Base-X with SFP/SFP+ port | 2 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 port indicator | Link/ACT: Light with Green for Link indicator. Blinking with Green for act (data transmitted) Speed: Light with Green for 1000Mbps, Light with Amber for 100Mbps, Off for 10Mbps |
| PoE Indicator | Green: Indicates that PoE port has PoE power output |
Power | |
|---|---|
| Power consumption (Typ.) | 23.8 Watts without any PoE power output |
| PoE Output Power | Per PoE port up to 90 watts PoE power output (port 1~8) |
| Redundant Input power | Dual DC inputs. 50-57VDC (6-pin removeable terminal block, power input 1: pin 1 and 2, power input 2: pin 5 and 6,): IEEE 802.3af PoE output @ 50-57VDC input, IEEE 802.3at PoE+ output @ 52-57VDC input, IEEE 802.3bt (Type 4) PoE++ output @ 55-57VDC input |
| Total PoE Output Power | 240 Watts (Max.), per PoE port up to max. 90 watts |
| Overload current protection | Present |
| Reverse polarity protection | Not present, switch isn't working without any damaged |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 65 x 160.2 x 153.6mm/2.56 x 6.31 x 6.05 inch |
| Weight (g) | 1377g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3bz for 2.5GBase-T IEEE 802.3ae for 10Gigabit Ethernet IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for CoS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1d for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3af/at/bt PoE++ (Per port up to 90 watts Type-4 PoE output) |
| MAC Table | 16K |
| Packet buffer Size | 8Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 62Gbps Throughput (packet per second): 46.13Mpps@64Bytes packet Max. Number of Available VLANs: 4096 (ID Range: VID 1 to 4095) Port rate limiting: User Define |
| Jumbo frame | Up to 10K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic RADIUS/TACACS+ centralized password management SNMPv3 encrypted authentication and access security HTTPS / SSH / SSL enhance network security DOS/DDOS auto prevention IP Source Guard Per port MAC limit control Access Control List DHCP Snooping |
| Software Features | Redundant Ring (O-Ring) with recovery time less than 30ms Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging, MAC-based VLAN, IP Subnet-based VLAN Private VLAN IGMP Snooping v1/v2/v3, up to 512 groups MLD Snooping v1/v2, up to 128 groups IP-based bandwidth management Application-based QoS management Port configuration, status, statistics, monitoring, security, descriptionnDHCP Server/Client/Relay SMTP Client Modbus TCP NTP server/client IEC61850 |
| Network Redundancy | O-Ring O-Chain MSTP (RSTP/STP compatible) |
| Warning / Monitoring System | Syslog, system log, cable diagnostic, SFP/SFP+ transceiver DDM |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC (pin 3 and 4 for 6-pin removeable terminal block) |
Reset Function | |
|---|---|
| Reset Button | less than 5 sec: System reboot, greater than 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85 degrees C (-40 to 185 degrees F) |
| Operating Temperature | -40 to 75 degrees C (-40 to 167 degrees F) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||||
|---|---|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55024, EN 55032), EN50121-4 (compliant), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | IEC/EN 61000-4-2 (ESD),IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),IEC/EN 61000-4-5(Surge),IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8(PFMF) | |
| Shock | IEC 60068-2-27 | |
| Free Fall | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| MTBF | 713020.68hours @ 25 degrees C | |

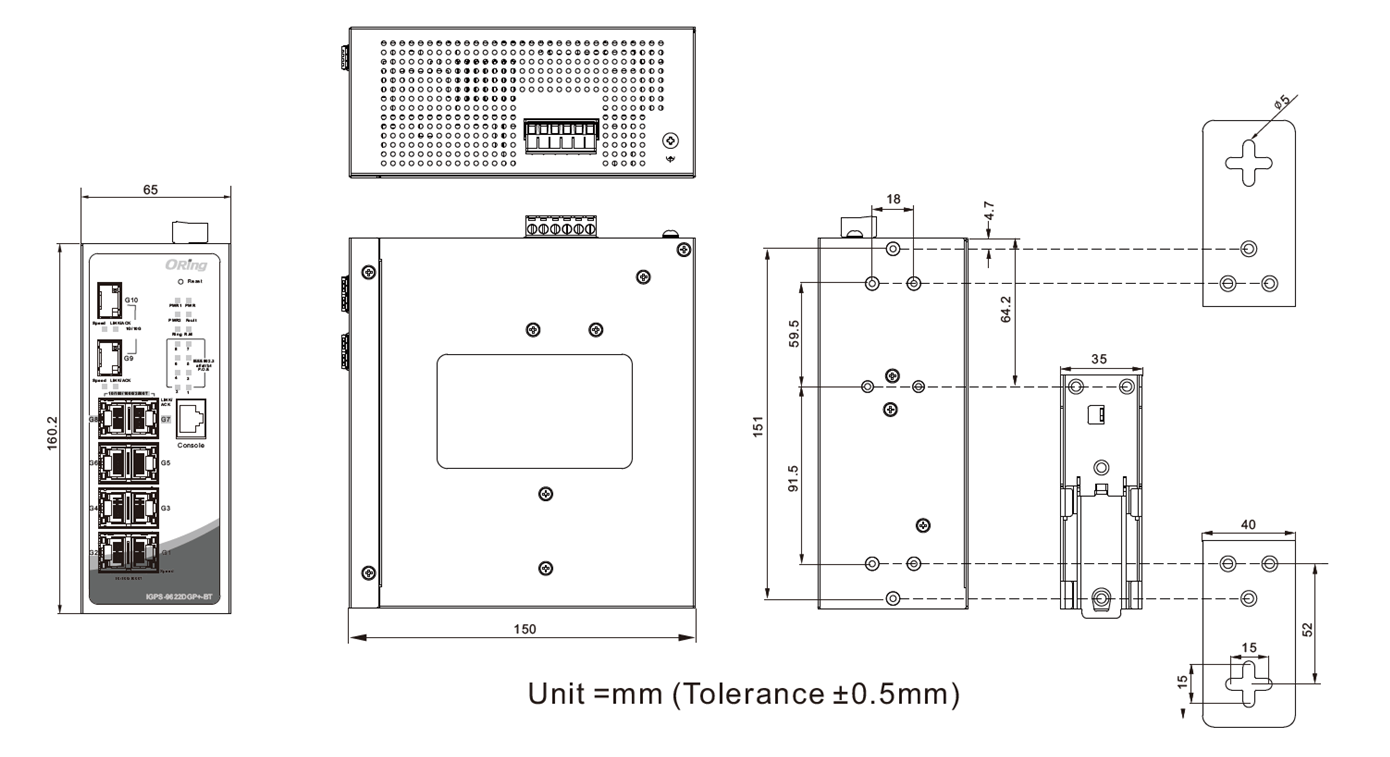

Dimensions |  |
|---|
