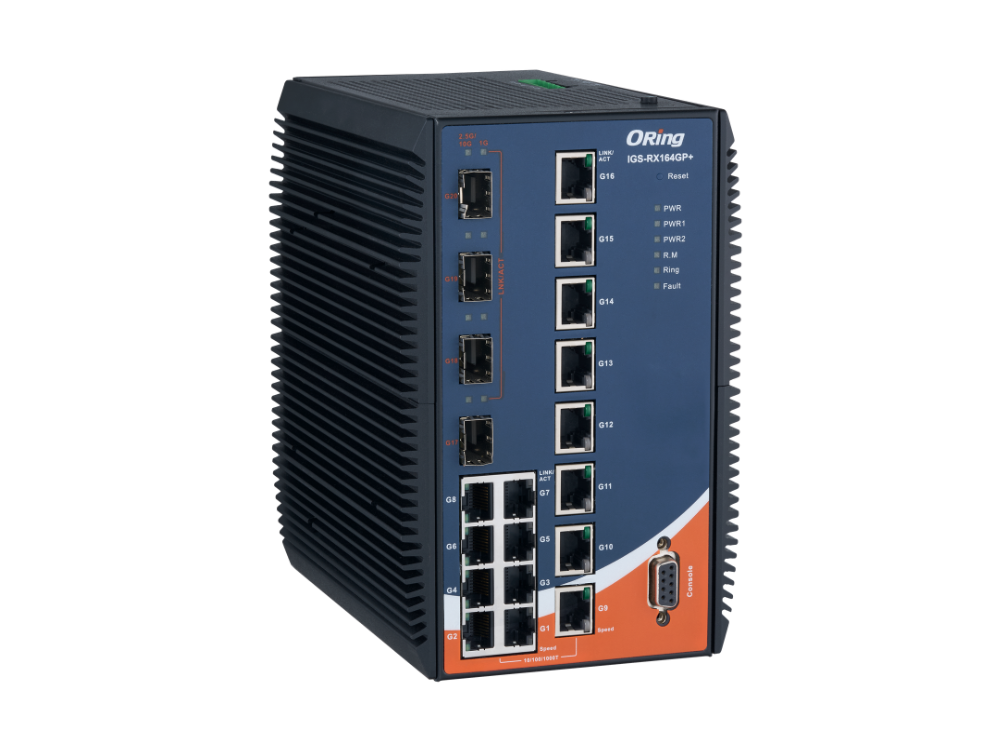

IGS-RX164GP+
16GE + 4 10G L3 Managed Ethernet Switch
Description
IGS-RX164GP+ advanced Layer 3 managed redundant ring network switch with 16x 10/100/1000Base-T(X) ports and 4x 10GBase-X SFP ports. The IGS-RX164GP+ supports routing protocols such as static routing, RIP v1/v2, OSPF and PIM which are suitable for large scale network environment. The hardware Layer 3 switch is optimized to transmit data as fast as Layer-2 switches. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 30ms), MRP and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40oC to 60oC. IGS-RX164GP+ can also be managed centralized and convenient by Open-Vision, as well as the web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Features
- Support routing protocols – Static routing, RIP v1/v2, OSPF, PIM-SM, PIM-DM, VRRP
- Support TSN freature - IEEE 802.1AS for timing & Synchronization, IEEE 802.1Qav and IEEE 802.1Qat
- Support O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) for Ethernet redundancy
- O-Chain allow multiple redundant network rings
- Provided HTTPS/SSH protocol to enhance network security
- Support application-based QoS management
- Support DoS/DDoS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN network management
- Support ACL and 802.1x User Authentication for security
- Multiple notification for warning of unexpected event
- Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Physical ports | |
|---|---|
| 10/100Base-T(X) ports in RJ45 | 16 |
| 1000/10G Base-X with SFP/SFP+ port | 4 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green : Power LED x 3 |
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 port indicator | Green for Link/Act indicator Dual color LED for speed indicator : Green for 1000Mbps, Amber for 100Mbps, Off-light for 10Mbps |
Power | |
|---|---|
| Power consumption (Typ.) | 23 Watts |
| Redundant Input power | Dual DC inputs, 12~48VDC on 6-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30, Aluminum |
| Dimensions (mm) | 116.4 (W) x 170 (D) x 180 (H) mm (4.58 x 6.69 x 7.08 inches) |
| Weight (g) | 1,530g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10Gigabit Ethernet IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 16k |
| Packet buffer Size | 16Mbit |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 112Gbps Throughput (packet per second) : 83.32Mpps@64Bytes packet Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 12K Bytes |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x)MAC-based authentication(802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Web and CLI authentication and authorization IP source guard, DHCP Snooping, Dynamic ARP Inspection Https / SSH enhance network security DOS/DDOS auto prevention |
| Software Features | TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping Application-based QoS management Port configuration, status, statistics, monitoring, security Port mirroring DHCP Server/Client/Relay SNTP Client |
| Network Redundancy | O-Ring with recovery time less than 30ms O-Chain MSTP /RSTP/STP |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 75oC (-40 to167oF) |
| Operating Humidity | 5% to 95% Non-condensing Regulatory |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55024, EN 55032), EN 50121-4 (compliant), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 8KV, Air 10KV), IEC/EN 61000-4-3 (RS: 3V), IEC/EN 61000-4-4 (EFT Power 2KV, Signal 2KV),IEC/EN 61000-4-5 (Surge: Power 4KV, Signal 4KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN60950-1 | |
| MTBF | 323,539 hrs Warranty | |
