M.2 2230 Wireless Module
The M.2 E Key series consists of full-function Wi-Fi and Bluetooth combo modules, integrating Ampak’s advanced RF design to provide reliable wireless connectivity for embedded systems.
Key Technological Advantages
Seamless roaming with advanced security for stable and secure connections
Support for Wi-Fi 6 / 6E (802.11ax) for enhanced efficiency and multi-device performance
Flexible configurations to balance performance and power consumption
High integration combining Wi-Fi and Bluetooth in a single module
Model Name

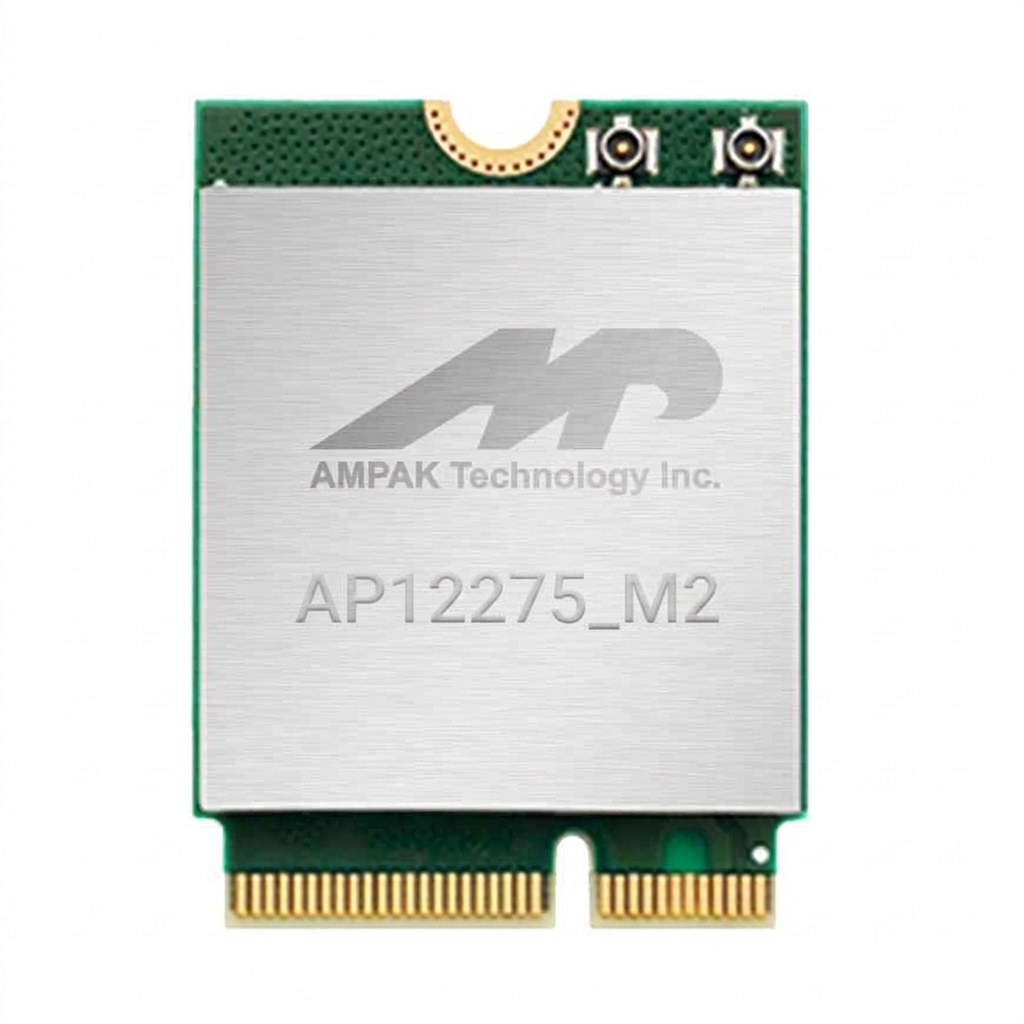

AP12275_M2P
AP12275_M2
AP12611_M2
Description
2T2R 802.11 a/b/g/n /ac/ax Wi Fi + Bluetooth 5. 3 Module
2T2R 802.11 a/b/g/n /ac/ax Wi Fi + Bluetooth 5. 3 Module
1T1R 802.11 a/b/g/n/ac/ax Wi-Fi 6E + Bluetooth 5.4 Module
Form Factor
M.2 2230
M.2 2230
M.2 2230
Wi-Fi Standard
2T2R 802.11 ax (Wi-Fi 6)
2T2R 802.11 ax (Wi-Fi 6)
1T1R 802.11 ax (Wi-Fi 6E)
Wi-Fi Frequency
2.4GHz / 5GHz
2.4GHz / 5GHz
2.4 GHz / 5 GHz / 6 GHz
Wi-Fi Host Interface
PCIe v3.0 (Gen1)
SDIO v3.0 / 2.0
SDIO v3.0 / 2.0
Bluetooth
Bluetooth 5.3
Bluetooth 5.3
Bluetooth 5.4
Max PHY Rate
1200 Mbps
1200 Mbps
600 Mbps
Dimension
22*30*3.3mm
22*30*3.3mm
22*30*2.8mm
Operating Temperature
-30°C to 85°C
-30°C to 85°C
-40°C to 80°C
Supported Drivers
Linux, Android
Linux, Android
Linux, Android
Certification
CE, FCC, IC, TELEC, NCC, SRRC, BQB
CE, FCC, IC, TELEC, BQB
CE, FCC, IC, TELEC, NCC, SRRC, BQB
The Ampak M.2 2230 series modules offer high environmental adaptability and outstanding performance, making them ideal for the following applications:
