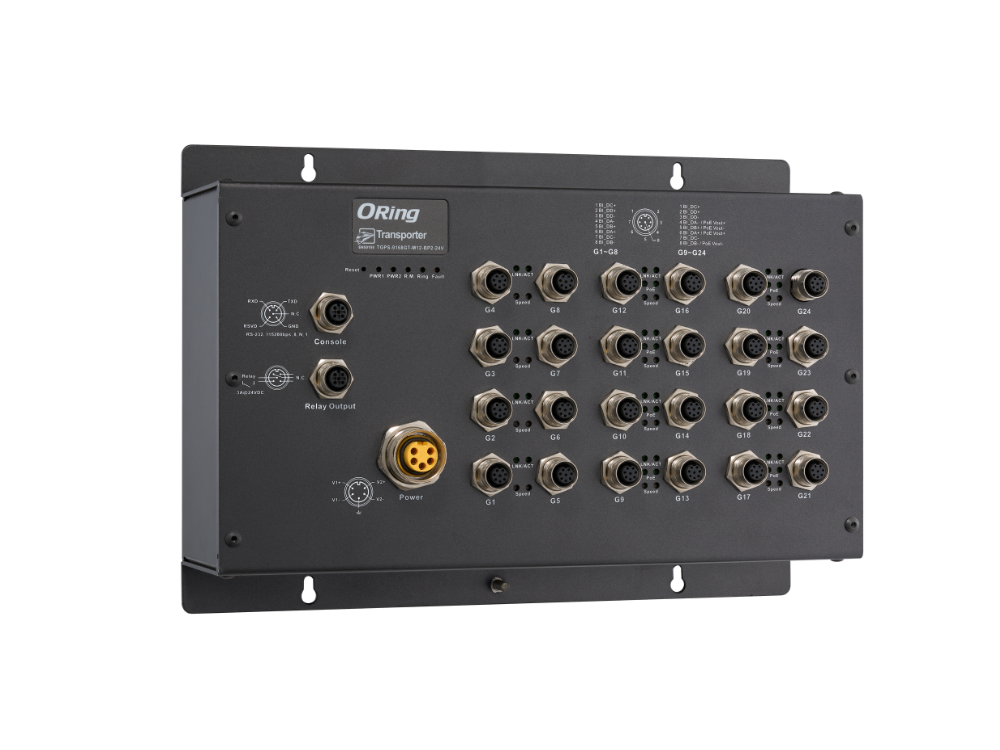

TGPS-9168GT-M12-BP2-24V
EN50155 Managed PoE Switch with 16GE PoE and 8GE (2-pair Bypass), IEEE 802.3af/at, 24VDC
Description
ORing’s TransporterTM series managed PoE Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TGPS-9168GT-M12-BP2-24V is managed Redundant Ring Ethernet switch with 16x10/100/1000Base-T(X) P.S.E. and 8x10/100/1000Base-T(X) ports which are specifically designed for the toughest and fully compliant with EN50155 requirement. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP*note, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. TGPS-9168GT-M12-BP2-24V also supports Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TGPS-9168GT-M12-BP2-24V switch has 16x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. TGPS-9168GT-M12-BP2-24V includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. And support wide operating temperature from -40oC to 75oC. TGPS-9168GT-M12-BP2-24V can also be managed centralized and conveniently by Open-Vision, Except the Web-based interface, Telnet, and console (CLI) configuration. Therefore, the switch is one of the most reliable choices for EN50155 highly managed Ethernet application
*NOTE: This function is available by request only
Features
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings
- Supports standard IEC 62439-2 MRP*note (Media Redundancy Protocol) function
- Isolation power included
- Supports IEEE 802.3af/at compliant PoE with maximum 15.4/30Watts per port
- Supports PoE scheduled configuration and PoE auto-ping check function
- Supports IEEE 1588v2 clock synchronization
- Supports IPV6 new internet protocol version
- Supports Modbus TCP protocol
- Supports IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Supports IP-based bandwidth management
- Supports application-based QoS management
- Supports Device Binding security function
- Supports DOS/DDOS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- SupportsSNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Supports ACL, TACACS+ and 802.1x User Authentication for security
- Supports 9.6K Bytes Jumbo Frame
- Multiple notifications for warning of an unexpected event
- Web-based, Telnet, Console (CLI), and Windows utility(Open-Vision) configuration
- SupportsLLDP Protocol
- Wall mounting enabled
*NOTE: This function is available by request only
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports with P.S.E. in M12 | 16 x M12 connectors (8-pin A-coding, female) |
| 10/100/1000Base-T(X) ports in M12 | 8 x M12 connectors (8-pin A-coding, female) |
| RS-232 Serial Console port | RS-232 in M12 connector (female A-coding). Baud rate setting: 115200bps, 8, N, 1 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 2 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Red: Indicate unexpected event occurred |
| 10/100/1000Base-T(X) M12 Port Indicator | Top Green LED for Link/Act indicator: Green for link-up, Off for link-down, Blinking for Act. Bottom dual color LED for Ethernet speed indicator: Green for 1000Mbps, Amber for 100Mbps, Off for 10Mbps |
| 10/100/1000Base-T(X) M12 P.S.E. Port Indicator | Top Green LED for Link/Act indicator: Green for link-up, Off for link-down, Blinking for Act. Middle Green LED for PoE enabled indicator: Green for PoE enabled, Off for disable. Bottom dual color LED for Ethernet speed indicator: Green for 1000Mbps, Amber for 100Mbps, Off for 10Mbps |
Power | |
|---|---|
| Power consumption (Typ.) | 26 Watts (PoE output not include) |
| Redundant Input power | Dual 24 (16.8~30VDC) on 5-pin M23 female connector |
| Total PoE Output Power | 24VDC@75Watts Max. ≧24VDC@120Watts Max. |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Protection / Certification | |
|---|---|
| Safety | IEC/EN 62368-1 |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30, Iron |
| Dimensions (mm) | 320 (W) x 91.3 (D) x 228 (H) mm 12.60 (W) x 3.59 (D) x 8.98 (H) inch |
| Weight (g) | 3463 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.) |
| MAC Table | 8K |
| Packet buffer Size | 4Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: bandwidth: 48Gbps Max. Number of Available VLANs: 4095 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 9.6K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding, female connector) |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B, EN 50121-3-2(EN 50155) | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | IEC/EN 62368-1 | |
| Other | EN 50155 | |
| MTBF | 161351.3292 hrs. | |
Dimensions |  |
|---|
