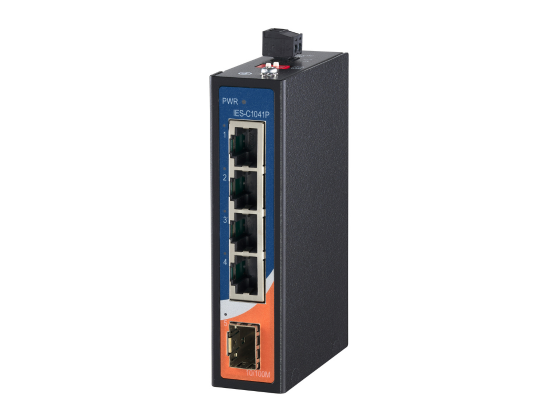

IES-C1041P

IES-C1041P

4FE + 1 SFP Cost-effective Unmanaged Ethernet Switch

Description

IES-C1041P series are unmanaged Ethernet switches with 4/6 x 10/100Base-T(X) ports and 1/2x100Base-FX ports,SFP socket. In addition, the wide operating temperature range from -10oC to 60oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.

Features

  • IES-C1041P provides 4x 10/100Base-T(X) ports and 1x100Base-FX,SFP Socket
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40 protection class
  • -10 to 60°C wide operating temperature range
  • DIN-Rail mounting enabled

Physical ports

10/100Base-T(X) ports in RJ454
100Base-FX with SFP port1

LED Indicators

Power indicatorPWR
100Base-FX Fiber port IndicatorLink/Act
10/100Base-T(X) RJ45 Port IndicatorLink/Act

Electrical Specification

Power consumption (Typ.)4W

Physical Characteristic

EnclosureIP-40
Dimensions (mm)26×103×64 mm
Weight (g)137 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow control
MAC Table1K
Packet buffer Size448Kbits
ProcessingStore-and-Forward

Environmental

Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-10 to 60°C (14 to 140°F)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

QIGVersionRelease DateSize
IES-C1041P Quick Installation GuideJuly 06, 2023546.82 kB

DatasheetVersionRelease DateSize
IES-C1041P DatasheetJuly 06, 2023452.13 kB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF)
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1,UL 61010-1, UL 61010-2-201
MTBF463236 hrs
