IES-3082GP-LA

IES-3082GP-LA

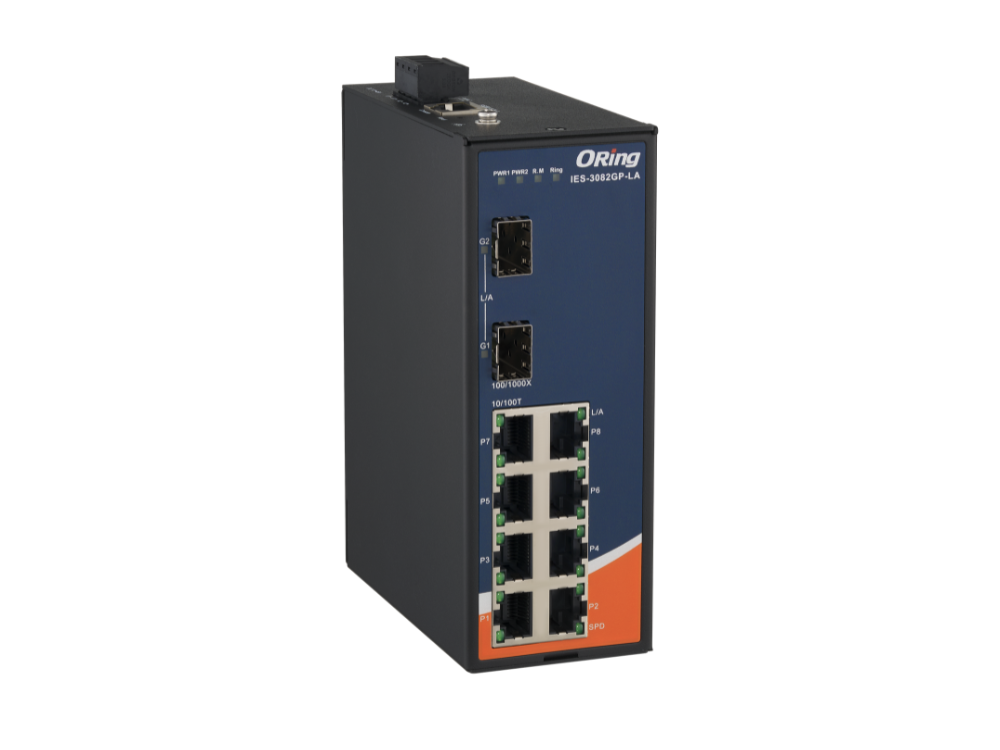

Industrial 10-port managed Ethernet switch with 8x 10/100Base-T(X) and 2x 100/1000Base-FX SFP socket


Description

IES-3082GP-LA is an industrial layer 2 managed redundant Ethernet switch designed to provide robust protection for mission-critical applications. By employing advanced rapid recovery technologies, it ensures uninterrupted operation even in the face of network interruptions and temporary malfunctions. With a broad operating temperature range spanning from -40 to 75°C, it accommodates diverse operational environments with ease. This makes the switch a preferred and dependable solution for highly managed Ethernet applications that prioritize reliability and resilience.

Features

  • Network redundancy: MSTP/RSTP/STP (IEEE 802.1s/w/D), O-Ring/O-Chain and MRP (Media Redundancy Protocol)
  • Support Modbus TCP protocol
  • IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
  • Port Trunking for easy of bandwidth management
  • Event notification through Syslog, Email and SNMP trap
  • RMON for traffic monitoring
  • Support LLDP protocol
  • Port lock to prevent access from unauthorized MAC address
  • Rigid IP-30 housing design
  • DIN-Rail mounting enabled
  • Multiple notifications for warning of unexpected events
  • Web-based, Telnet and Console (CLI) configuration

Physical ports

10/100Base-T(X) ports in RJ458
Reset1
100/1000Base-X with SFP port2
RS-232 Serial Console port1

LED Indicators

Power indicatorGreen: Power LED x 2
Ring Master Indicator (R.M.)Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)Green: Indicates that the system operating in O-Ring mode
Green Blinking: Indicates that the Ring is broken.
10/100Base-T(X) RJ45 Port IndicatorGreen for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.
Green for Speed indicator: On for 100Mbps, Off for 10Mbps
100/1000Base-X SFP Port IndicatorGreen for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.

Power

Power consumption (Typ.)6 Watts
ConnectorTerminal Block
Redundant Input powerDual 12~48V DC
Overload current protectionPresent
Reverse polarity protectionPresent (not working)

Physical Characteristic

EnclosureIP-30
Dimensions (mm)54.3 (W) x 107 (D) x 145 (H)mm
2.138 (W) x 4.213 (D) x 5.709 (H) inch
Weight (g)676 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table8K
Packet buffer Size4.1Mbits
Priority Queues4
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 10 µs
Switching bandwidth: 5.6Gbps
Max. Number of Available VLANs: 4096
VLAN ID Range: VID 1 to 4095
IGMP multicast groups: 1024
Port rate limiting: User Define
Security FeaturesEnable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
SNMP V1/V2c/V3 encrypted authentication and access security
Software FeaturesSTP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
DHCP Server / Client support Port Trunk support
Modbus TCP
Network RedundancyO-Ring
O-Chain
MRP
MSTP/RSTP/STP
Warning / Monitoring SystemSyslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support

Reset Function

Reset ButtonLess than 5 sec: System reboot
More than the 5 sec: Factory default

Environmental

Storage Temperature-40 to 85℃ (-40 to 185℉)
Operating Temperature-40 to 75℃ (-40 to 167℉)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 Years

Downloads

DatasheetVersionRelease DateSize
DataSheet_IES-3082GP-LAJuly 17, 2024993.19 kB

QIGVersionRelease DateSize
QIG_IES-3000 SeriesJuly 17, 2024845.58 kB

UserManualVersionRelease DateSize
IES_IGS_IGPS 3000-LA Series GUI ManualJuly 02, 20241.69 MB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15 B
EMIEN 55032, EN 61000-6-4, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
ShockIEC60068-2-27
Free FallIEC60068-2-31
VibrationIEC60068-2-6
SafetyEN 62368-1
