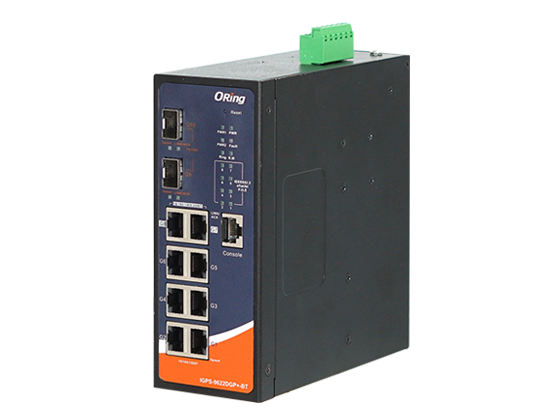

IGPS-9622DGP+-BT

Description

IGPS-9622DGP+-BT is Layer-2 managed Gigabit Ethernet switch with 6x10/100/1000Base-T(X) P.S.E ports and 2x100/1G/2.5G Base-T(X) P.S.E ports plus 2x1G/10GBase-X SFP+ slots.  The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9622DGP+-BT also support Power over Ethernet, a system to transmit electrical power up to 90 watts with total 240 watts PoE budget, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-9622DGP+-BT switch has 6x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. and 2x100/1G/2.5G Base-T(X) P.S.E ports are a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 degrees C to 75 degrees C.  IGPS-9622DGP+-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.  Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Features

• Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
• Support 2-ports multi-G RJ45 up to 2.5Gbps uplink
• Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allow multiple redundant network rings
• Support Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• Support SMTP client and NTP server protocol
• Support IP-based bandwidth management
• Support application-based QoS management
• Support Device Binding security function
• Support DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Support ACL, TACACS+, RADIUS and 802.1X User Authentication for security
• Support 10K Bytes Jumbo Frame
• Syslog/SNMP Trap notification for warning of unexpected event
• Support DBU-01 backup unit device to quickly backup/restore configuration
• Web-based, SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Rigid IP-30 housing design

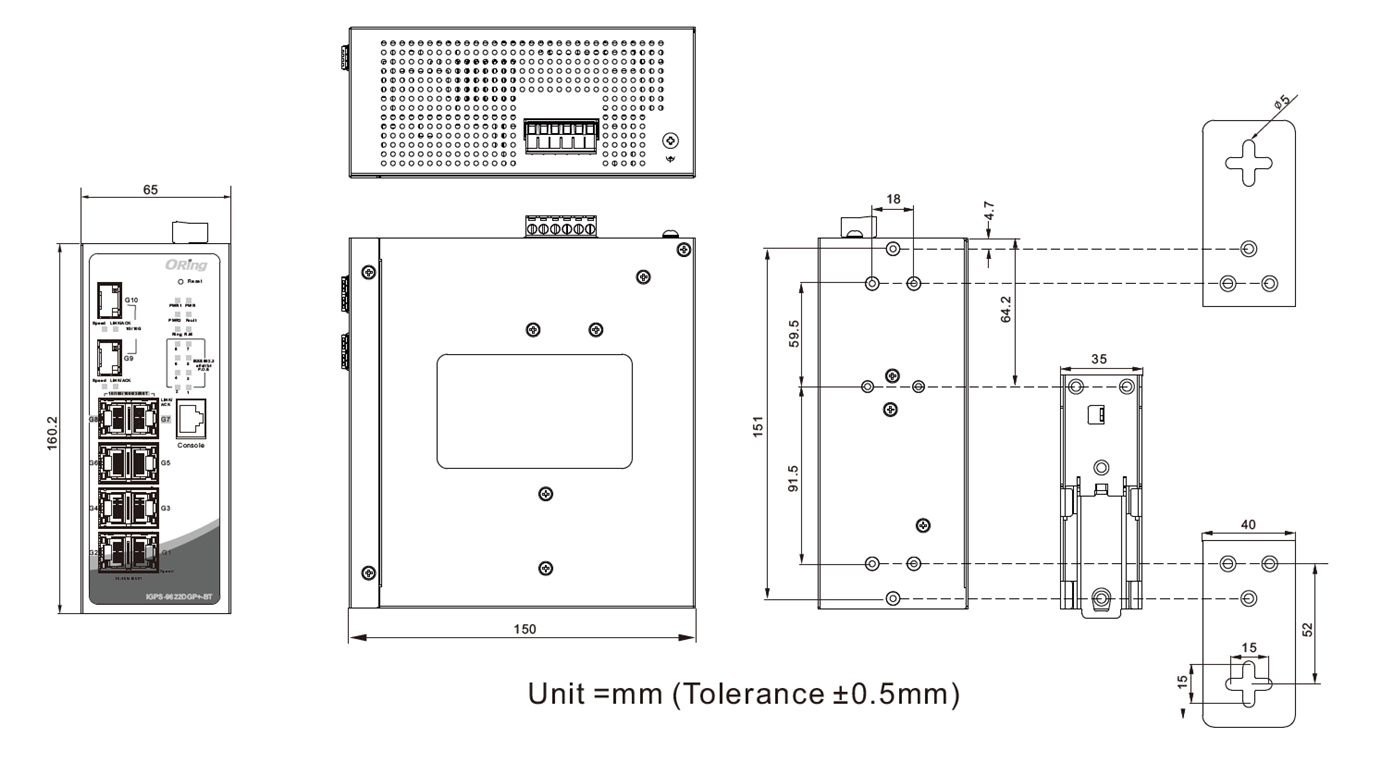

• DIN-Rail and wall mounting enabled
