Description

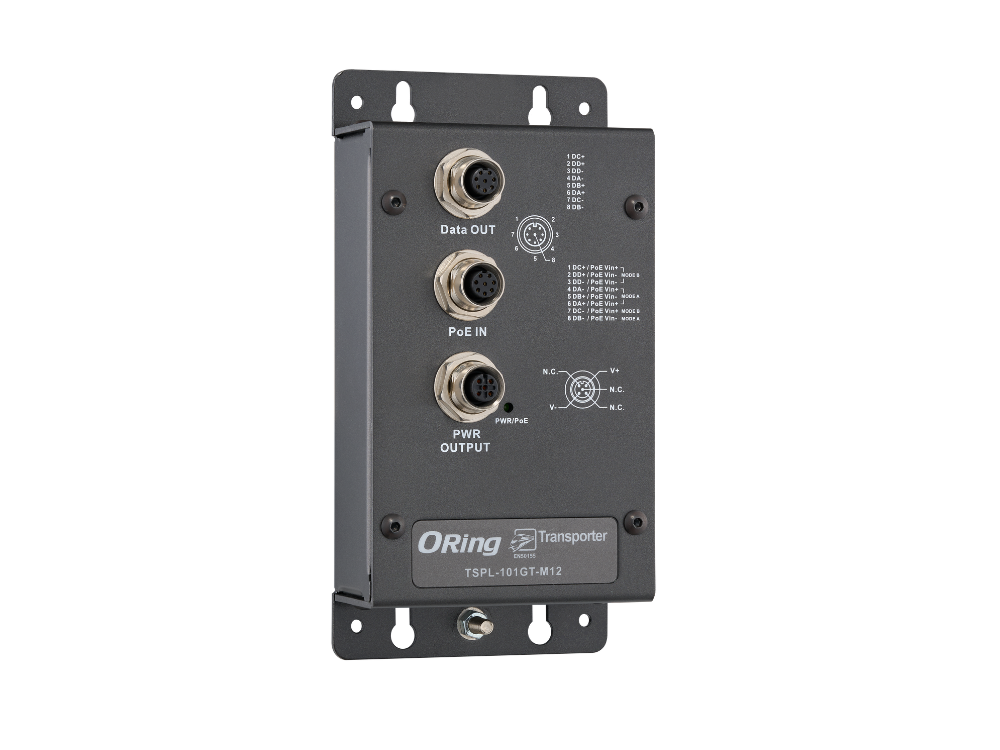

ORing’s TransporterTM series PoE Splitters are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TSPL-101GT-M12 series is high power PoE Splitter for use in Power over Ethernet systems which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial environments. TSPL-101GT-M12 series EN50155 PoE Splitter use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. With Ethernet Input (data + power) port and Output (data only) port, TSPL-101GT-M12 series may split power from existing PoE connection and convert up to 24VDC/1.125A or 12VDC/1.6A for power hungry applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented for use as a DC power supply.
Features
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Fully compliant with IEEE802.3at standard
- Supports 10/100/1000Base-T(X) for PoE In and Data Out
- Power Short Circuit Protection for Power Output
- Auto protection for Over Voltage Power Input
- Supports Power Outputs up to 25Watts Max.
- Ultra-rugged enclosure M12 connector for toughest industrial usages
- Wall Mounting enabled
EN50155 Industrial 1-port Gigabit High Power PoE Splitter, IEEE802.3at standard compliant, 12VDC output, M12 connecto
EN50155 Industrial 1-port Gigabit High Power PoE Splitter, IEEE802.3at standard compliant, 24VDC output, M12 connector
Physical ports |
|---|
| 10/100/1000Base-T(X) ports with P.D. in M12 | 1 x M12 connectors (8-pin A-coding, female) |
| 10/100/1000Base-T(X) ports in M12 | 1 x M12 connectors (8-pin A-coding, female) |
LED Indicators |
|---|
| Power Indicator (Power) | Green: Power LED x 1
Green On: Power is on and functioning Normally. |
Power |
|---|
| Power Output | 24VDC / 1A Max. |
| Power Input | 36-57VDC from P.S.E. |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Physical Characteristic |
|---|
| Enclosure | IP-40, Iron |
| Dimensions (mm) | 88.9 (W) x 40 (D) x 178.2 (H)mm3.5 (W) x 1.57 (D) x 7.0 (H) inch |
| Weight (g) | 385 g |
Environmental |
|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉) |
| Operating Humidity | 5% to 95% Non-condensing |
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B, EN 50121-3-2(EN 50155) |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | IEC / EN 62368-1 |
| Other | EN 50155 |
| MTBF | 2397243 hrs. |
Dimensions |
|---|
 |
ORing offers a comprehensive portfolio of rugged industrial Ethernet switches, from cost-effective unmanaged and PoE models to advanced Layer 2/3 managed switches enabling precise control. Our switches can address connectivity needs in a variety of vertical markets.
