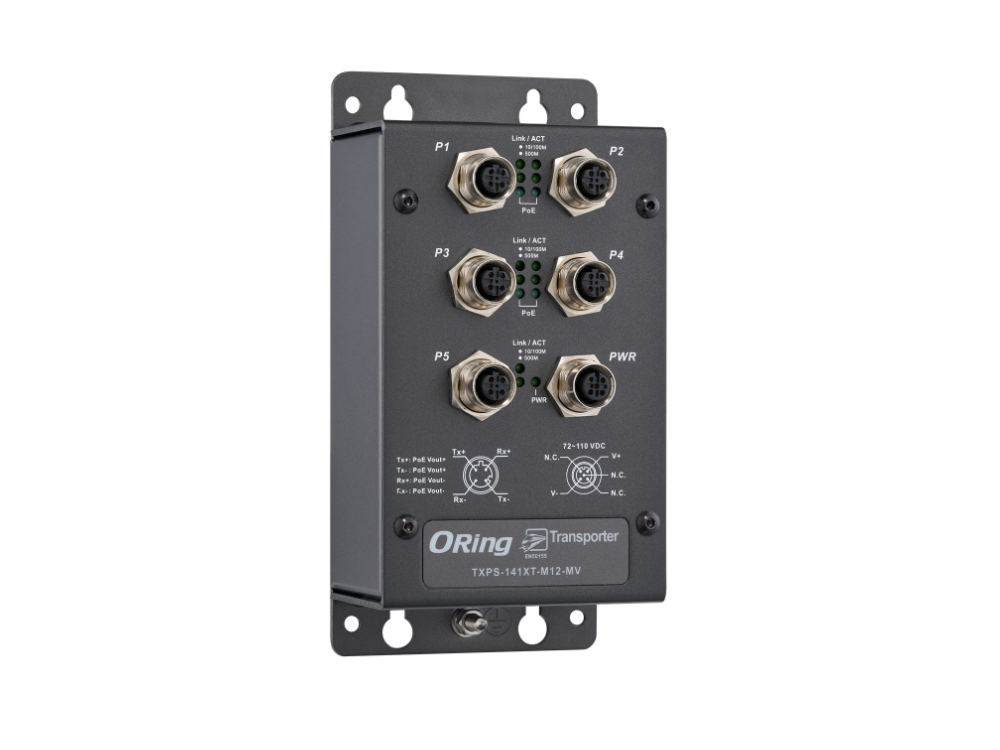

TXPS-141XT-M12-MV

TXPS-141XT-M12-MV

EN50155 Unmanaged PoE Switch with 4x 10/100/500Base-T(X) PoE and 1x 10/100/500Base-T(X), M12 connector, IEEE 802.3af/at, 110VDC


Description

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.  TXPS-141XT-M12 series are unmanaged PoE Ethernet switch with 4x10/100/500Base-T(X) P.S.E. ports and 1x10/100/500Base-T(X) port which is compliant with EN50155 requirement.  It is specifically designed for the toughest industrial environments.  TXPS-141XT-M12 series EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.  TXPS-141XT-M12 series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.  TXPS-141XT-M12 series switch has 4x10/100/500Base-T(X) P.S.E. (Power Sourcing Equipment) port to provide power in a PoE setup.  The very wide operating temperature range from -40 oC to 75oC can satisfy most operating environment.

Features

  • Supports 4 x 10/100/500 Base-T(X) with P.S.E. PoE ports
  • 4 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support flow control
  • Support broadcast storm protection
  • Ultra-rugged enclosure M12 connector for toughest industrial usages
  • Wall mounting enabled

TXPS-141XT-M12-24V
EN50155 5-port unmanaged PoE Ethernet switch with 4x10/100/500Base-T(X) P.S.E. and 1x10/100/500Base-T(X), M12 connector, 24VDC power input

TXPS-141XT-M12-MV
EN50155 5-port unmanaged PoE Ethernet switch with 4x10/100/500Base-T(X) P.S.E. and 1x10/100/500Base-T(X), M12 connector, 110VDC power input

Physical ports

10/100/500Base-T(X) ports in M121 x M12 connector (4-pin D-coding, female)
10/100/500Base-T(X) ports with P.S.E. in M124 x M12 connector (4-pin D-coding, female)

LED Indicators

10/100/500Base-T(X) M12 P.S.E. Port IndicatorTop Green for port Link/Act at 10/100Mbps
Middle Green for port Link/Act at 500Mbps
Bottom Blue for PoE indicator
10/100/500Base-T(X) M12 Port IndicatorTop Green for port Link/Act at 10/100Mbps
Bottom Green for port Link/Act at 500Mbps
Power Indicator (Power)Green: Power LED x 1
PoE IndicatorGreen: On for PoE enabled, Off for PoE disabled

Power

Power consumption (Typ.)5 Watts (power consumption of P.S.E. is not included)
Power Input72~110VDC power input on M12 connector (5-pin M12 A-coding)
Total PoE Output Power60 Watts
Overload current protectionPresent
Reverse polarity protectionPresent

Protection / Certification

SafetyEN 60950-1

Physical Characteristic

EnclosureIP-30 Iron
Dimensions (mm)88.9 (W) x 55 (D) x 178.2 (H) mm3.50 (W) x 2.17 (D) x 7.02 (H) inch
Weight (g)771 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table4K
Packet buffer Size1.5Mb
Priority Queues4
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 7 µs
Switching bandwidth: 1Gbps

Environmental

Storage Temperature-40 to 85℃ (-40 to 185℉)
Operating Temperature-40 to 70℃ (-40 to 158℉)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

DatasheetVersionRelease DateSize
DataSheet_TXPS-141XT-M12_SeriesJuly 04, 2024498.06 kB

Regulatory Approvals

EMCCE EMC (EN 55024, EN 55022), FCC Part 15 B, EN 50155(EN 50121-1, EN 50121-3-2)
EMIEN 55022, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
ShockIEC60068-2-27
Free FallIEC60068-2-31
VibrationIEC60068-2-6
SafetyEN 60950-1
OtherEN 50155
MTBF355890.42 hrs.
