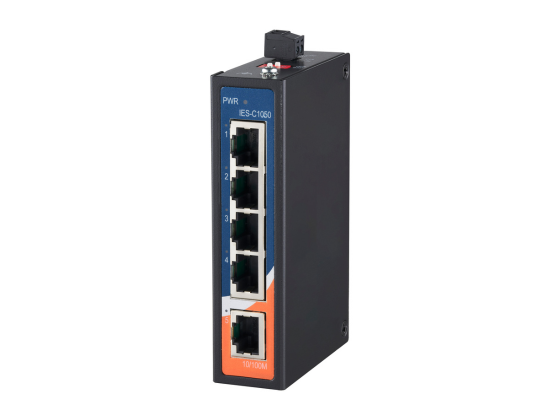

IES-C1050

IES-C1050

5FE Cost-effective Unmanaged Ethernet Switch

Description

IES-C1050 is an unmanaged Ethernet switch with 5x 10/100Base-TX ports . In addition, the operating temperature range from -10°C to 60°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.

Features

  •  5x 10/100Base-TX ports
  •  Compact size for easy installation
  •  QoS supported to process critical data in heavy traffic
  •  IP40 protection
  •  -10 to 60°C operating temperature range
  •  DIN-Rail mounting enabled

IES-C1050
Industrial 5-port unmanaged Ethernet switch

Physical ports

10/100Base-T(X) ports in RJ455

LED Indicators

Power Indicator (Power)PWR

Power

Power consumption (Typ.)3W
Power Input9.6~60VDC/24VAC (18~30 VAC) on 2-pin terminal block

Electrical Specification

Power consumption (Typ.)3W

Physical Characteristic

EnclosureIP-40
Dimensions (mm)26×103×64 mm
Weight (g)145 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
MAC Table1K
Packet buffer Size448Kbits

Environmental

Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-10 to 60°C (14 to 140°F)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

DatasheetVersionRelease DateSize
IES-C1050 DatasheetJuly 06, 2023476.43 kB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF)
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1, UL 61010-1, UL 61010-2-201

Dimensions
