Description

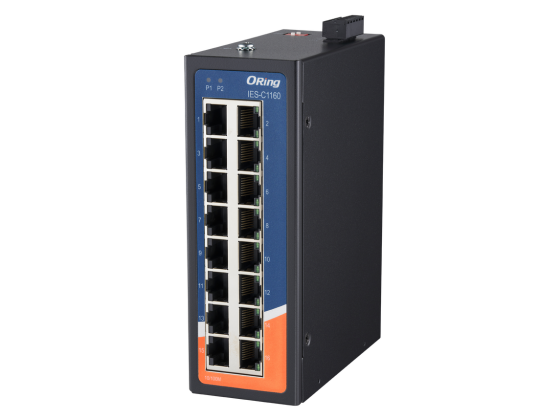

IES-C1160 unmanaged Ethernet switches with 16 x 10/100Base-T(X) RJ45 ports. In addition, the wide operating temperature range from -10oC to 60oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.
Features
- Support 16 x 10/100Base-T(X) ports ,RJ45 connector
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- Support 9K Bytes Jumbo Frame
- IP40 protection class
- -10 to 60°C wide operating temperature range
- DIN-Rail mounting enabled
Physical ports |
|---|
| 10/100Base-T(X) ports in RJ45 | 16 |
LED Indicators |
|---|
| Power indicator | PWR |
| 10/100Base-T(X) RJ45 Port Indicator | LNK/ACT |
Electrical Specification |
|---|
| Power consumption (Typ.) | 10W |
Physical Characteristic |
|---|
| Enclosure | IP-40 |
| Dimensions (mm) | 50 ×143 ×110 mm |
| Weight (g) | 540 g |
Technology |
|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control |
| MAC Table | 8K |
| Packet buffer Size | 4Mbits |
| Processing | Store-and-Forward |
Environmental |
|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% to 95% Non-condensing |
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | EN 62368-1，UL 61010-1, UL 61010-2-201 |
Dimensions |
|---|
 |
