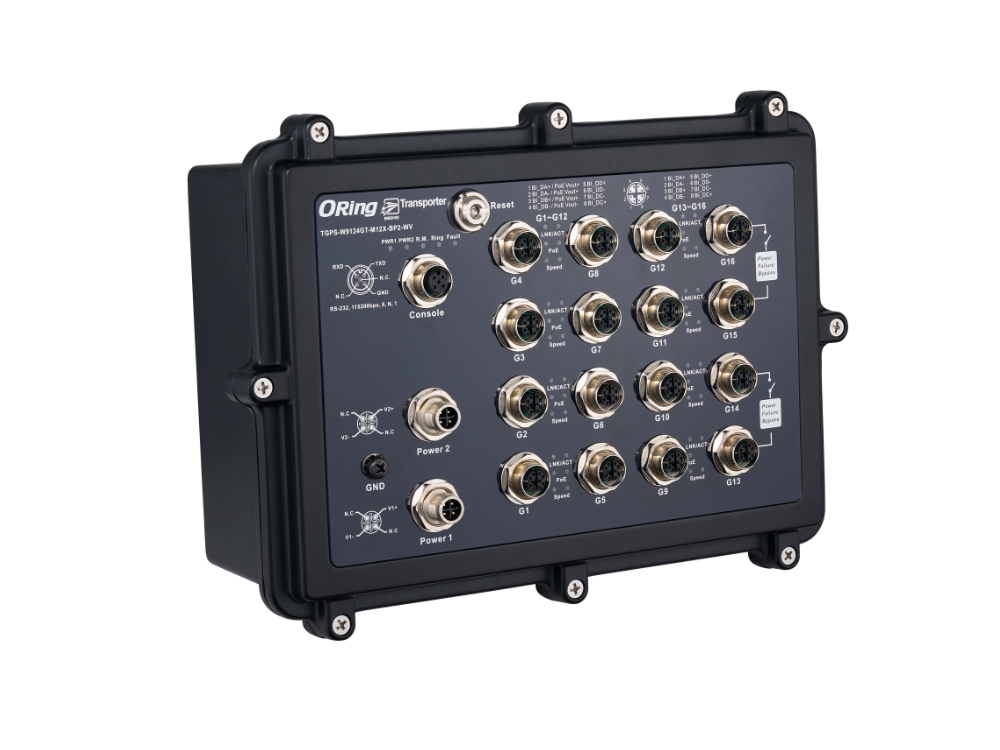

TGPS-W9124GT-M12X-BP2-WV-IP54

Description

ORing TGPS-W9124GT-M12X-BP2-WV-IP54 is a managed PoE Gigabit Ethernet switch from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It features twelve 10/100/1000Base-T(X) Power Sourcing Equipment (PSE) ports with PoE output up to 30W per port, four 10/100/1000Base-T(X) uplink ports, and two bypass port sets that maintain network integrity during power loss or maintenance. Built to IP54 waterproof standards, it operates across a temperature range of −40°C to +75°C. The switch supports O-Ring (recovery time under 30ms over 250 units), O-Chain, ERPS v1/v2, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) redundancy protocols to protect mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration.

Features

• Leading EN50155-compliant Ethernet switch for rolling stock application
• IEC 62443-4-1 Certified, with cybersecurity features aligned to IEC 62443-4-2.
• Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• Supports standard ITU-T G.8032 ERPS v1/v2 for Ethernet Redundancy
• Supports IEEE 802.3af/at compliant PoE with a maximum 15.4/30Watts per port
• Supports PoE scheduled configuration and PoE auto-ping check function
• Supports isolated power protection
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new Internet Protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notifications for warning of an unexpected event
• Web-based, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Supports LLDP Protocol
• Supports S3 level power interrupt protection.
• Supports isolated power protection included
• Wall mounting enabled
• Supports IP-54 grade waterproof design
