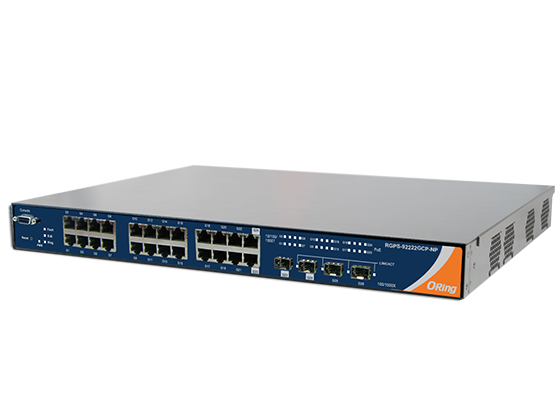

RGPS-92222GCP-NP-LP

RGPS-92222GCP-NP-LP

22GE PoE + 2G Combo PoE + 2G SFP Managed Ethernet Switch, IEEE 802.3af/at, Low Watts Power Supply included

Description

RGPS-92222GCP-NP series are gigabit managed redundant ring PoE switch with 22x 10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 2x Gigabit combo IEEE802.3at P.S.E. ports and 2x100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-92222GCP-NP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each RGPS-92222GCP-NP switch has (22+2)x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. RGPS-92222GCP-NP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber PoE Ethernet application.

Features

  • 24 port P.S.E. fully compliant with IEEE802.3at
  • Support STP/RSTP/MSTP, O-Ring/O-Chain, MRP and G.8032
  • Support PoE scheduled configuration and PoE auto-ping check function
  • Support IPV6 new internet protocol version
  • Support Modbus TCP and Ethernet/IP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+ and 802.1x User Authentication for security
  • SFP socket support DDM function (Port 25~26 only)
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • 19 inches rack mountable design




RGPS-92222GCP-NP
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket

RGPS-92222GCP-NP-P_EU
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket EU power cord

RGPS-92222GCP-NP-LP_EU
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket EU power cord

RGPS-92222GCP-NP-P_JP
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket JP power cord

RGPS-92222GCP-NP-LP_JP
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket JP power cord

RGPS-92222GCP-NP-P_US
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket US power cord

RGPS-92222GCP-NP-LP_US
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket US power cord

RGPS-92222GCP-NP-P_UK
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket UK power cord

RGPS-92222GCP-NP-LP_UK
Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket UK power cord

Physical ports

Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports2
10/100/1000/2500Base-T(X) ports with P.S.E. in RJ4522
100/1000Base-X with SFP port2
RS-232 Serial Console portRS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1

LED Indicators

Power Indicator (Power)Green : Power indicator
Ring Master Indicator (R.M.)Green : Indicates that the system is operating in O-Ring Master
O-Ring Indicator (Ring)Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicatorDual color LED for Speed/Link/Act
Green : 1000Mbps Link/Act
Amber : 10/100Mbps Link/Act
100/1000Base-X SFP Port IndicatorGreen for port Link/Act.
PoE IndicatorGreen : PoE enabled LED x 24

Power

Power consumption (Typ.)37 Watts (P.D. not included)
PoE Output Power30W/pre port
Power Input100~240VAC with power socket
Total PoE Output Power450 Watts power supply included (320W power budget)
Overload current protectionPresent

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table8K
Priority Queues8
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 7 us Switching bandwidth: 52Gbps
Max. Number of Available VLANs: 4095
VLAN ID Range : VID 1 to 4094
IGMP multicast groups: 256 for each VLAN
Port rate limiting: User Define
Jumbo frameUp to 9.6K Bytes
Security FeaturesDevice Binding security feature Enable/disable ports, MAC based port security
Port based network access control (802.1x)
Single 802.1x and Multiple 802.1x
MAC-based authentication
QoS assignment
Guest VLAN
MAC address limit
TACACS+
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Web and CLI authentication and authorization
Authorization (15 levels)
IP source guard
Software FeaturesIEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP)
MSTP (RSTP/STP compatible)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP v2/v3 Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client
DHCP Relay
Modbus TCP
DNS client proxy
SMTP Client
NTP server
Network RedundancyO-Ring Open-Ring
O-Chain
MRP
MSTP (RSTP/STP compatible)

Downloads

DatasheetVersionRelease DateSize
RGPS-92222GCP-NP_SERIES DatasheetJuly 06, 20232.06 MB

QIGVersionRelease DateSize
RGPS-92222GCP-NP_SERIES Quick Installation GuideJuly 06, 2023233.88 kB

UserManualVersionRelease DateSize
RGPS-92222GCP-NP_SERIES User ManualJuly 06, 20234.57 MB

OtherVersionRelease DateSize
RGPS-92222GCP-NP_SERIES Modbus TCP / Ethernet IP Setting guideJuly 06, 2023978.08 kB

FirmwareVersionRelease DateSize
RGPS-92222GCP-NP_SERIES FirmwareJuly 06, 20233.47 MB

CertificationVersionRelease DateSize
RGPS-92222GCP-NP_SERIES CertificationJuly 06, 2023274.78 kB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMSIEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS)
IEC/EN 61000-4-4 (EFT)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (CS)
IEC/EN 61000-4-8(PFMF)
IEC/EN 61000-4-11 (DIP))
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1
