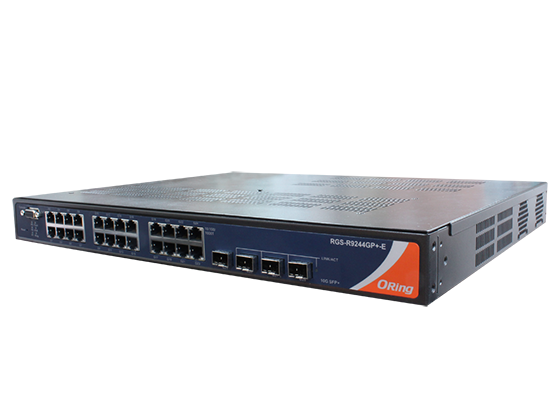

RGS-R9244GP+-E

RGS-R9244GP+-E

24GE + 4 1G/10G SFP L3 Managed Ethernet Switch, AC and Dual DC input

Inquiry

Description

RGS-R9244GP+ series are Layer-3 Gigabit managed redundant ring Ethernet switch with 24x10/100/1000Base-T(X) ports and 4x1G/10GBase-X SFP+ ports. These switches support Layer-3 function like RIP and static routing. Also RGS-R9244GP+ series support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) /Open-Ring/O-Chain/Fast Recovery and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGS-R9244GP+ series support wide operating temperature from -20°C to 60°C. RGS-R9244GP+ series can also be managed centralized and convenient by Open-Vision as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and fiber Ethernet application.

Features

  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Support Layer 3 routing, RIP and static routing function
  • Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Support IPv6 new internet protocol version
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • SFP socket support DDM function
  • Multiple notification for warning of unexpected event
  • Support LLDP Protocol
  • 19 inches rack mountable design
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
RGS-R9244GP+-E_EU
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,EU power cord
RGS-R9244GP+_EU
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,EU power cord
RGS-R9244GP+-E_JP
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,JP power cord
RGS-R9244GP+_JP
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,JP power cord
RGS-R9244GP+-E_US
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,US power cord
RGS-R9244GP+_US
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,US power cord
RGS-R9244GP+-E_UK
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,UK power cord
RGS-R9244GP+_UK
Industrial Layer-3 28-port managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x1G/10GBase-X, SFP+ socket,UK power cord

Physical ports

10/100/1000Base-T(X) ports in RJ4524
1000/10G Base-X with SFP/SFP+ port4

LED Indicators

Power Indicator (Power)Green : Power indicator
Ring Master Indicator (R.M.)Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicatorDual color LED for Speed/Link/Act
Green : 1000Mbps Link/Act
Amber : 10/100Mbps Link/Act

Power

Power consumption (Typ.)37.4W
Power Input100 ~ 240VAC with power cord, dual 36 ~ 72VDC power input
Overload current protectionPresent

Physical Characteristic

Dimensions (mm)431 x 342 x 44mm (17 x 13.46 x 1.73 inch)
Weight (g)4,754g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3ae for 10Gigabit Ethernet
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table32K
Packet buffer Size32bits
Priority Queues8
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 7 us
Switching bandwidth: 128Gbps
Max. Number of Available VLANs: 4095
VLAN ID range: VID 1 to 4094
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
Jumbo frameUp to 10K Bytes
Security FeaturesDevice Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
MAC-based authentication(802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Web and CLI authentication and authorization
IP source guard
Software FeaturesIEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP)
MSTP (RSTP/STP compatible)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP v2/v3 Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client
DHCP Relay
Modbus TCP
DNS client proxy
SMTP Client
NTP server
Network RedundancyO-Ring Open-Ring
O-Chain
MRP
MSTP (RSTP/STP compatible)

Environmental

Storage Temperature-40 to 85oC (-40 to 185oF)
Operating Temperature-40 to 75oC (-40 to 167oF)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5-years

Downloads

UserManualVersionRelease DateSize
RGS-R9244GP+_SERIES User ManualJuly 06, 2023978.08 kB

DatasheetVersionRelease DateSize
RGS-R9244GP+_SERIES DatasheetJuly 06, 20231.23 MB

FirmwareVersionRelease DateSize
RGS-R9244GP+_SERIES FirmwareJuly 06, 20233.65 MB

CertificationVersionRelease DateSize
RGS-R9244GP+_SERIES CertificationJuly 06, 2023274.78 kB

QIGVersionRelease DateSize
RGS-R9244GP+_SERIES Quick Installation GuideJuly 06, 2023381.44 kB

UserManualVersionRelease DateSize
RGS-R9244GP+_SERIES User ManualJuly 06, 20234.79 MB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMSIEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS)
IEC/EN 61000-4-4 (EFT)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (CS)
IEC/EN 61000-4-8(PFMF)
IEC/EN 61000-4-11 (DIP))
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1

Dimensions
