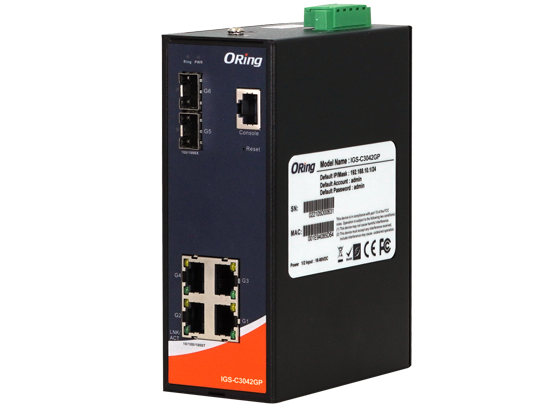

IGS-C3042GP
4GE + 2 1G/2.5G SFP Managed Ethernet Switch
Description
IGS-C3042GP is a cost-effective managed Ethernet switch with 4x 10/100/1000 Base-T(X) ports and 2x 100/1G/2.5G Base-X SFP sockets. The IGS-C3042GP supports wide operating temperature from -40℃ to 75℃ which can fulfill most of the requirement of operation environment.
Features
- Supports O-Ring/O-Chain, MSTP/RSTP/STP (IEEE 802.1s/w/D) and ERPS for Ethernet Redundancy
- Supports IPV6 new internet protocol version
- Support Modbus TCP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Supports SSH/Https security function
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Supports SNMP v1/v2c/v3, RMON and1Q VLAN Network Management
- Support ACL, TACACS+ and 1x User Authentication for security
- Multiple notification for warning of unexpected event
- Windows utility (Open-Vision) support centralized management and configurable by Web-based interface, Telnet and Console (CLI)
- Support LLDP Protocol
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports in RJ45 | 4 |
| 1000/2500Base-X with SFP port | 2 |
Power | |
|---|---|
| Power consumption (Typ.) | 10W |
| Power Input | 12-48VDC |
| Overload current protection | Present |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8K |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 12Gbps Max. Number of Available VLANs: 4096 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 9.6K Bytes |
| Security Features | ARP inspection Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client |
| Network Redundancy | O-Ring Open-Ring O-Chain MSTP ( STP / RSTP compatible) |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85oC |
| Operating Temperature | -40 to 75oC |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5-year |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMI | FCC Part 15, CISPR (EN55032) class A | |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) EN61000-4-8 EN61000-4-11 | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |

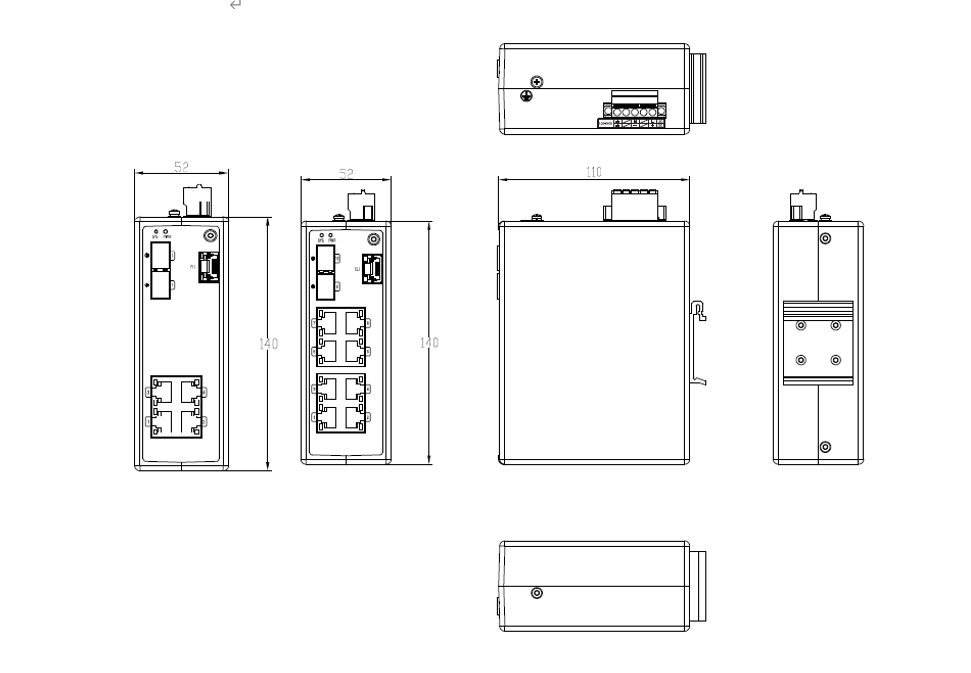

Dimensions |  |
|---|
