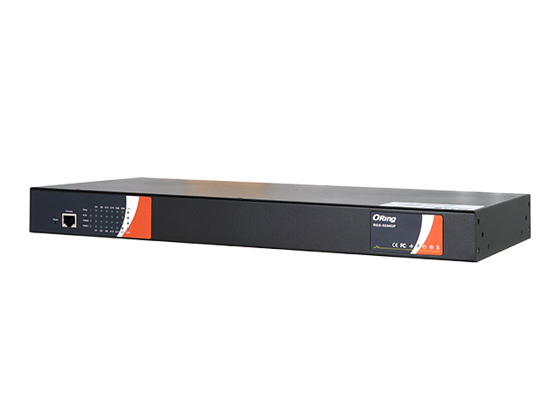

RGS-3244GP
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X，SFP socket
Description
RGS-3244GP is a rack mount managed Gigabit Redundant Ring Ethernet switch with 24x10/100/1000Base-T(X) ports and 4x100/1000Base-X，SFP socket . With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. It is specifically designed for the toughest industrial environments. In addition, the wide operating temperature range from -40℃to 75℃ can satisfy most of operating environment.
Features
- Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
- O-Chain allow multiple redundant network rings
- Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
- STP/RSTP/MSTP supported
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- 1Q VLAN
- Port Trunking for easy of bandwidth management
- SNMP v1/v2c/v3 support for secured network management
- RMON for traffic monitoring
- Support LLDP protocol
- Event notification through Syslog, SNMP trap.
- 19 inches rack mountable design
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports in RJ45 | 24 |
| 100/1000Base-X with SFP port | 4 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green : Power LED x 1 |
| 10/100/1000Base-T(X) RJ45 port indicator | Dual color LED : Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator |
| 100/1000Base-X SFP Port Indicator | Green for port Link/Act. |
Power | |
|---|---|
| Power consumption (Typ.) | ≤25W |
| Power Input | 100-240VAC |
| Overload current protection | Present |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 440x44.4 x 350mm |
| Weight (g) | ≤5KG |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.3x for Flow control IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging |
| MAC Table | 8k |
| Packet buffer Size | 4Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 μs Switching bandwidth: 48Gbps Max. Number of Available VLANs : 4095 VLAN ID Range : 1 to 4094 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 9.6K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP |
| Network Redundancy | O-Ring Open-Ring O-Chain MRP*NOTE MSTP (RSTP/STP compatible) |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F ) |
| Operating Temperature | -40 to 75°C (-40 to 167°F ) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN55035, EN 55032) | |
| EMI | FCC Part 15, CISPR (EN55022) class A | |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-32 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN62368-1 | |

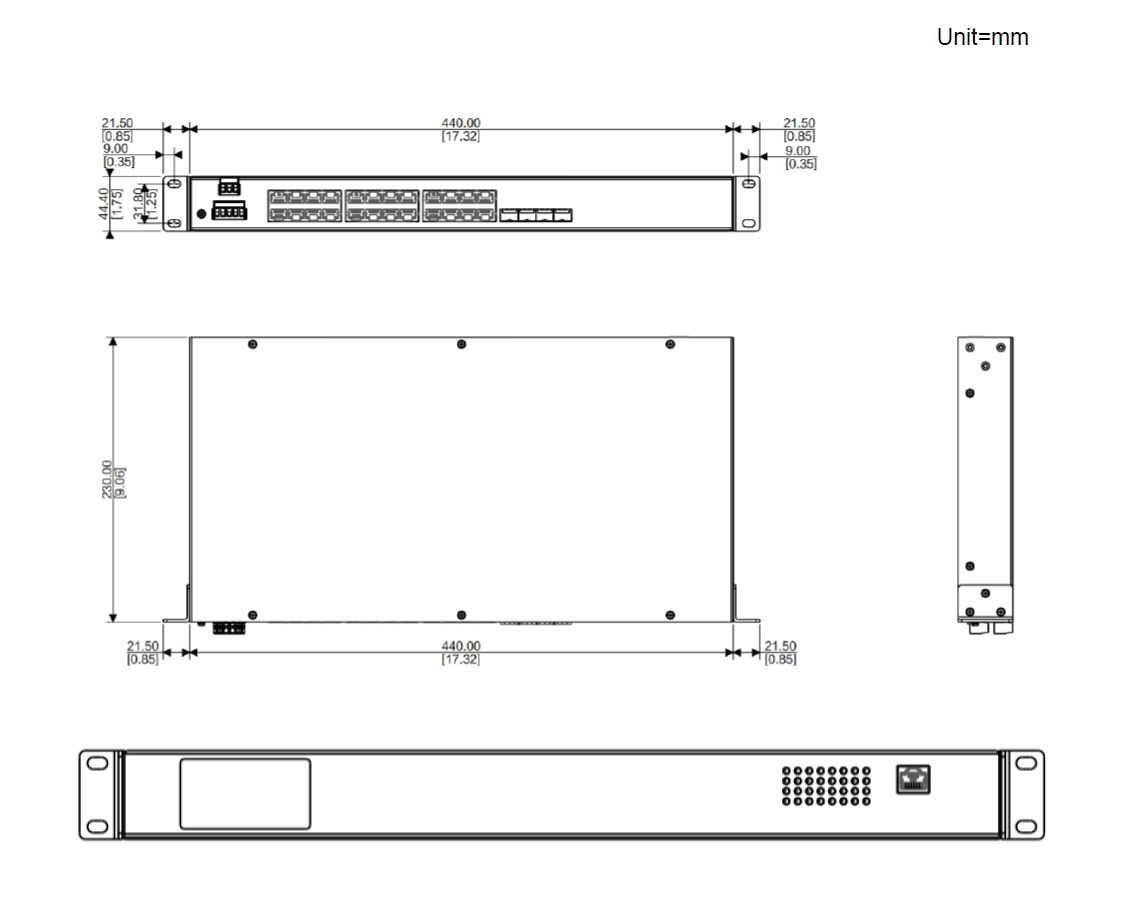

Dimensions |  |
|---|
