IGS-T9062DGP

Description

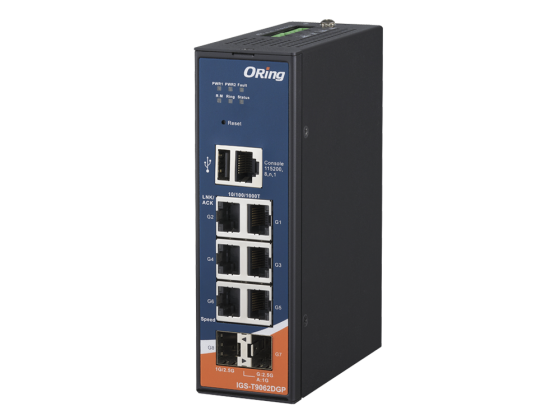

ORing’s TSN series managed Gigabit Ethernet switches are engineered for demanding industrial applications, including manufacturing, transportation, medical systems, and smart city infrastructure. The IGS-T9062DGP is a full Layer-2 managed redundant ring Ethernet switch featuring 6x 10/100/1000Base-T(X) RJ45 ports and 2x 1G/2.5GBase-X SFP slots, delivering mission-critical performance with ultra-fast O-Ring redundancy (<30ms recovery over 250+ units), O-Chain, MRP, ERPS (G.8032 v1/v2), and MSTP (RSTP/STP compatible) to ensure zero network downtime in harsh environments.

Full IEEE TSN compliance—including 802.1AS time synchronization, 802.1Qbv time-aware shaper, 802.1Qbu frame preemption, and 802.3br enhancements—provides microsecond-level determinism, ultra-low latency, low jitter, and seamless real-time data delivery for industrial control and factory automation. Advanced Layer-2 management capabilities, including QoS, VLAN, IGMP snooping, ACL security, SNMPv1/v2c/v3, RMON, and Modbus TCP, CC-Link IE TSN support, integrate with the Open-Vision platform, Web, Telnet, and CLI interfaces for simplified centralized deployment and monitoring. Rugged DIN-rail design withstands shock/vibration (IEC 60068) and wide temperature operation (-40°C to 75°C) with robust EMC immunity, making the IGS-T9062DGP the pinnacle of industrial-grade managed Ethernet switching for applications demanding absolute network availability.

Features

• 6 x 1Gigabit copper ports and 2 × 2.5Gigabit SFP uplink ports
• Supports TSN and IEEE 1588v2 for precise clock synchronization
• Supports O-Ring, O-Chain, IEC 62439-2 MRP, ERPS, and RSTP/MSTP redundancy technologies
• Web-based, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Wide operating temperature range from –40 to 75°C
