IPS-3082GC-24V
8FE PoE + 2G Combo Managed Ethernet Switch, IEEE 802.3af, 24VDC
Description
IPS-3082GC-24V is managed redundant ring Ethernet switch with 8x 10/100Base-T(X) ports with PoE function and 2x gigabit combo ports. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IPS-3082GC-24V also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-3082GC-24V supports wide range 24~36VDC power inputs and generates 48VDC P.S.E. power output per port. Each IPS-3082GC-24V switch has 8x 10/100Base-T(X) P.S.E. ports. IPS-3082GC-24V support new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electronic voltage, current and temperature. All function of IPS-3082GC-24V can be managed centralized by a powerful windows utility - Open-Vision. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application with PoE function.
Features
- ORing's redundancy Ethernet ring: O-Ring (recovery time < 10ms over 250 units of connection)
- O-Chain allow multiple redundant network rings
- Support MRP (IEC 62439-2) Media Redundant Protocol (by option)
- STP/RSTP/MSTP supported
- Supports IEEE 802.3af PoE and total power budget is 120Watts
- Provide PoE power on delay function, users can define delay time for PoE power supply
- Support PTP Client clock synchronization
- IGMP v2/v3 (IGMC snooping support) for filtering multicast traffic
- Support IPV6 new internet protocol version
- Provided HTTPS/SSH protocol to enhance network security
- Support TACACS+ and 802.1x user authentication for security
IPS-3082GC-24V
Industrial 10-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2xGigabit combo ports, SFP socket
IPS-3082GC-AT
Industrial 10-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2xGigabit combo ports, SFP socket
Physical ports | |
|---|---|
| Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports | 2 |
| 10/100Base-T(X) ports with P.S.E. in RJ45 | 8 |
| RS-232 Serial Console port | RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) M12 P.S.E. Port Indicator | Green for Link/Act indicator: Green for link-up, Off for link-down, Blinking for Act. Amber for Duplex/Collision indicator: on for full-duplex, off for half-duplex, blinking for half-duplex and collision occurred. |
| 100/1000Base-X SFP Port With Combo Port Indicator | Green for Link/Act indicator: Green for link-up, Off for link-down, Blinking for Act. |
| PoE Indicator | Green: On for PoE enabled, Off for PoE disabled |
Power | |
|---|---|
| Power consumption (Typ.) | 12 Watts (power consumption of P.S.E. is not included) |
| Redundant Input power | Dual DC inputs, 24~36VDC on 6-pin terminal block |
| Total PoE Output Power | 24VDC@120 Watts Max. |
| Overload current protection | Present |
| Reverse polarity protection | Not Presented |
Protection / Certification | |
|---|---|
| Safety | EN 60950-1, UL 60950-1, IEC 60950-1 |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 Aluminum |
| Dimensions (mm) | 74.3 (W) x 107.5 (D) x 153.6 (H)mm 2.93 (W) x 4.23 (D) x 6.05 (H) inch |
| Weight (g) | 1260 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.) |
| MAC Table | 8K |
| Packet buffer Size | 1Mb |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: dwidth: 7.2Gbps Max. Number of Available VLANs: 4096 VLAN ID Range: VID 1 to 4095 IGMP multicast groups: 1024 Port rate limiting: User Define |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMP V1/V2c/V3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10/30ms over 250 units NOTE 1. Fast Ethernet ports supports less 10 milliseconds recovery time. NOTE 2. Gigabit Ethernet ports supports less 30 milliseconds recovery time. TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP MSTP/RSTP/STP |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 70oC (-40 to 158oF) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A | |
| EMS | EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN 60950-1, UL 60950-1, IEC 60950-1 | |
| MTBF | 375564.4341 hrs. | |

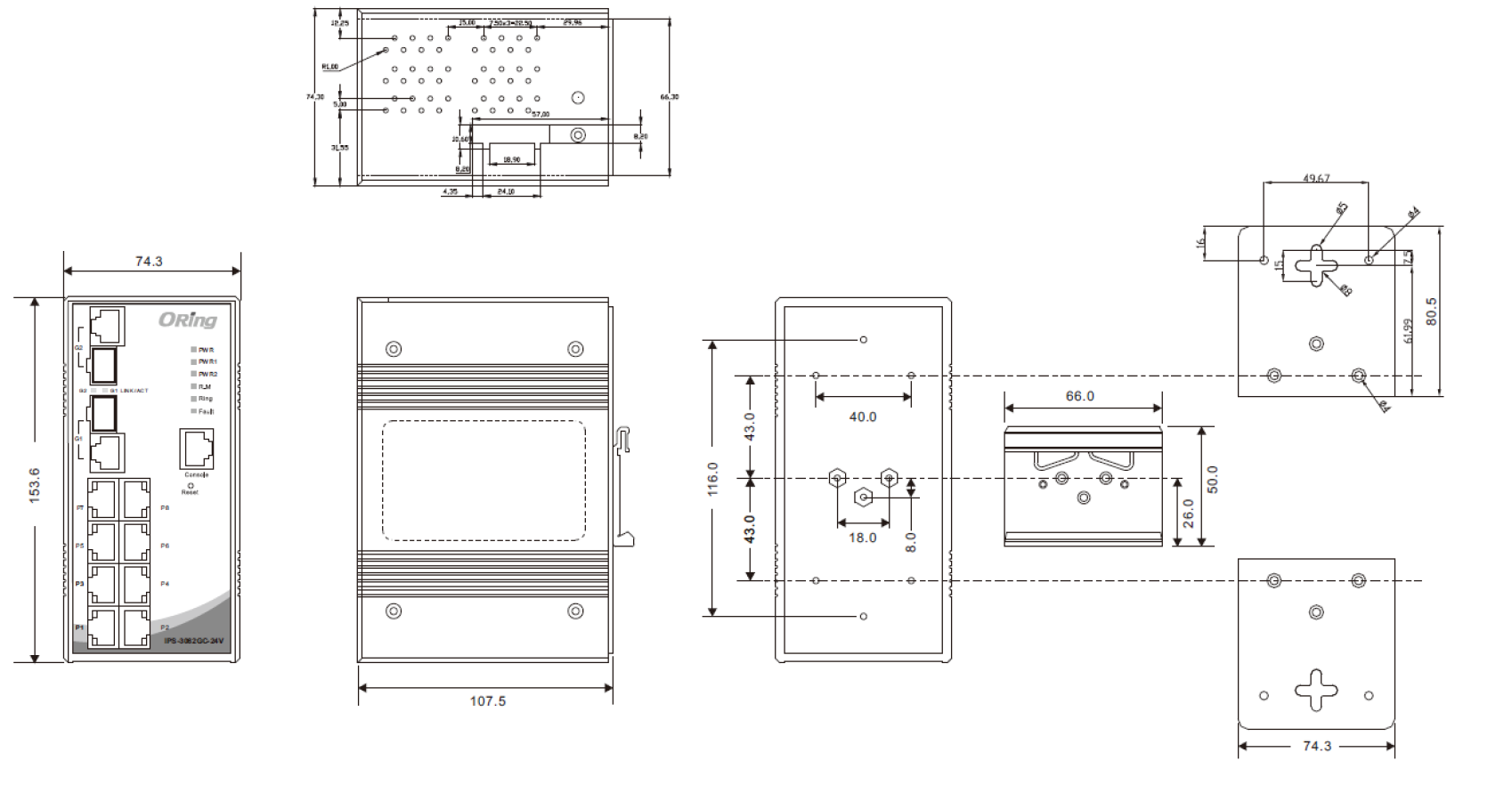

Dimensions |  |
|---|
