IES-1041FX-MM-SC

IES-1041FX-MM-SC

4FE + 1 SC Multi-mode Unmanaged Ethernet Switch


Description

IES-1041FX series are unmanaged Ethernet switches with 4x 10/100Base-T(X) and 1x 100Base-FX port. IES-1041FX series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 75°C can satisfy most of operating environment.

Features

  •  4x 10/100Base-T(X) and 1x100Base-FX multi-mode fiber
  •  Support store-and-forward transmission
  •  Support flow control
  •  Support surge protection
  •  Warning system by relay output
  •  Rigid IP-30 housing design
  •  DIN-Rail and wall mounting enabled

IES-1041FX-MM-SC
Industrial Slim Type 5-port Unmanaged Ethernet Switch

IES-1041FX-SS-SC
Industrial Slim Type 5-port Unmanaged Ethernet Switch

Downloads

DatasheetVersionRelease DateSize
IES-1041FX-MM-SC DatasheetJuly 06, 2023421.42 kB

QIGVersionRelease DateSize
IES-1041FX-MM-SC Quick Installation GuideJuly 06, 2023440.50 kB

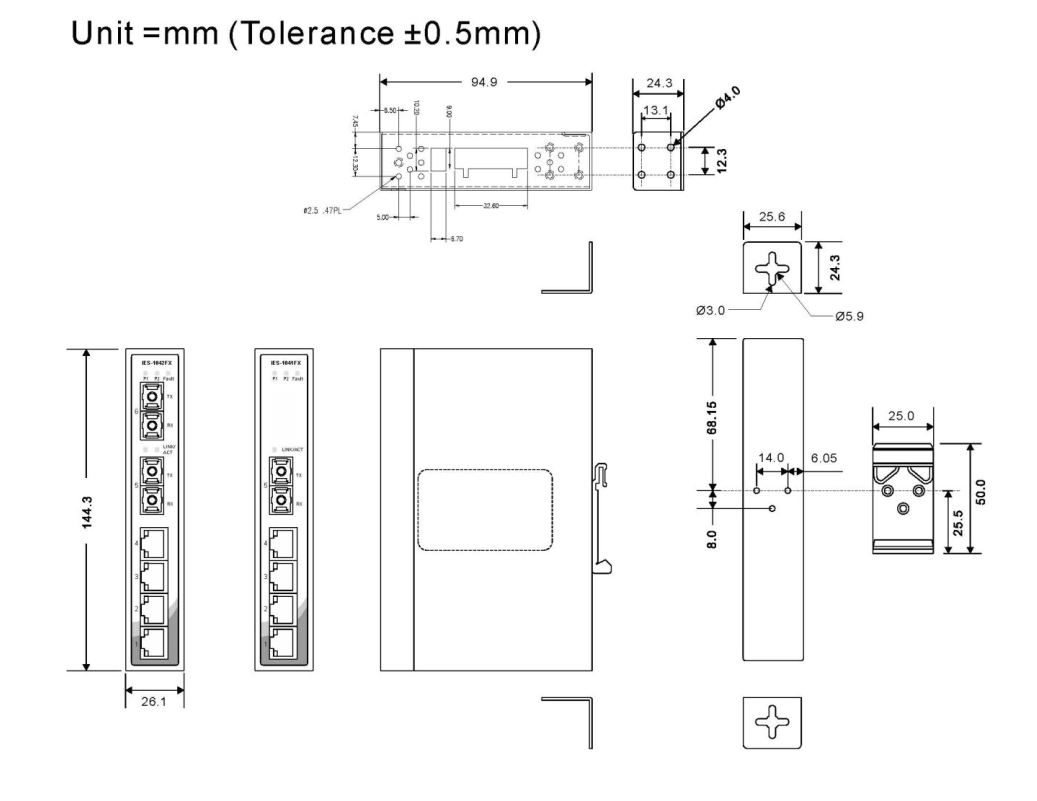

Dimensions
