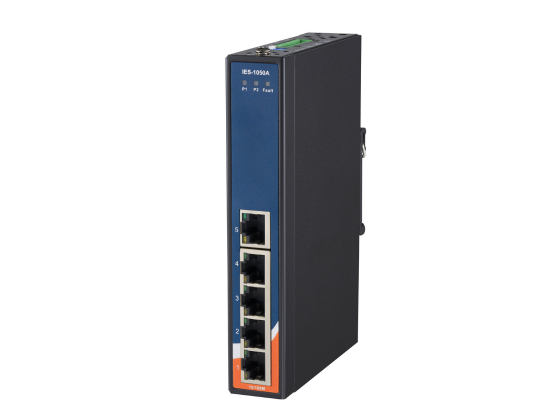

IES-1050A

IES-1050A

5FE Unmanaged Ethernet Switch


Description

IES-1050A is unmanaged Ethernet switch with 5x 10/100Base-T(X) ports and extended operating temperature range from -40℃ to 75℃ for the harsh environments. The enclosure designed with compact size and a robust housing; it can help you to easily installed.

Features

  •  Support 5 ports 10/100Base-T(X)
  •  Support Store and forward transmission
  •  Support flow control
  •  Provide relay output
  •  Compact size for easily installation
  •  Rigid IP-30 housing design
  •  DIN-rail and wall mounting enable

IES-1050A
Industrial Slim Type Unmanaged Ethernet Switch

Downloads

CertificationVersionRelease DateSize
IES-1050A CertificationJuly 06, 2023190.26 kB

DatasheetVersionRelease DateSize
IES-1050A DatasheetJuly 06, 2023568.83 kB

QIGVersionRelease DateSize
IES-1050A Quick Installation GuideJuly 06, 2023364.75 kB

Dimensions
