IDGPS-C1042GP+-BT

IDGPS-C1042GP+-BT

4 2.5G PoE + 2 1G/10G SFP Unmanaged IEEE 802.3bt PoE Switch

Description

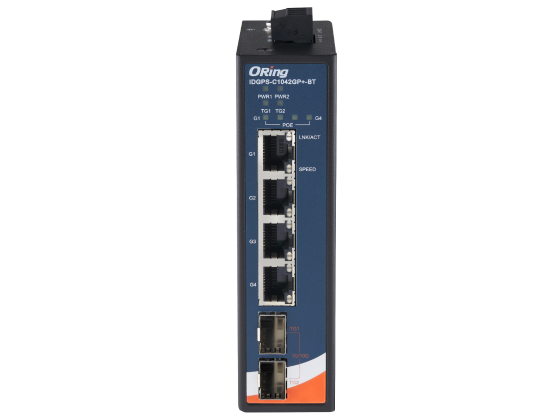

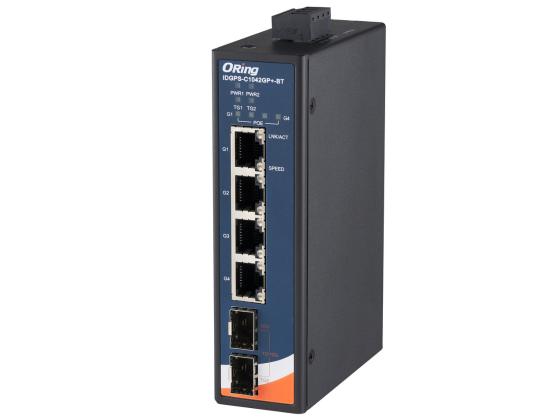

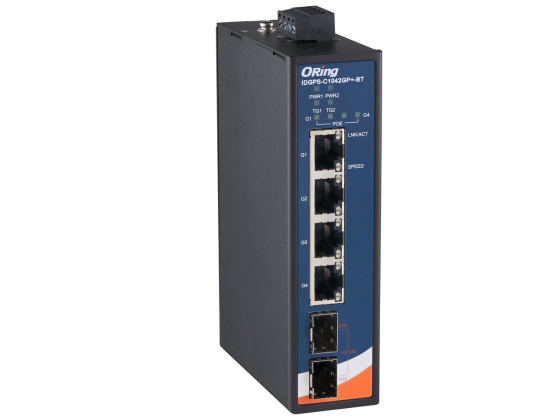

The IDGPS-C1042GP+-BT is an unmanaged Ethernet switch with 4 x 10/100/1000/2500Base-T(X) IEEE 802.3bt PSE ports and 2 x 1G/10GBase-X, SFP socket, offering high-speed and reliable connectivity and total power budget of 240Watts with maximum 90Watts per port. With our high power 802.3bt solution, you can easily connect and power high-power devices such as IP cameras, wireless APs, and VoIP phones without the need for separate power sources or complicated setups. Enjoy streamlined installation and reduced clutter, maximize the network's flexibility and scalability. The four 2.5 Gigabit ports are available for connecting high-speed devices. Additionally, the two 10G Ethernet ports can be utilized for uplink transmission, establishing a high-bandwidth transmission. With an extensive operating temperature range spanning from -40°C to 75°C, they effortlessly adapt to various operational environments. Renowned for their robustness, they stand as a dependable choice for Ethernet and powered device applications.

Features

  • 4 ports 10/100/1000/2500Base-T(X) P.S.E ports
  • Support IEEE 802.3bt compliant PoE with maximum 90Watts per port
  • 2 ports 1G/10GBase-X SFP sockets
  • Support auto-negotiation and auto-MDI/MID-X
  • Support Store and forward transmission
  • Support flow control
  • Rigid IP-40 housing design
  • DIN-rail mounting enable

Physical ports

10/100/1000/2500Base-T(X) ports with P.S.E. in RJ454
1000/10G Base-X with SFP/SFP+ port2

LED Indicators

Power indicatorGreen: Power LED x2
PoE IndicatorGreen LED for PoE enabled indicator

Physical Characteristic

EnclosureIP-40 Metal
Dimensions (mm)35(W) x 88(D) x 130(H)mm
Weight (g)535 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3bz for 2.5GBaseT
IEEE 802.3ae for 10G SFP+
IEEE 802.3x for Flow control
IEEE 802.3af/at/bt PoE specification
MAC Table8K
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 10 µs
Switching bandwidth: 60Gbps
Jumbo frame16K Bytes

Environmental

Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

DatasheetVersionRelease DateSize
DataSheet_IDGPS-C1042GP+-BTJuly 22, 2024356.17 kB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF)
ShockIEC60068-2-27
Free FallIEC60068-2-31
VibrationIEC60068-2-6
SafetyEN 62368-1 (LVD)

Dimensions
