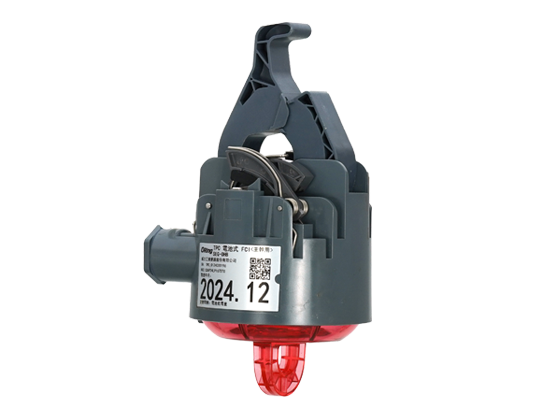

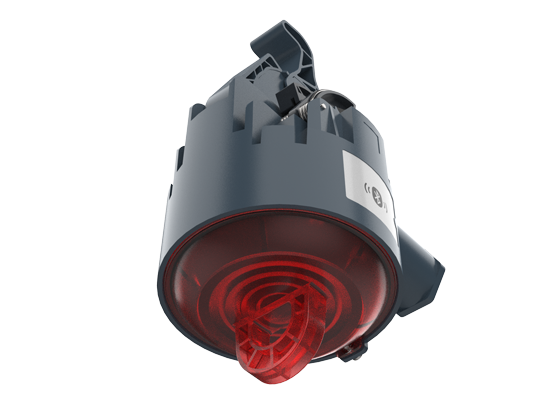

SEG-OHB
Overhead Line Fault Indicator, 6.6~22.8KV
Description
OHB Overhead Line Fault Indicators are usually used in 6.6~22.8KV overhead line power distribution network to monitor and detect short- circuit and earth fault. The fault signal is indicated by bright blinking LEDs with 360º sight. The fault information and current value can also be uploaded to DCU by BLE.
The indicator can be mounted under live conditions with Taiwan Power Company special hot stick. The parameters such as trip current, reset time, blinking interval, etc., can be read and adjusted by a FCI server, DCU and BLE tool. Permanent fault, earth-fault can be distinguished and indicated separately by bright blinking LEDs. And the battery low voltage alarm can be indicated by two alternating different bright blinking LEDs.
Features
- Permanent Fault
- Transient Fault
- Earth-fault
- Parameter Adjust
- Remote Transmission
- Indicator power can be powered from the overhead line
Physical Characteristic | |
|---|---|
| Enclosure | IP67 |
| Dimensions (mm) | 185*95mm |
| Weight (g) | 520g |
