TPS-3082GT-M12X-BP1-MV
EN50155 Managed PoE Switch with 8FE PoE and 2GE Bypass, M12 connector, IEEE 802.3af/at, 110VDC
Description
EN50155 10-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X), M12 connector and 1xbypass included, 110VDC power input ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TPS-3082GT-M12X-BP1-MV is a managed PoE Redundant Ring Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), O-Chain, MRP*NOTE and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. TPS-3082GT-M12X-BP1-MV also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TPS-3082GT-M12X-BP1-MV switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TPS-3082GT-M12X-BP1-MV EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock. TPS-3082GT-M12X-BP1-MV can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 75oC can satisfy most of the operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed PoE Ethernet applications.
Features
- Leading EN50155-compliant Ethernet switch for rolling stock application
- 8 ports P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
- World’s fastest Redundant Ethernet Ring: O-Ring(recovery time < 10ms over 250 units of connection)
- O-Chain support applications with multiple redundant rings topology
- Support standard IEC 62439-2 MRP*NOTE(Media Redundancy Protocol) function
- STP/RSTP/MSTP supported
- Support PTP Client (Precision Time Protocol) clock synchronization
- Support Modbus TCP protocol
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- SNMP v1/v2c/v3 support for secure network management
- RMON for traffic monitoring
- Support VLAN and LLDP protocol
- DHCP assigns each Equipment IP by each Port
- Provided Relay bypass function with two-gigabit ports
- Event notification through Syslog, Email, SNMP trap, and Relay Output
- Windows utility (Open-Vision) supports centralized management and configurable by Web-based, Telnet, and Console (CLI)
- M12 connectors to guarantee reliable operation against environmental disturbances
- Wall mounting enabled
*NOTE: This function is available by request only
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports in M12 | 2 x M12 connectors (8-pin X-coding, female) |
| 10/100Base-T(X) ports with P.S.E. in M12 | 8 x M12 connector (4-pin D-coding, female) |
| RS-232 Serial Console port | RS-232 in M12 connector (5-pin A-coding, female). Baud rate setting: 9600bps, 8, N, 1 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 1 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) M12 P.S.E. Port Indicator | Top Green LED for Link/Act indicator Middle Green LED for PoE enabled indicator Bottom Amber LED for Collision/Duplex indicator |
| 10/100/1000Base-T(X) M12 Port Indicator | Top Green LED for Link/Act indicator Bottom Amber LED for 100Mbps indicator |
Power | |
|---|---|
| Power consumption (Typ.) | 24 watts (PoE output not included) |
| Redundant Input power | 72/110 (50.4-137.5) VDC. 7/8 inch 5-pin male connector |
| Total PoE Output Power | 95 watts |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Protection / Certification | |
|---|---|
| Safety | EN60950-1 |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30, Iron |
| Dimensions (mm) | 260 (W) x 79.3 (D) x 222 (H) mm10.236 (W) x 3.122 (D) x 8.74 (H) inch |
| Weight (g) | 2750 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.) |
| MAC Table | 8192 MAC addresses |
| Packet buffer Size | 1Mbits |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 5.6Gbps Max. Number of Available VLANs: 4096 IGMP multicast groups: 1024 Port rate limiting: User Define |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMP v1/v2c/v3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security NTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP STP RSTP MSTP |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding, female) |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B, EN 50121-3-2(EN 50155) | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN60950-1 | |
| Other | EN 50155 | |
| MTBF | 261,361 hrs | |

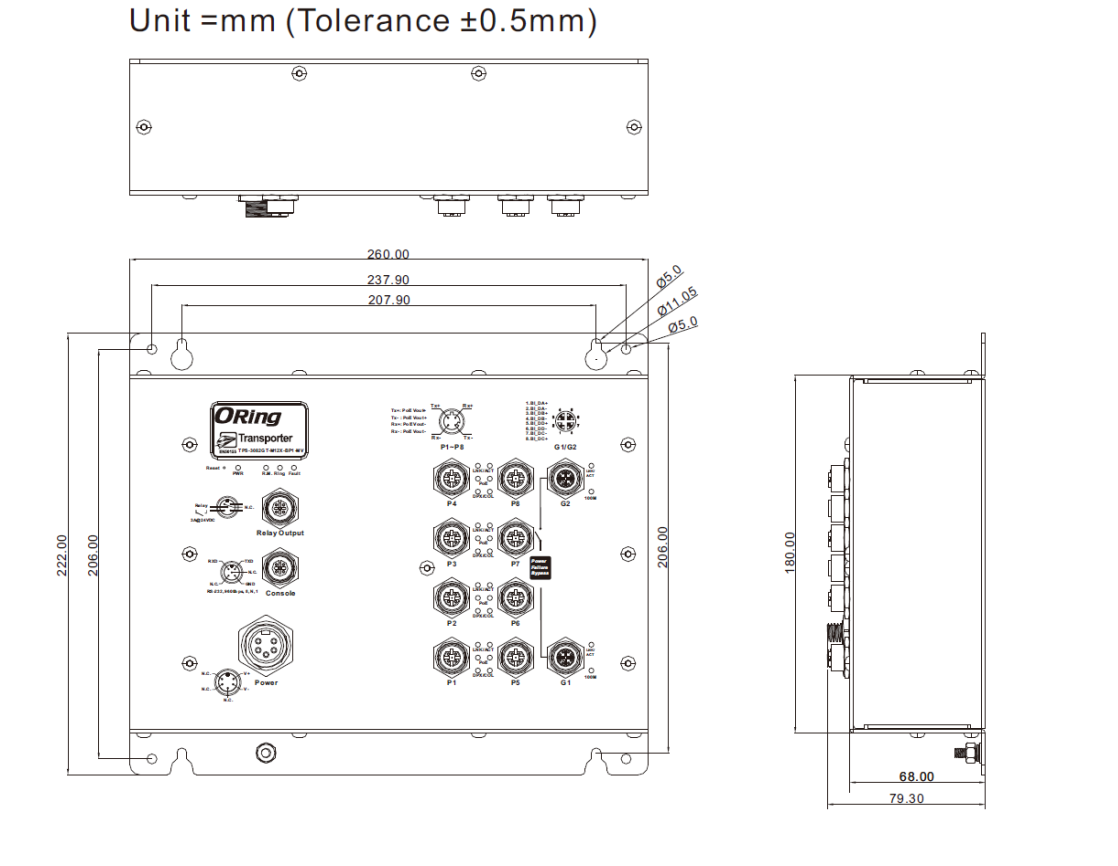

Dimensions |  |
|---|
