ORing offers a comprehensive portfolio of rugged industrial Ethernet switches, from cost-effective unmanaged and PoE models to advanced Layer 2/3 managed switches enabling precise control. Our switches can address connectivity needs in a variety of vertical markets.

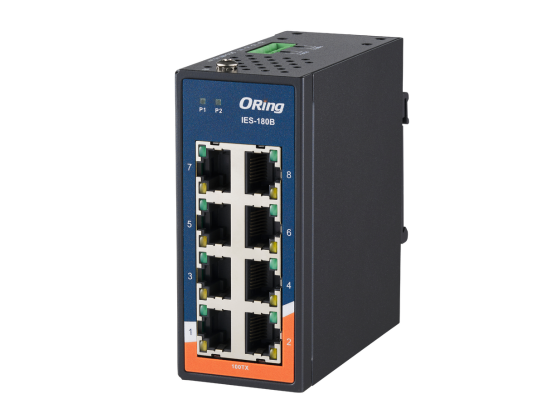

IES-180B
8FE Unmanaged Ethernet Switch, Mini type
Description
IES-180B is an unmanaged Ethernet switch with 8x 10/100Base-T(X) ports. With compact size of housing, you can install IES-180B easily. In addition, IES-180B with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -40 to 75°C is ready and can satisfy most requirement of operation.
Features
- Supports 8 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Compact size for easily installation
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
IES-180B
Industrial 8-port mini type unmanaged Ethernet switch with 8x10/100Base-T(X)
Downloads |
| ||
|---|---|---|---|
Dimensions |  |
|---|
