IES-2042FX-SS-SC
4FE + 2 SC Single-mode Lite-Managed Ethernet Switch
Description
IES-2042FX series are Lite-Managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100Base-FX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The IES-2042FX series can be managed conveniently by a powerful Windows utility — Open-Vision. In addition, the wide operating temperature range from -40 °C to 75 °C can satisfy most operating environments. Therefore, these switches are one of the most reliable choices for easy easy-to-manage Fiber Ethernet application.
Features
- World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
- O-Chain support the multiple redundant ring technology
- Provided Fast recovery technology for Ethernet multi-redundancy
- Support STP/RSTP standard redundant protocol
- SNMP v1/v2c/v3 ,http server, telnet server support
- Supports LLDP protocol
- Web-based interface, telnet server, and Windows utility (Open-Vision) configuration
- Event notification through Syslog, Email, and SNMP trap
- Two 100Base-FX fiber ports support for long-distance connection
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
IES-2042FX-MM-SC
Industrial 6-port lite-managed Ethernet switch with 4x10/100Base-T(X) and 2x100Base-FX, multi-mode, 2Km/1310nm, SC connector
IES-2042FX-SS-SC
Industrial 6-port lite-managed Ethernet switch with 4x10/100Base-T(X) and 2x100Base-FX, single-mode, 30Km/1310nm, SC connector
Physical ports | |
|---|---|
| 100Base-FX Fiber Ports | 2 |
| 10/100Base-T(X) ports in RJ45 | 4 |
LED Indicators | |
|---|---|
| 100Base-FX Fiber port Indicator | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. Amber for Link indicator: On for link-up, Off for link-down. |
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. Amber for Link indicator: On for link-up, Off for link-down. |
Power | |
|---|---|
| Power consumption (Typ.) | 6 Watts |
| Redundant Input power | Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack |
| Overload current protection | Present |
| Reverse polarity protection | Present on terminal block |
Protection / Certification | |
|---|---|
| Safety | IEC/EN 62368-1 (LVD), UL 61010-1, UL 61010-2-201 |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 Aluminum |
| Dimensions (mm) | 54.2 (W) x 107.1 (D) x 145.4 (H)mm 2.13 (W) x 4.22 (D) x 5.72 (H) inch |
| Weight (g) | 670 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 1K |
| Packet buffer Size | 1Mb |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7.45 µs Switching bandwidth: 1.2Gbps Throughput (packet per second): 892.8Kpps@64Bytes packet VLAN: Port based |
| Security Features | Enable/disable ports VLAN to segregate and secure network traffic |
| Software Features | STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units DHCP Client Port Base VLAN LLDP (Link Layer Discovery Protocol) Port configuration, status, statistics, monitoring, security SNMP v1/v2c/v3 and private MIB support |
| Network Redundancy | O-Ring O-Chain Fast recovery RSTP/STP |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fixed Fiber Ports Number | |
|---|---|
| Fiber Ports Standard | 100Base-FX |
| Fiber Mode | Single-mode |
| Fiber Diameter (μm) | 9/125 µm |
| Fiber Optical Connector | SC |
| Typical Distance (km) | 30 Km |
| Wavelength (nm) | 1310 nm |
| Max. Output Optical Power (dBm) | -8 dBm |
| Min. Output Optical Power (dBm) | -15 dBm |
| Max. Input Optical Power (Saturation)(dbm) | 0 dBm |
| Min. Input Optical Power (Saturation)(dBm) | -34 dBm |
| Link Budget (dB) | 19 dB |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | Less than 5 sec: Reboot, less more than 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||||
|---|---|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | IEC/EN 62368-1 (LVD), UL 61010-1, UL 61010-2-201 | |
| MTBF | 609551.4207 hrs. | |

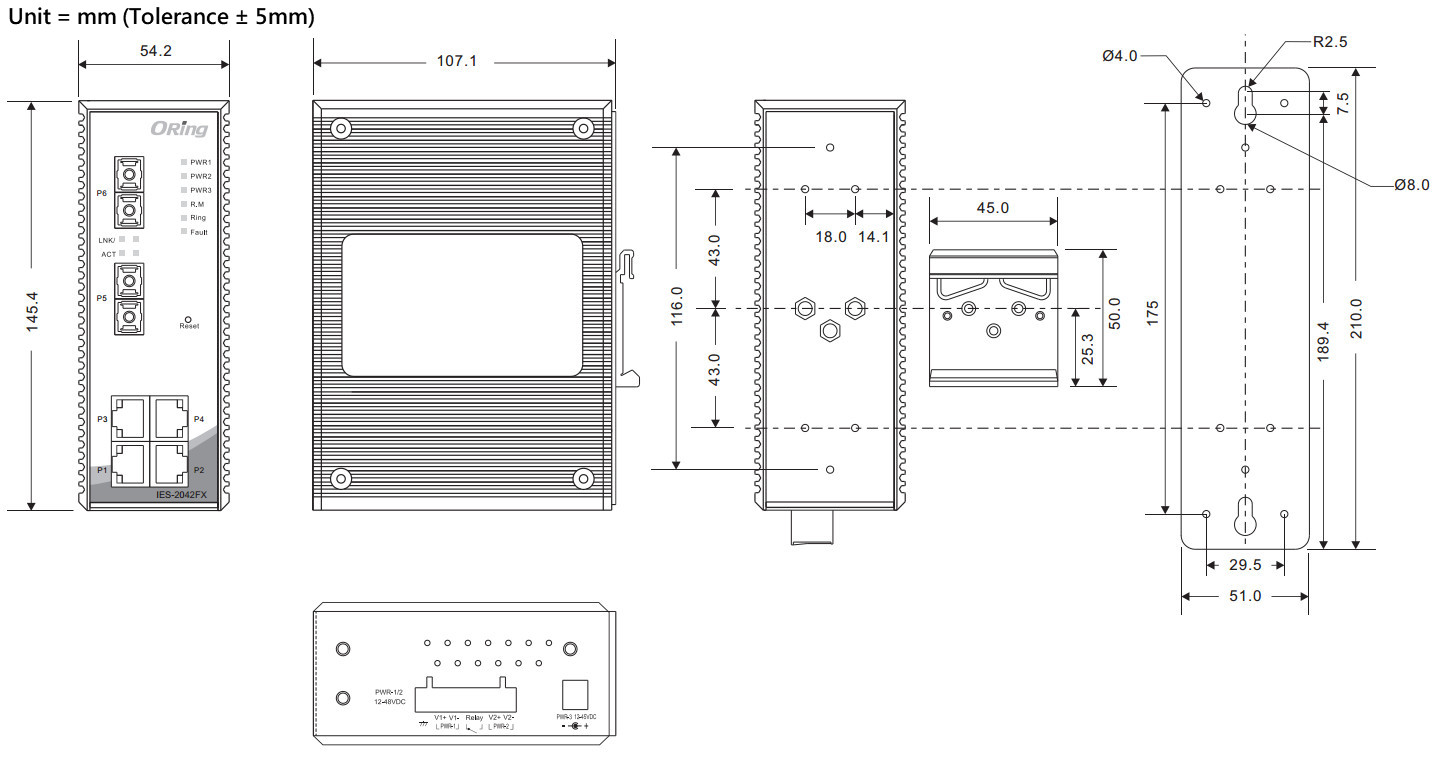

Dimensions |  |
|---|
