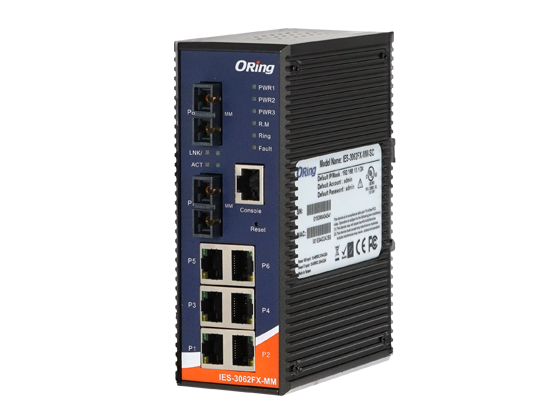

IES-3062FX-MM-SC
6FE + 2 SC Multi-mode Managed Ethernet Switch
Description
IES-3062FX-MM-SC is managed redundant ring Ethernet switch with 6x10/100Base-T(X) and 2x100Base-FX ports. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10/30ms over 250 units of connection), O-Chain, MRP*NOTE and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. IES-3062FX can be managed centralized and convenient by a powerful windows utility - Open-Vision. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed fiber Ethernet application.
Features
- Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10/30ms over 250 units of connection)
- O-Chain allow multiple redundant network rings
- *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
- STP/RSTP:2004/MSTP supported
- Support PTP Client (Precision Time Protocol) clock synchronization
- Support Modbus/TCP protocol
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Port Trunking for easy of bandwidth management
- Event notification through Syslog, Email, SNMP trap, and Relay Output
- Support IPV6 new internet protocol version
- Provided HTTPS/SSH protocol to enhance network security
- Support TACACS+ and 802.1x User Authentication for security
- Port lock to prevent access from unauthorized MAC address
- Windows utility (Open-Vision) supports centralized management and configurable by Web-based, Telnet, Console (CLI)
- Support LLDP Protocol
*NOTE: This function is available by request only
Physical ports | |
|---|---|
| 100Base-FX Fiber Ports | 2 |
| 10/100Base-T(X) ports in RJ45 | 6 |
| RS-232 Serial Console port | RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
LED Indicators | |
|---|---|
| 100Base-FX Fiber port Indicator | Green for port Link/Act. indicator: on for link-up, off for link-down, Blinking for act. Amber for port link indicator: on for link-up, off for link-down. |
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for Link/Act indicator: on for link-up, off for link-down, Blinking for act. Amber for Duplex/Collision indicator: on for full-duplex, off for half-duplex, blinking for half-duplex and collision occurred. |
Power | |
|---|---|
| Power consumption (Typ.) | 9 Watts |
| Redundant Input power | Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack |
| Overload current protection | Present |
| Reverse polarity protection | Present on terminal block |
Protection / Certification | |
|---|---|
| Safety | IEC/EN 62368-1, UL 61010-1, UL 61010-2-201 |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 Aluminum |
| Dimensions (mm) | 54.2 (W) x 107.1 (D) x 145.4 (H)mm 2.13 (W) x 4.22 (D) x 5.72 (H) inch |
| Weight (g) | 735 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8K |
| Packet buffer Size | 1Mb |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 2.03 µs Switching bandwidth: 1.6Gbps Max. Number of Available VLANs: 4096 VLAN ID Range: VID 1 to 4095 IGMP multicast groups: 1024 Port rate limiting: User Define |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMP V1/V2c/V3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP MSTP/RSTP/STP |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fixed Fiber Ports Number | |
|---|---|
| Fiber Ports Standard | 100Base-FX |
| Fiber Mode | Multi-mode |
| Fiber Diameter (μm) | 62.5/125 µm, 50/125 µm |
| Fiber Optical Connector | SC |
| Typical Distance (km) | 2 Km |
| Wavelength (nm) | 1310 nm |
| Max. Output Optical Power (dBm) | -14 dBm |
| Min. Output Optical Power (dBm) | -23.5 dBm |
| Max. Input Optical Power (Saturation)(dbm) | 0 dBm |
| Min. Input Optical Power (Saturation)(dBm) | -31 dBm |
| Link Budget (dB) | 7.5 dB |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 75oC (-40 to 167oF) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | IEC/EN 62368-1, UL 61010-1, UL 61010-2-201 | |
| MTBF | 550,165 hrs. | |
Dimensions |  |
|---|
