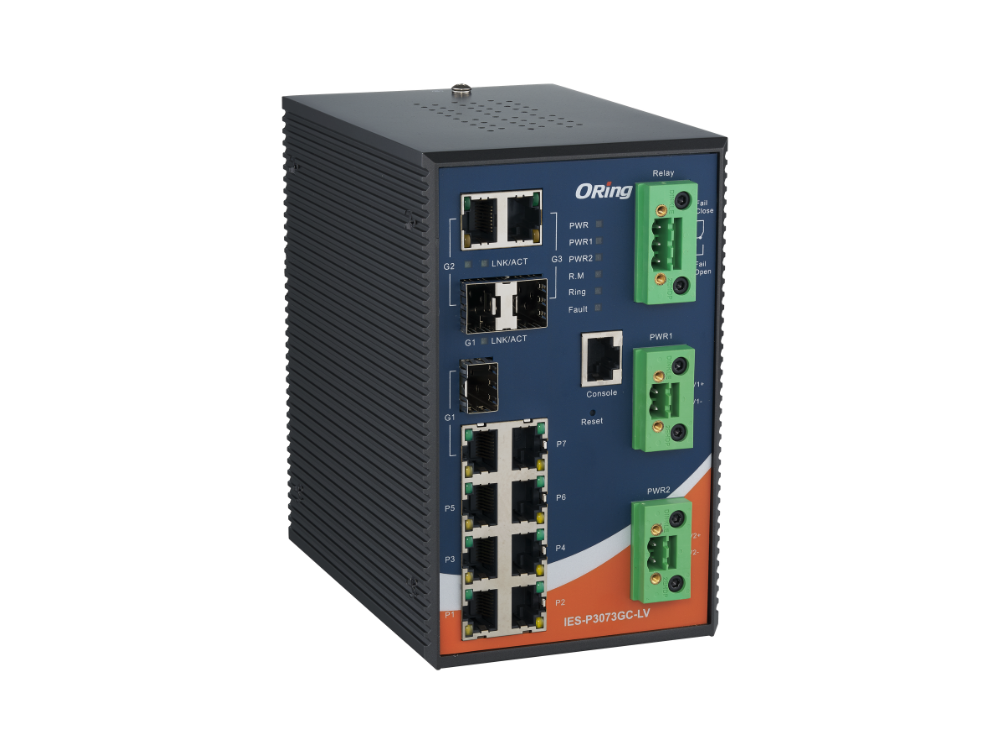

IES-P3073GC-LV
IEC 61850-3 Managed Ethernet Switch with 7FE and 3G Combo, Dual DC
Description
IES-P3073GC series are IEC 61850-3 network switch with 7x 10/100Base-T(X) and 3x Gigabit combo ports. These switches are designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. And these switches designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP:2004/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. O-Chain is the revolutionary network redundancy technology that provides the addon network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain provided ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. All function of IES-P3073GC series can be managed centralized and convenient by a powerful windows utility — Open-Vision. IES-P3073GC series support new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electrical voltage, current and temperature. In addition, the wide operating temperature range from -40 to 85°C can satisfy most of operating environment. Therefore, these switches are one of the most reliable choices for highly-managed fiber Ethernet application.
Features
- Designed for power substation / Railway application and fully compliant with the requirement of IEC 61850-3 and IEEE 1613
- World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
- Open-Ring support the other vendor’s ring technology in open architecture
- O-Chain allow multiple redundant network rings
- Optional standard IEC 62439-2 MRP (Media Redundancy Protocol)*NOTE
- STP/RSTP:2004/MSTP supported
- Support PTP Client (Precision Time Protocol) clock synchronization
- Support Modbus TCP protocol
- Support IPV6 new internet protocol version
- Provided HTTPS/SSH protocol to enhance network security
- Support TACACS+ and 802.1x User Authentication for security
*NOTE: This function is available by request only
Physical ports | |
|---|---|
| 10/100Base-T(X) ports in RJ45 | 7 |
| Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports | 3 |
| RS-232 Serial Console port | RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. Amber for Duplex/Collision indicator: On for full-duplex, Off for half-duplex, Blinking for half-duplex and collision occurred. |
| 100/1000Base-X SFP Port Indicator | Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act. |
Power | |
|---|---|
| Power consumption (Typ.) | 12 Watts |
| Power Input | Dual power inputs. 12~48VDC on dual 2-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 Aluminum |
| Dimensions (mm) | 96.4 (W) x 145.5 (D) x 154 (H)mm |
| Weight (g) | 1415 g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8K |
| Packet buffer Size | 1Mb |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: dwidth: 7.4Gbps Max. Number of Available VLANs: 4096 VLAN ID Range: VID 1 to 4095 IGMP multicast groups: 1024 Port rate limiting: User Define |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMP V1/V2c/V3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP MSTP/RSTP/STP |
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | IEC/EN 62368-1 | |
| Other | IEC 61850-3, IEEE 1613 | |
Dimensions |  |
|---|
