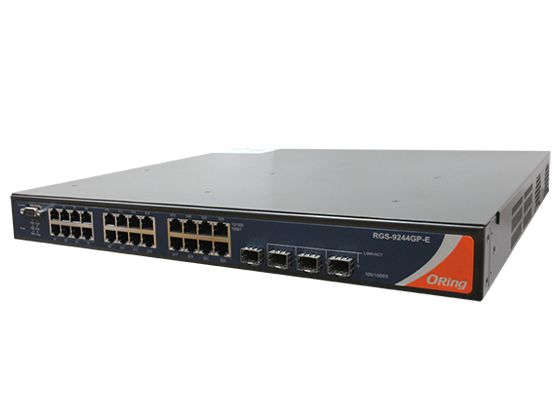

RGS-9244GP-E

RGS-9244GP-E

24GE + 4G SFP Managed Ethernet Switch, AC and Dual DC

Inquiry

Description

RGS-9244GP series are Gigabit managed redundant ring Ethernet switch with 24x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  And RGS-9244GP series support wide operating temperature from -40oC to 75oC. RGS-9244GP series can also be managed centralized and convenient by Open-Vision, as well as the web-based interface, Telnet and console (CLI) configuration.  Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Features

  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  •  O-Chain allow multiple redundant network rings
  •  Support IEC 62439-2 MRP (Media Redundancy Protocol)
  •  Support Modbus TCP protocol
  •  Support IEEE 802.3az Energy-Efficient Ethernet technology
  •  Provided HTTPS/SSH protocol to enhance network security
  •  Support SMTP client and NTP server
  •  Support IP-based bandwidth management
  •  Support application-based QoS management
  •  Support Device Binding security function
  •  Support DOS/DDOS auto prevention
  •  IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  •  Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  •  Support ACL and 802.1x User Authentication for security
  •  Support 10K Bytes Jumbo Frame
  •  SFP socket support DDM function
  •  Multiple notification for warning of unexpected event
  •  Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  •  Support LLDP Protocol
  •  Support DBU-01 backup unit device to quickly backup/restore configuration
  •  19 inches rack mountable design
RGS-9244GP_EU
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP-E_EU
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP_JP
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP-E_JP
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP_US
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP-E_US
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP_UK
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
RGS-9244GP-E_UK
Industrial 28-port rack mount managed Gigabit Ethernet switch with 24x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
SFP1GRJ-I

SFP1GRJ-I

SFP1G-EZX120

SFP1G-EZX120

SFP1G-EZX120-I

SFP1G-EZX120-I

SFP1G-LHX30

SFP1G-LHX30

SFP1G-LHX30-I

SFP1G-LHX30-I

SFP1G-LHX40

SFP1G-LHX40

SFP1G-LHX40-I

SFP1G-LHX40-I

SFP1G-LX10

SFP1G-LX10

SFP1G-LX10-I

SFP1G-LX10-I

SFP1G-LX20

SFP1G-LX20

SFP1G-LX20-I

SFP1G-LX20-I

SFP1G-MLX

SFP1G-MLX

SFP1G-MLX-I

SFP1G-MLX-I

SFP1G-SX

SFP1G-SX

SFP1G-SX-I

SFP1G-SX-I

SFP1G-XD50

SFP1G-XD50

SFP1G-XD50-I

SFP1G-XD50-I

SFP1G-ZX70

SFP1G-ZX70

SFP1G-ZX70-I

SFP1G-ZX70-I

SFP1G-ZX80

SFP1G-ZX80

SFP1G-ZX80-I

SFP1G-ZX80-I

SFP1GB3-LX10

SFP1GB3-LX10

SFP1GB3-LX10-I

SFP1GB3-LX10-I

SFP1GB3-LX20

SFP1GB3-LX20

SFP1GB3-LX20-I

SFP1GB3-LX20-I

SFP1GB3-LX40

SFP1GB3-LX40

SFP1GB3-LX40-I

SFP1GB3-LX40-I

SFP1GB3-LX60

SFP1GB3-LX60

SFP1GB3-LX60-I

SFP1GB3-LX60-I

SFP1GB4-LX80

SFP1GB4-LX80

SFP1GB4-LX80-I

SFP1GB4-LX80-I

SFP1GB5-LX10

SFP1GB5-LX10

SFP1GB5-LX10-I

SFP1GB5-LX10-I

SFP1GB5-LX20

SFP1GB5-LX20

SFP1GB5-LX20-I

SFP1GB5-LX20-I

SFP1GB5-LX40

SFP1GB5-LX40

SFP1GB5-LX40-I

SFP1GB5-LX40-I

SFP1GB5-LX60

SFP1GB5-LX60

SFP1GB5-LX60-I

SFP1GB5-LX60-I

SFP1GB5-LX80

SFP1GB5-LX80

SFP1GB5-LX80-I

SFP1GB5-LX80-I

SFP1GRJ

SFP1GRJ

SFP100-MM

SFP100-MM

SFP100-MM-I

SFP100-MM-I

SFP100-SS100

SFP100-SS100

SFP100-SS100-I

SFP100-SS100-I

SFP100-SS120

SFP100-SS120

SFP100-SS120-I

SFP100-SS120-I

SFP100-SS30

SFP100-SS30

SFP100-SS30-I

SFP100-SS30-I

SFP100-SS60

SFP100-SS60

SFP100-SS60-I

SFP100-SS60-I

SFP100B3-SS20

SFP100B3-SS20

SFP100B3-SS20-I

SFP100B3-SS20-I

SFP100B3-SS40

SFP100B3-SS40

SFP100B3-SS40-I

SFP100B3-SS40-I

SFP100B3-SS60

SFP100B3-SS60

SFP100B3-SS60-I

SFP100B3-SS60-I

SFP100B5-SS20

SFP100B5-SS20

SFP100B5-SS20-I

SFP100B5-SS20-I

SFP100B5-SS40

SFP100B5-SS40

SFP100B5-SS40-I

SFP100B5-SS40-I

SFP100B5-SS60

SFP100B5-SS60

SFP100B5-SS60-I

SFP100B5-SS60-I

Physical ports

10/100/1000Base-T(X) ports in RJ4524
100/1000Base-X with SFP port4
RS-232 Serial Console portRS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1

LED Indicators

Power Indicator (Power)Green LED x 3 : Power-1/2/3 indicator
Ring Master Indicator (R.M.)Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicatorGreen for Link/Act indicator
Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
100/1000Base-X SFP Port IndicatorGreen for port Link/Act.

Power

Power consumption (Typ.)30 watts max. for DC power input
30.6 watts max. for AC power input
Power Input100 ~ 240VAC with power socket and dual 48VDC (36 ~ 72VDC) at 6-pin terminal block

Physical Characteristic

Dimensions (mm)431 (W) x 342 (D) x 44 (H)mm (16.97 x 13.46 x 1.73 inch)
Weight (g)4652 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table8K
Priority Queues8
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 7 us Switching bandwidth: 56Gbps Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define
Jumbo frameUp to 10K Bytes
Security FeaturesDevice Binding security feature Enable/disable ports, MAC based port security
Port based network access control (802.1x)
Single 802.1x and Multiple 802.1x
MAC-based authentication
QoS assignment
Guest VLAN
MAC address limit
TACACS+
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Web and CLI authentication and authorization
Authorization (15 levels)
IP source guard
Software FeaturesIEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP)
MSTP (RSTP/STP compatible)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP v2/v3 Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client
DHCP Relay
Modbus TCP
DNS client proxy
SMTP Client
NTP server
Network RedundancyO-Ring Open-Ring
O-Chain
MRP
MSTP (RSTP/STP compatible)

Environmental

Storage Temperature-40 to 85oC (-40 to 185oF)
Operating Temperature-40 to 75oC (-40 to 167oF)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5-years

Downloads

DatasheetVersionRelease DateSize
RGS-9244GP_SERIES DatasheetJuly 06, 2023495.66 kB

UserManualVersionRelease DateSize
RGS-9244GP_SERIES User ManualJuly 06, 20233.73 MB

FirmwareVersionRelease DateSize
RGS-9244GP_SERIES FirmwareJuly 06, 20233.54 MB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMSIEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS)
IEC/EN 61000-4-4 (EFT)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (CS)
IEC/EN 61000-4-8(PFMF)
IEC/EN 61000-4-11 (DIP))
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1

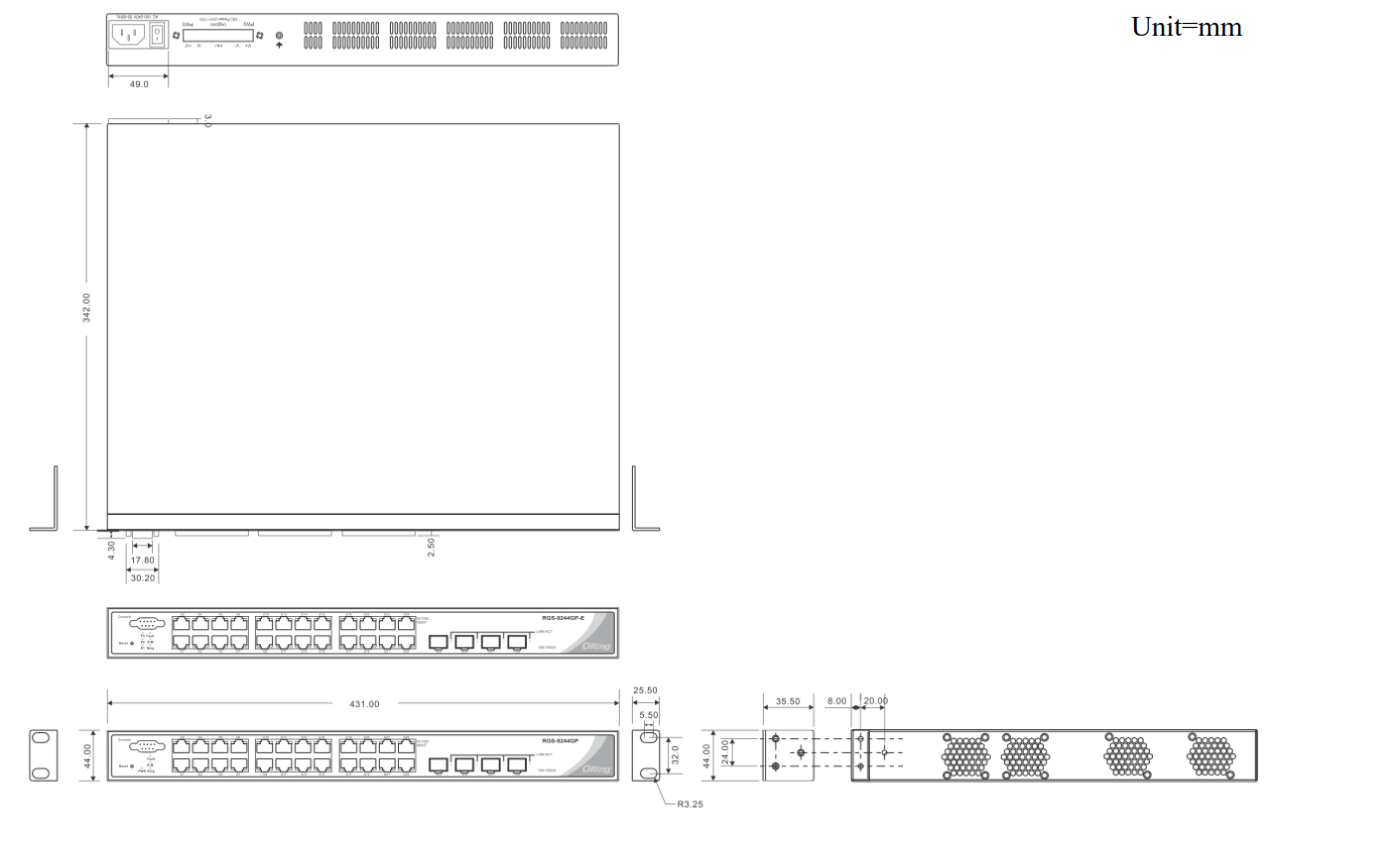

Dimensions
