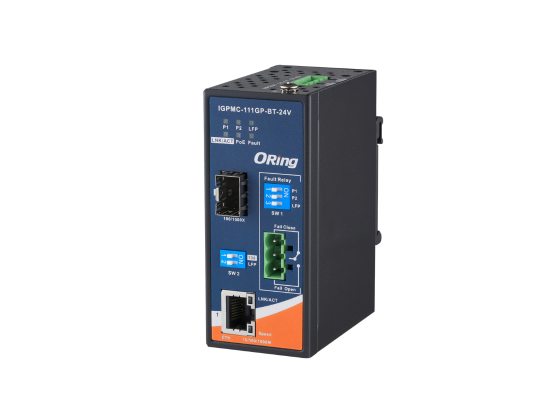

IGPMC-111GP-BT-24V

Description

The IGPMC-111GP-BT-24V is a cost-effective solution for the conversion interface between 10/100/1000Base-T(X) and 100/1000Base-X SFP socket; it allows you to extend communication distance by optical fiber. IGPMC-111GP-BT-24V supports MDI/MDIX auto detection, so you don’t need to use crossover wires. IGPMC-111GP-BT-24V also support Power over Ethernet, a system to transmit electrical power up to 90 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPMC-111GP-BT-24V has 1x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) port to provide power in a PoE setup.

The IGPMC-111GP-BT-24V also supports the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the DIP-Switch to enable the LFP function, then IGPMC-111GP-BT-24V will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

The IGPMC-111GP-BT-24V with wide operating temperature range from -40 ~ 75oC and accepts a wide voltage range from dual 12~57 VDC power inputs, so it is suitable for harsh operating environments. Therefore, the IGPMC-111GP-BT-24V is reliable media converter with PoE capability and can satisfy most demand of operating environment.

Features

• Support 1 port 10/100/1000Base-T(X) bt P.S.E. auto-negotiation and auto-MDI/MDI-X copper port
•  Support 1 port 100/1000Base-X SFP fiber port
•  P.S.E. fully compliant with IEEE802.3af/at/bt standard, provide up to 90Watts
•  Support Jumbo Frame up to 10K Bytes
•  Support LFP (Link Fault Pass-through) function
•  Relay output to carry capacity of 1A at 24 VDC for warning system
•  Provided DIP-Switch to setting function
•  Rigid IP-30 housing design
•  DIN-Rail and wall mounting enabled
