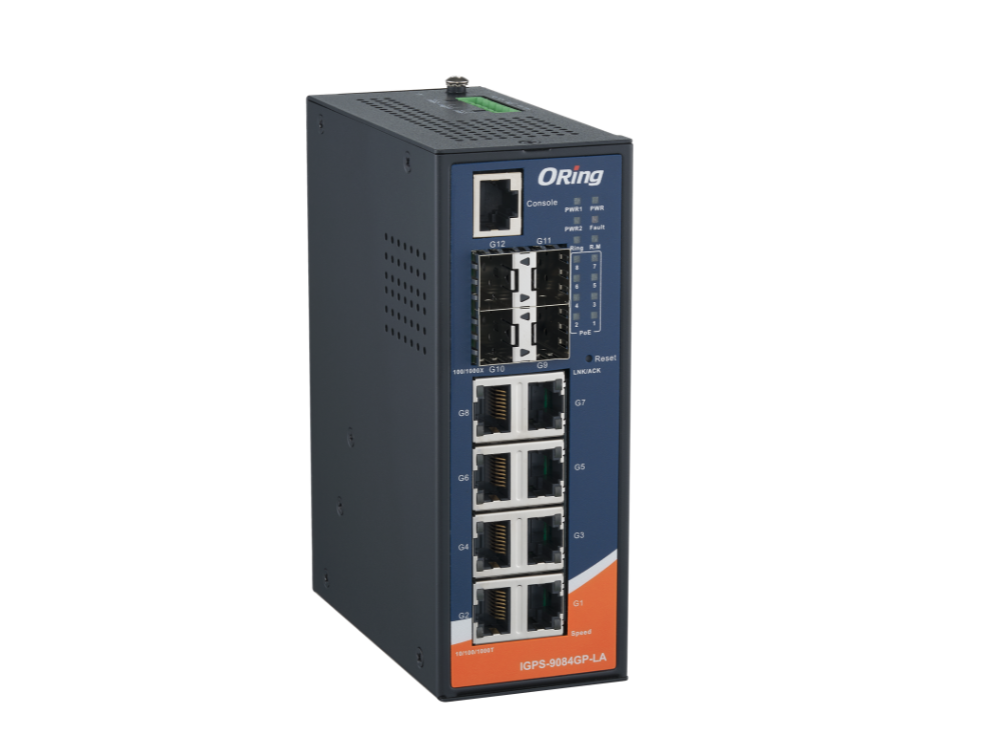

IGPS-9084GP-LA

Description

IGPS-9084GP-LA is layer2 managed PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 20ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9084GP-LA also support Power over Ethernet, a system to transmit electrical power up to 30 watts, total PoE power budget is 240W max. The PoE switch support wide operating temperature from -40^oC to 75^oC.  IGPS-9084GP-LA can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

Features

• 8 port P.S.E. fully compliant with IEEE802.3at standard
• Support STP/RSTP/MSTP, O-Ring/O-Chain, MRP and G.8032
• Support PoE on/off scheduled and PoE alive check
• Support Ethernet/IP and Modbus TCP protocol
• Support IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Support SMTP client and NTP server protocol
• Support IP-based bandwidth management
• Support application-based QoS management
• Support Device Binding security function
• Support DoS/DDoS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Support ACL, TACACS+ and 802.1x User Authentication for security
• Syslog/SNMP Trap notification for warning of unexpected event
• Support DBU-01 backup unit device to quickly backup/restore configuration
• Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Support LLDP Protocol
• Robust EMS design, provide 8K ESD and 4KV Surge protection
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
