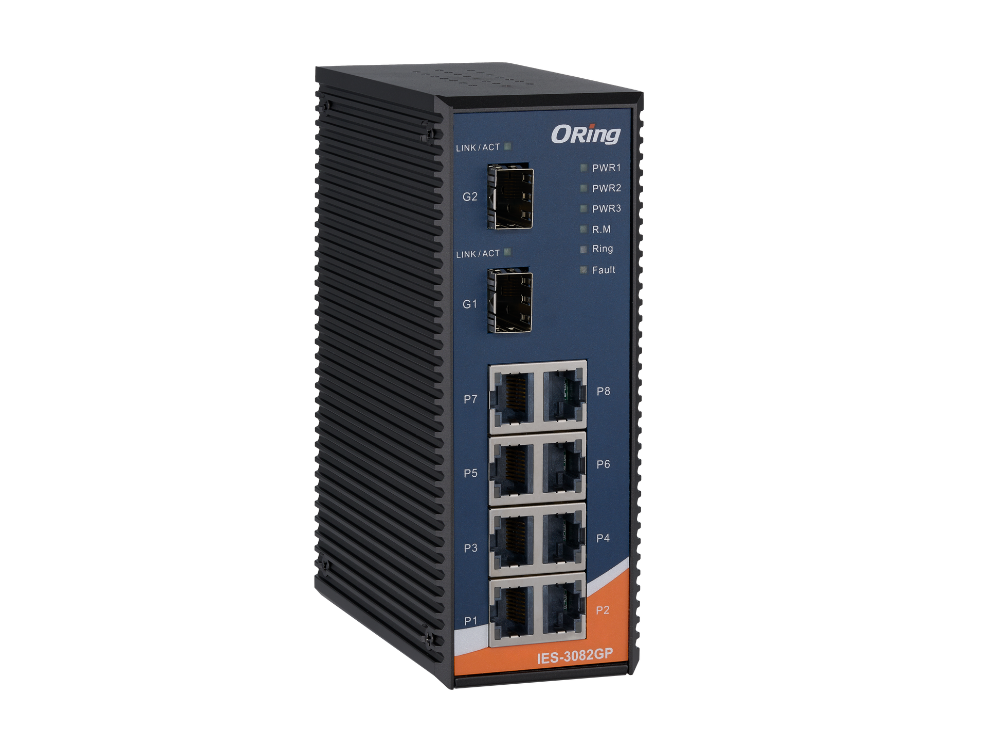

IES-3082GP

IES-3082GP

Industrial 10-port managed Ethernet switch with 8x10/100Base-T(X) and 2x100/1000Base-(F)X, SFP socket


Description

IES-3082GP is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports and 2x100/1000Base-(F)X SFP ports.  With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10/30ms over 250 units of connection), O-Chain, MRP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology.  O-Chain provides ease of use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topologies.  All functions of IES-3082GP can be managed, centralized, and conveniently by a powerful Windows utility called Open-Vision.  In addition, the wide operating temperature range from -40 to 75oC can satisfy most operating environments.  Therefore, the switch is one of the most reliable choices for highly managed and Fiber Ethernet applications.

Features

  • World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10/30ms over 250 units of connection)
  • O-Chain allow multiple redundant network rings
  • Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • MSTP/RSTP/STP (IEEE 802.1s/w/D)
  • Supports Auto-Negotiation Speed
  • Support Modbus/TCP protocol
  • IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
  • Port Trunking for easy bandwidth management
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • RMON for traffic monitoring
  • Support LLDP protocol
  • Port lock to prevent access from unauthorized MAC address
  • Windows utility (Open-Vision) supports centralized management and is configurable by Web-based, Telnet, Console (CLI)
  • Support two SFP sockets for 100/1000Base-(F)X speed
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
  • Multiple notifications for warning of unexpected events
  • Web-based, Telnet, Console (CLI), and Windows Utility (Open-Vision) configuration
  • Support LLDP Protocol

IES-3082GP
Industrial 10-port managed Ethernet switch with 8x10/100Base-T(X) and 2x100/1000Base-X SFP

Physical ports

10/100Base-T(X) ports in RJ458
100/1000Base-X with SFP port2
RS-232 Serial Console portRS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1

LED Indicators

Power Indicator (Power)Green: Power LED x 3
Ring Master Indicator (R.M.)Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)Green: Indicates that the system operating in O-Ring mode
Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault)Amber: Indicate unexpected event occurred
10/100Base-T(X) RJ45 Port IndicatorGreen for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.
Amber for Duplex/Collision indicator: On for full-duplex, Off for half-duplex, Blinking for half-duplex and collision occurred.
100/1000Base-X SFP Port IndicatorGreen for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.

Power

Power consumption (Typ.)8 Watts
Redundant Input powerTriple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
Overload current protectionPresent
Reverse polarity protectionPresent on terminal block

Physical Characteristic

EnclosureIP-30 Aluminum
Dimensions (mm)54.2 (W) x 107.1 (D) x 145.4 (H)mm 2.13 (W) x 4.24 (D) x 5.72 (H) inch
Weight (g)750 g

Technology

Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table8K
Packet buffer Size1Mb
Priority Queues4
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 2.128 µs
Switching bandwidth: 5.6Gbps
Max. Number of Available VLANs: 4096
VLAN ID Range: VID 1 to 4095
IGMP multicast groups: 1024
Port rate limiting: User Define
Security FeaturesEnable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP V1/V2c/V3 encrypted authentication and access security
Software FeaturesSTP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support
Modbus TCP
Network RedundancyO-Ring
O-Chain
MRP
MSTP/RSTP/STP
Warning / Monitoring SystemRelay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support

Fault contact

RelayRelay output to carry capacity of 1A at 24VDC

Reset Function

Reset Buttonless than 5 sec: System reboot, more than 5 sec: Factory default

Environmental

Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-40 to 75°C(-40 to 167°F)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

UserManualVersionRelease DateSize
IES-3082GP User ManualJuly 06, 20232.25 MB

DatasheetVersionRelease DateSize
IES-3082GP DatasheetJuly 06, 20231.62 MB

QIGVersionRelease DateSize
IES-3082GP Quick Installation GuideJuly 06, 2023732.37 kB

FirmwareVersionRelease DateSize
IES-3082GP FirmwareJuly 06, 20231.02 MB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15 B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, VCCI class A, C-Tick class A, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
ShockIEC60068-2-27
Free FallIEC60068-2-31
VibrationIEC60068-2-6
SafetyIEC62368-1
MTBF770345.9824 hrs.
