What Is a VLAN?

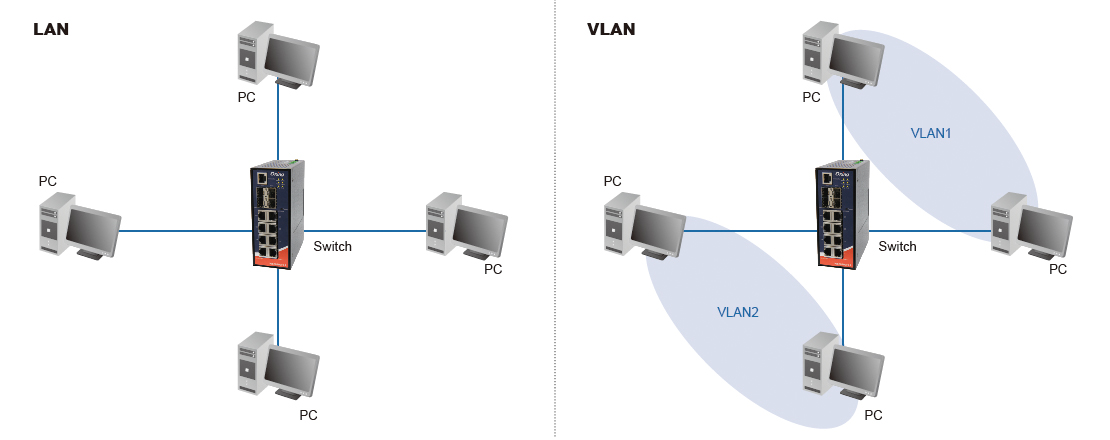

A Virtual Local Area Network (VLAN) is a logically segmented broadcast domain created at the data link layer (OSI Layer 2) of a network. VLANs allow network administrators to partition a single physical network into multiple isolated segments — without requiring separate physical infrastructure. Traffic within a VLAN is isolated from other VLANs unless explicitly routed between them at Layer 3.
In industrial environments, VLANs are a foundational tool for implementing OT network segmentation, controlling broadcast traffic across large distributed systems, and enforcing security zone boundaries between operational technology (OT) and information technology (IT) networks.
Why VLANs Matter in OT and Industrial Networks
Industrial networks differ fundamentally from enterprise IT networks. In a factory, power substation, or railway control system, network disruptions can cause production downtime, equipment damage, or safety incidents. VLANs address three core industrial network challenges:
OT / IT Segmentation
Modern industrial facilities increasingly connect OT systems (PLCs, SCADA, DCS) to enterprise IT networks for data analytics, remote monitoring, and ERP integration. Without segmentation, IT malware, misconfigured devices, or broadcast storms can propagate into the OT domain — disrupting real-time control traffic.
VLANs create a logical boundary between OT and IT, allowing controlled data exchange through firewalls or L3 routing while preventing unauthorized lateral movement. This segmentation is a foundational requirement of frameworks like IEC 62443 Zones and Conduits and the Purdue Model.
Broadcast Containment
In large industrial networks with hundreds of devices, broadcast traffic (ARP requests, discovery protocols) can consume significant bandwidth and cause latency in time-sensitive control communications. Each VLAN defines an independent broadcast domain — broadcasts sent in VLAN 10 (production floor) never reach VLAN 20 (office network) or VLAN 30 (maintenance zone). This containment is critical for deterministic real-time performance in industrial automation.
Machine, Line and Maintenance Network Isolation

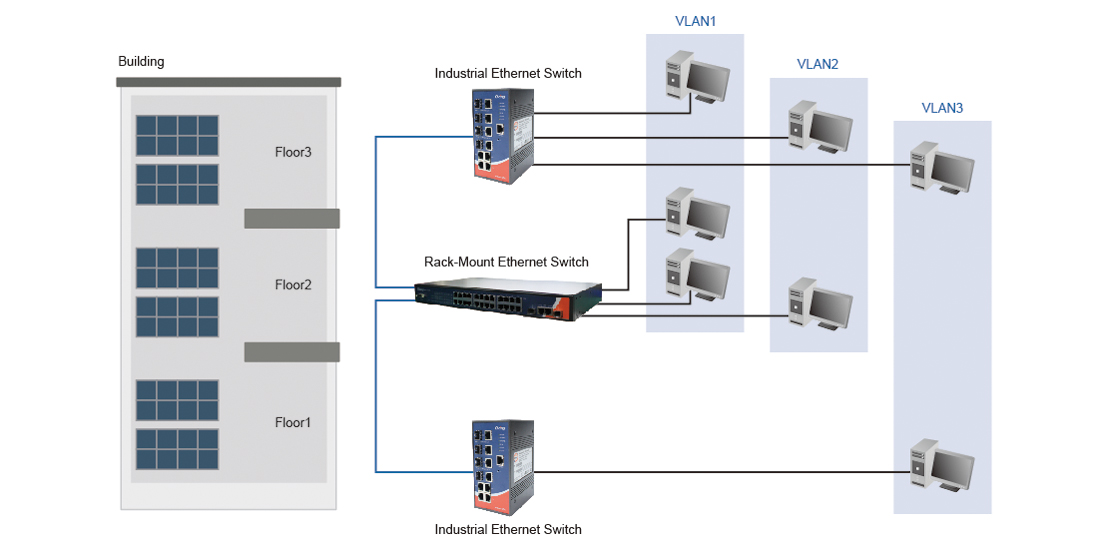

Modern factories use VLANs to logically isolate different production lines, machine groups, and access categories:
- Production VLAN: PLC-to-HMI and controller traffic, isolated for real-time performance.
- Maintenance VLAN: Remote access for engineers and third-party vendors, with limited access to production systems via firewall rules.
- Safety VLAN: Safety Instrumented System (SIS) traffic, completely isolated to prevent interference.
- Management VLAN: Network device management (SNMP, SSH), separated from operational traffic.
How IEEE 802.1Q VLAN Tagging Works

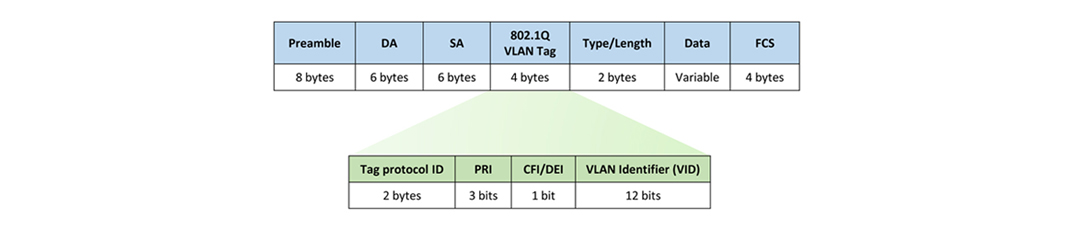

The IEEE 802.1Q standard defines the mechanism for VLAN tagging in Ethernet frames. A 4-byte 802.1Q tag is inserted into the Ethernet frame header between the source MAC address and the EtherType field. This tag contains:
- TPID (Tag Protocol Identifier): 0x8100, identifying the frame as 802.1Q-tagged.
- PCP (Priority Code Point): 3 bits for IEEE 802.1p QoS prioritization (0–7), allowing time-sensitive control traffic to be prioritized over non-critical data.
- DEI (Drop Eligible Indicator): 1 bit indicating whether the frame may be dropped during congestion.
- VID (VLAN Identifier): 12 bits allowing up to 4094 VLANs (VID 0 and 4095 are reserved).
Switches remove the 802.1Q tag on access ports (connecting to end devices) and preserve it on trunk ports (inter-switch links carrying multiple VLANs).
VLAN vs. VXLAN vs. PVLAN
| Feature | VLAN (IEEE 802.1Q) | VXLAN (RFC 7348) | PVLAN (IEEE 802.1Q-2018) |
|---|---|---|---|
| Layer | Layer 2 | Layer 2 over Layer 3 (UDP overlay) | Layer 2 |
| Max Segments | 4094 VLANs | 16 million VNIs | Limited by VLAN count |
| Scope | Single L2 domain / campus | Multi-site / multi-datacenter | Within a single VLAN |
| Traffic Isolation | Between VLANs | Between VNIs across IP fabric | Between ports within same VLAN |
| Industrial Use | Standard OT segmentation — most industrial managed switches support it | Rare in OT; used in converged IT/OT data centers | DMZ-style isolation within a zone, e.g. isolating third-party vendor access devices within a maintenance VLAN |
For most industrial applications, IEEE 802.1Q VLANs are the standard tool. VXLAN is relevant only when OT and IT converge in virtualized infrastructure. PVLANs can be useful for isolating maintenance or third-party devices within a VLAN without creating a separate VLAN for each vendor.
VLAN Segmentation and IEC 62443 Zones & Conduits
The IEC 62443 security standard for Industrial Automation and Control Systems (IACS) defines Security Zones (groups of assets with similar security requirements) and Conduits (controlled communication paths between zones). VLANs are a primary network mechanism for implementing this architecture:
- Each Security Zone maps to one or more VLANs that contain the zone's assets.
- Conduits are implemented as inter-VLAN routing rules enforced by Layer 3 industrial switches or industrial firewalls.
- The demilitarized zone (DMZ) between OT and IT is typically a dedicated VLAN with strict firewall rules in both directions.
- Remote access for maintenance (IEC 62443 defines this as a conduit) is isolated in a separate maintenance VLAN with role-based access control (RBAC).
Combined with 802.1X port authentication on Layer 2 managed switches, VLAN segmentation provides a hardware-enforced security boundary that is much harder for attackers to bypass than software-only controls.
Common Industrial VLAN Use Cases
- Power substations: IEC 61850 process bus and station bus on separate VLANs; engineering access via a third VLAN; IT integration via a fourth. VLAN-based QoS prioritizes GOOSE messages over general traffic.
- Discrete manufacturing: Production line VLAN, robot cell VLAN, quality control VLAN, and maintenance VLAN — each on dedicated IP subnets with inter-VLAN routing controlled by the plant firewall.
- Railway control: Train control network (TCN) VLAN for safety-critical signaling traffic, passenger infotainment VLAN for Wi-Fi and media, and operational VLAN for monitoring and diagnostics — all on the same physical infrastructure but logically isolated.
- Water/wastewater treatment: SCADA VLAN for RTU/PLC communications, historian VLAN for data collection, and corporate VLAN for reporting — with firewall-enforced OT/IT boundary.
Frequently Asked Questions
Q: Do I need a managed switch to implement VLANs?
A: Yes. VLAN support requires at minimum a managed switch with IEEE 802.1Q support. Unmanaged switches do not support VLAN tagging or port assignment. Layer 2 managed industrial switches support full VLAN implementation; Layer 3 managed switches additionally support inter-VLAN routing.
Q: How many VLANs can an industrial managed switch support?
A: IEEE 802.1Q allows up to 4094 VLANs (VIDs 1–4093). In practice, most industrial switches support 256–4094 active VLANs simultaneously. For most factory or substation deployments, 4–20 VLANs are sufficient.
Q: Can VLANs replace a physical firewall for OT/IT segmentation?
A: VLANs provide Layer 2 segmentation and broadcast isolation, but they do not inspect or filter traffic at Layer 3/4. For OT/IT boundary security (as required by IEC 62443), VLANs must be combined with a Layer 3 firewall or industrial DMZ appliance that enforces inter-VLAN routing policies and deep packet inspection.
Q: What is a trunk port in VLAN configuration?
A: A trunk port is a switch port configured to carry traffic from multiple VLANs simultaneously, tagged with 802.1Q headers. Trunk ports are used for inter-switch links and uplinks to routers or firewalls. Access ports, by contrast, carry traffic for a single VLAN and strip the 802.1Q tag before delivering to end devices.
Q: How does 802.1p QoS work with VLANs?
A: IEEE 802.1p defines Priority Code Point (PCP) values (0–7) within the 802.1Q VLAN tag. Higher PCP values (e.g., 7 for network control, 6 for GOOSE in IEC 61850) receive priority queuing in managed switches. This ensures time-sensitive industrial control messages are not delayed by lower-priority traffic within the same VLAN infrastructure.
