Single Pair Ethernet Standards Compared: 10BASE-T1L, 100BASE-T1 and 1000BASE-T1

Single Pair Ethernet (SPE) is not one data rate or one reach. It is a family of Ethernet physical-layer technologies that use a single balanced pair of conductors. The correct standard depends on the application: long-reach industrial field connectivity, short-reach machine or vehicle networking, and the required data rate.

1. The Comparison Table First

Standard	Data Rate	Typical Max Reach	Power over Pair	Typical Focus	IEEE
10BASE-T1L	10 Mb/s	Up to 1,000 m point-to-point	PoDL supported in ecosystem	Process / factory automation, building and field devices	802.3cg
100BASE-T1	100 Mb/s	15 m point-to-point	PoDL ecosystem support depends on implementation	Short-reach embedded / vehicle networks	802.3bw
1000BASE-T1	1 Gb/s	15 m; up to 40 m for defined channel	PoDL ecosystem support depends on implementation	High-bandwidth embedded / vehicle networks	802.3bp

2. 10BASE-T1L: Long-Reach for Process and Factory Automation

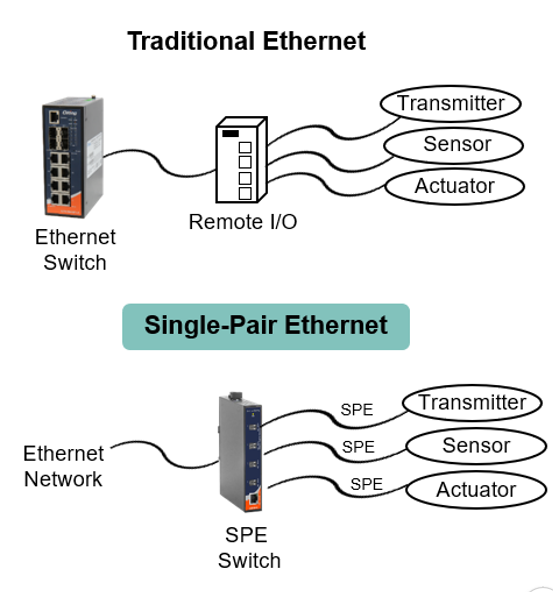

Traditional Ethernet vs Single Pair Ethernet (SPE) connection to field devices — Traditional Ethernet (multi-wire) vs SPE (single-pair) — direct sensor/actuator connection

10BASE-TLM is the SPE variant that most directly addresses industrial field connectivity. Ten megabits per second may look modest compared with Gigabit Ethernet, but field instruments and sensors often need long reach and native Ethernet addressing more than raw throughput.

The long point-to-point reach can reduce the need for intermediate switches or media conversion in applications where legacy field wiring spans hundreds of meters. It also allows Ethernet to move closer to sensors and actuators instead of stopping at the control cabinet.

ORing ITPS-141TX-T1L: An unmanaged industrial SPE switch with four 10BASE-T1L ports and one Fast Ethernet uplink. Supports IEEE 802.3cg, point-to-point transmission up to 1,000 meters and PoDL power delivery.

3. 100BASE-T1 and 1000BASE-T1: Short-Reach, Higher Bandwidth

100BASE-T1 and 1000BASE-T1 trade reach for throughput. They are well suited to compact systems where devices are relatively close together and cabling weight or connector size matters. Automotive and embedded networking are major use cases because a single pair reduces copper and harness complexity.

For industrial buyers, the key lesson is that 'SPE' by itself does not define compatibility. A switch port designed for 10BASE-T1L cannot be assumed to interoperate with 100BASE-T1 or 1000BASE-T1 devices. The PHY standard and connector/interface must be matched.

4. Power over Data Line (PoDL): How SPE Can Power Field Devices

PoDL delivers power and data over the same single pair, similar in concept to PoE but designed for single-pair Ethernet. IEEE 802.3bu is the foundational PoDL amendment, and power capabilities differ by class and implementation.

PoDL can simplify deployment of low-power field devices because the same cable can carry Ethernet communication and DC power. However, power budget, cable length, voltage drop, field-device requirements, hazardous-area rules and connector ratings must all be engineered together.

5. What an SPE Switch Actually Needs to Support

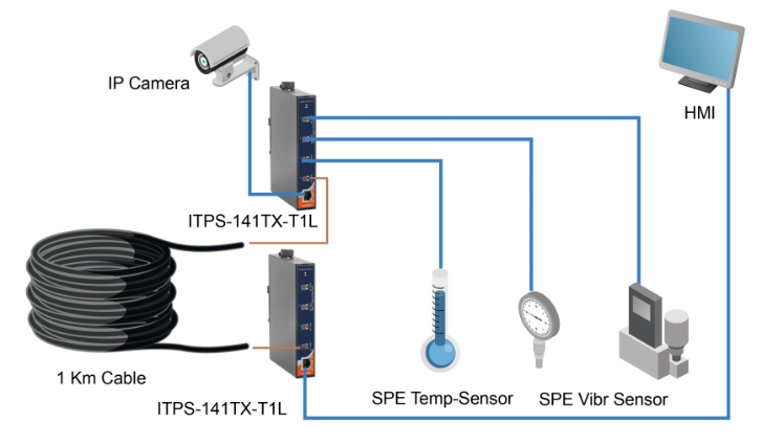

ORing ITPS-141TX-T1L SPE switch connecting to sensors over 1 km cable — ORing ITPS-141TX-T1L: SPE switch with 1 km cable reach to temperature and vibration sensors

The exact BASE-T1 PHY required by the field device (e.g., 10BASE-T1L)
The planned link distance and cabling/channel specification
PoDL if field devices must receive power over the data pair
A conventional Ethernet uplink for connection to PLC, controller, edge computer or plant backbone
Industrial power input, enclosure and environmental ratings for the installation
Diagnostics and management level appropriate to the application

6. SPE vs Fieldbus vs Standard Ethernet

Area	SPE	Traditional Fieldbus	Conventional Ethernet
Protocol model	Native Ethernet/IP ecosystem	Protocol-specific	Native Ethernet/IP ecosystem
Copper pairs	One balanced pair	Often one pair / bus-specific	Typically two or four pairs
Reach	10BASE-T1L up to 1,000 m; others shorter	Depends on fieldbus type	Common copper usually 100 m
Power on same cable	PoDL where supported	Varies by bus/system	PoE where supported
Migration value	Extends Ethernet deeper into the field	Proven installed base	High bandwidth and broad ecosystem

Frequently Asked Questions

Is 10BASE-T1L the same as SPE?

10BASE-T1L is one SPE physical layer. SPE also includes 100BASE-T1 and 1000BASE-T1 with different data rates and reaches.

How far can 10BASE-T1L transmit?

IEEE 802.3cg defines long-reach 10BASE-T1L for point-to-point links up to 1,000 meters under the specified channel conditions.

Can an SPE switch power sensors?

Only if the switch and field device both support PoDL, and the power budget is engineered correctly. Not every SPE port provides power by default.

Can 10BASE-T1L connect directly to 100BASE-T1 devices?

Not by default. They use different PHY standards. Both ends must support the same BASE-T1 interface.

What should I verify before buying an SPE switch?

Confirm the SPE standard, reach, port count, PoDL requirement, uplink interface, power input and environmental rating.
